ZK-1002T 100W+100W 2.0 TPA3116D2 9-24V, Bluetooth Amplifier Board with Treble and Bass Control, Channel Stereo Audio

ZK-1002T 100W+100W Bluetooth Amplifier Board with Treble and Bass Control, 2.0 Channel Stereo Audio Mini Power Amplifier Board, TPA3116D2 Chip DC 9-24V, BT and AUX Inputs for DIY Wireless Speakers

ZK-1002T 100W+100W 2.0 TPA3116D2 9-24V, Bluetooth Amplifier Board with Treble and Bass Control, Channel Stereo Audio

We hope to let more people experience audio equipment with good value for money, so that our customers can enjoy music and life! At the same time, we are constantly developing new products, more people to bring more cost-effective audio equipment, and provide better solutions for your home audio/video system. 4 Channel 300W+300W 100W+100W 50W+50W+100W Bluetooth and AUX input, and Bluetooth mode is connected first. No matter which mode Bluetooth can be connected, and Bluetooth mode supports automatic connection. When Bluetooth is not connected and AUX is plugged in, it is AUX mode. Note: When using AUX mode, you need to make sure the Bluetooth connection of this module has been disconnected. The higher the voltage, the higher the current, the more power output. If the voltage is too low sound amplification can easily cause sound distortion, if the current is too small to bring up the speaker will pull down the voltage, work properly or poor sound quality. Recommended use 18V 19V 24V power supply, current 5A or more. If you only have 9V 12V or 1A 2A power supply, can also be used but the power is small, pay attention to the use of the volume to the maximum may be distorted and affect the sound quality.

Brand: JIAATGA

bass, chip 24v, stereo, bass control, board, 1002t 100w, diy wireless, theater, chip, audio mini, home theater, board treble Electronics Home Audio Home Theater Receivers & Amplifiers Amplifiers

Key Features

• ✓ ZK-1002T Bluetooth 5.0 amplifier board comes with 2.0 channel stereo,Chips:TPA3116D2,THD 0.1%. Wide Voltage Input DC: 9-24V
• ✓ Protective Function:This power amplifier board is designed with over-voltage protection, under-voltage protection, over-heat protection and short-circuit protection

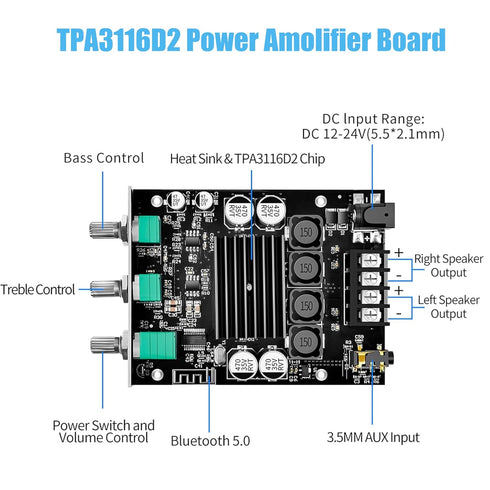

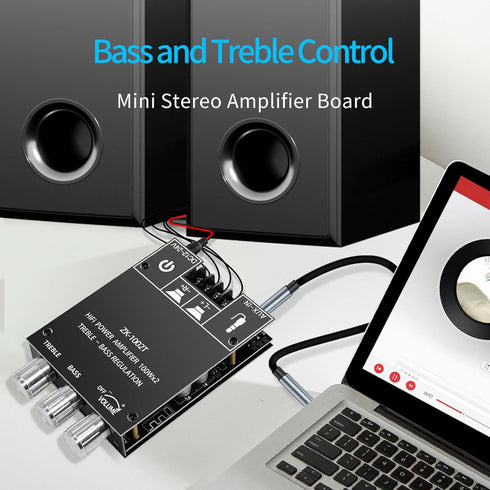

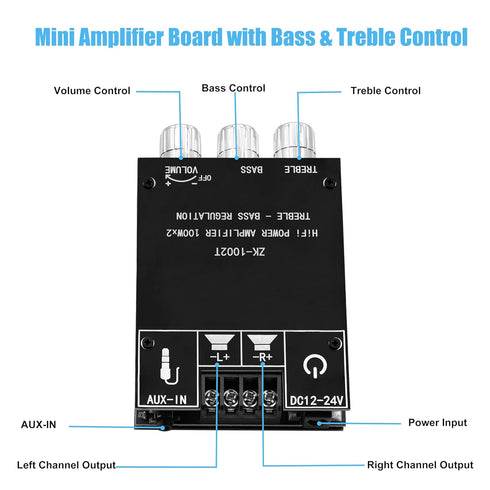

• ✓ Treble and Bass Control:This digital audio amplifier board with independent treble and bass knob,the treble and bass can be adjusted by these knobs, no need to using the player or speaker

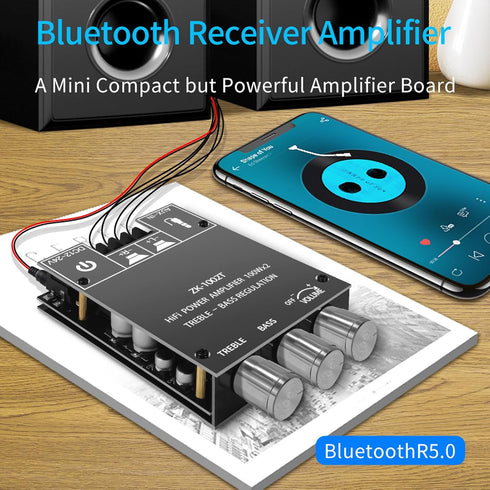

• ✓ Bluetooth+AUX Input:100W+100W Bluetooth 5.0 Audio Amplifier Board, Bluetooth+AUX audio dual input, 2.0 channel stereo output, with AM interference suppression function. Note: When using AUX mode, please confirm that the Bluetooth connection of this module has been disconnected
• ✓ Note: In the case of audio input and power supply voltage/current is enough to have enough output power.The higher the supply voltage, the higher the output power.The lower the speaker impedance, the higher the output power.Please make sure that the power of the adapted power supply is greater than the actual working power of the amplifier

Product Details

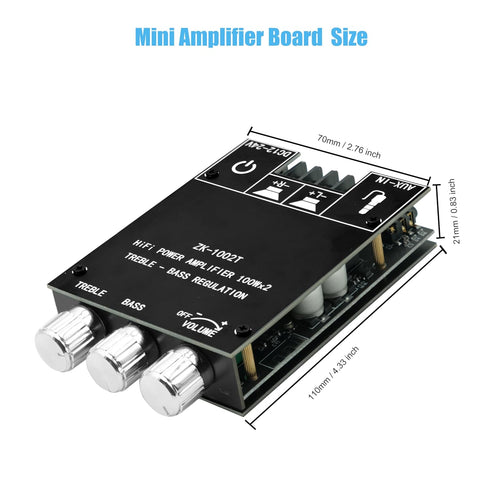

• ✓ Package Dimensions: 5.35 x 3.78 x 2.01 inches
• ✓ Item Weight: 5.9 ounces
