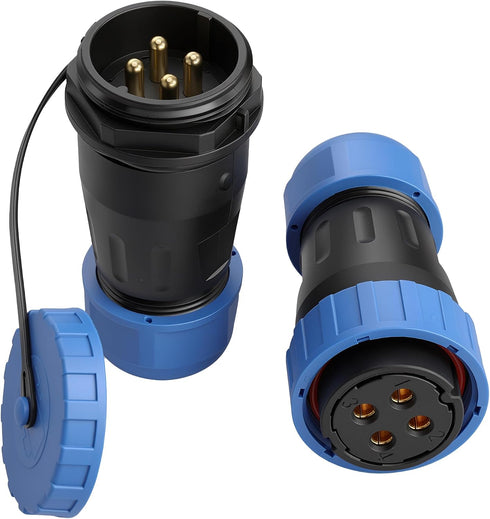

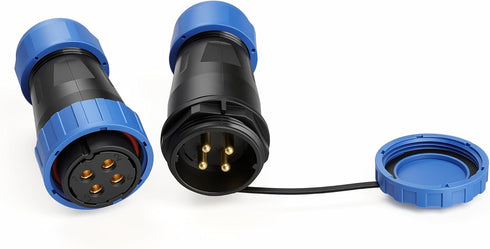

ZBLZGP TY28 IP68 4 Heavy Duty Docking Connector, Rated Pin, Ideal for Outdoor Lighting, Solar Power Systems

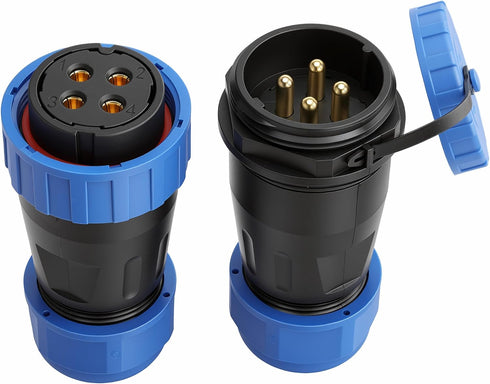

Heavy Duty TY28 Docking Connector, IP68 Rated 4 Pin, Ideal for Outdoor Lighting, Solar Power Systems & Industrial Control Cabinets

ZBLZGP TY28 IP68 4 Heavy Duty Docking Connector, Rated Pin, Ideal for Outdoor Lighting, Solar Power Systems

Detailed Product Description of TY28 Series Connectors The TY28 series connectors are meticulously crafted professional - grade products designed to meet diverse electrical connection requirements. They offer reliable and efficient connection solutions across various fields, including industrial, automotive, marine, and renewable energy sectors. Product Features The TY28 series connectors excel in environmental adaptability. With an IP68 - rated waterproof and dustproof design, they can operate stably in harsh conditions such as heavy rain, sandstorms, and high humidity environments. The housing is made of high grade corrosion resistant materials, effectively withstanding the erosion of seawater, chemicals, and mechanical impacts, ensuring long term durability. In terms of connection stability, the unique screw crimp termination technology combined with the threaded coupling mechanism not only achieves a tight and secure electrical connection but also maintains stable signal and power transmission in high vibration environments, effectively preventing loosening and poor contact. Regarding installation convenience, their user - friendly design significantly reduces the difficulty of operation, allowing even first - time users to complete assembly quickly. Moreover, the compact and sleek enables them to fit easily into various devices and scenarios with limited space. The simple disassembly structure also makes maintenance and repair work more efficient. Additionally, the products use high quality insulating materials and copper contacts, providing excellent electrical conductivity. They enable efficient power and data transmission while effectively preventing safety hazards such as electric leakage and short circuits. They also feature high current - carrying capacity and heat - resistance, meeting the requirements of various complex working conditions. Product Series Details The TY28 series boasts a rich product line, with its core strength lying in diverse pin - count configurations, ranging from 2 to 9 core options. The 2 core connectors are often used for simple power positive and negative connections, suitable for devices with basic connection requirements. 3 core connectors can meet scenarios where some basic signals and power need to be transmitted simultaneously. 4 core and 5 core connectors are suitable for complex systems that require the simultaneous transmission of multiple signals and power, such as industrial automation control equipment and intelligent communication terminals. Users can select flexibly according to actual project needs, ensuring a perfect match between the connector and the device and fully leveraging its functional advantages. Product Specifications In terms of electrical performance specifications, the TY28 series connectors have a wide range of current ratings, with a maximum of up to 45A, capable of meeting the power demands of various loads, from low power electronic devices to high - power industrial machinery. The voltage ratings offer multiple options to adapt to the voltage standards of different electrical systems. For mechanical specifications, the housing dimensions of the connectors are carefully designed. While ensuring a compact and reasonable internal structure, the external interfaces comply with industry wide common standards, facilitating easy connection with other devices. The threaded connection part adopts standard specifications with moderate torque, ensuring both a secure connection and easy disassembly. In terms of protection level, the entire series is equipped with IP68 protection as standard, completely preventing dust ingress and enabling normal operation under certain water pressure and immersion time. Regarding material specifications, the housing is made of high strength engineering plastics or alloy materials, with excellent wear resistance and anti aging properties. The internal contacts are made of high purity copper and undergo special surface treatment to enhance conductivity and oxidation resistance. The insulating materials are high - quality flame retardant and high voltage resistant materials, comprehensively ensuring the safety and reliability of the products.

Brand: ZBLZGP

duty, pin, industrial, ip68 rated, outdoor lighting, solar, rated, audio accessories, connector ip68, accessories, lighting solar, home audio Electronics Home Audio Home Audio Accessories Connectors & Adapters

Key Features

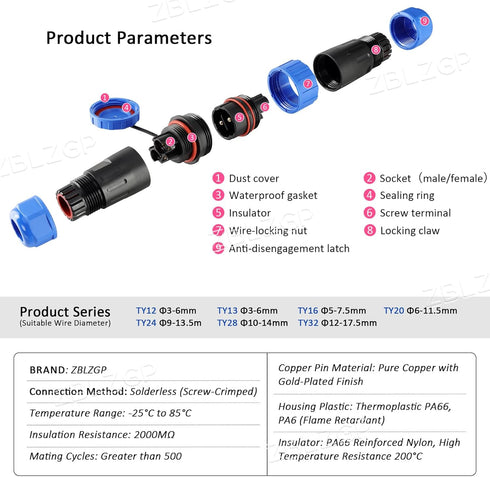

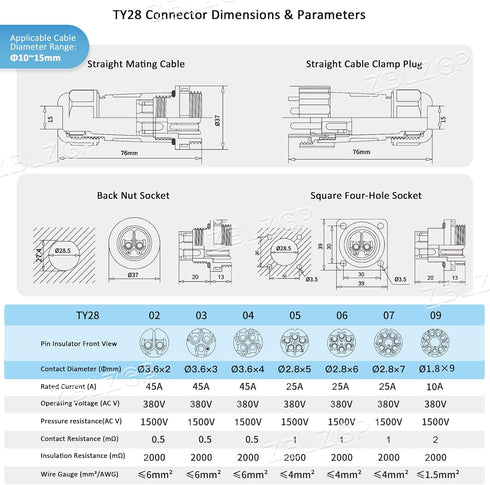

• Multiple Sizes and Specifications AvailableTo meet the diverse needs of different applications, the TY28 Docking connector is available in multiple sizes and specifications2-9 core. Rated Current / Voltage : AC 380V/45A;Withstand Voltage: 1500V (AC); Contact Resistance: 0.5M; Cable specifications: 6mm/10AWG;Insulation resistance: 2000M;Contact Diameter Number: 3.6mm x 4.
• Efficient Power and Signal TransmissionThe TY28 Docking connector is engineered to provide seamless power and signal transmission between two cables. Its optimized internal structure and high quality contact materials ensure minimal resistance, resulting in efficient power transfer and clear signal delivery. Ideal for applications where reliable connectivity is essential, such as power distribution systems, communication networks, and electronic devices.
• Secure and Reliable ConnectionFeaturing a robust crimp style connection mechanism, the TY28 Docking connector creates a secure and permanent bond between the cables. The crimping process tightly compresses the connector around the cables, preventing any chance of loose connections or signal interference. This makes it suitable for use in high vibration and high stress environments, like automotive engines, industrial machinery, and aircraft wiring.
• Weather Resistant and DurableBuilt with weather resistant materials, the TY28 Docking connector can withstand harsh environmental conditions. It is resistant to moisture, corrosion, and temperature variations, ensuring long term performance and reliability. Whether used outdoors in rain, snow, or extreme heat, or in industrial settings with exposure to chemicals and dust, this connector will maintain its integrity.

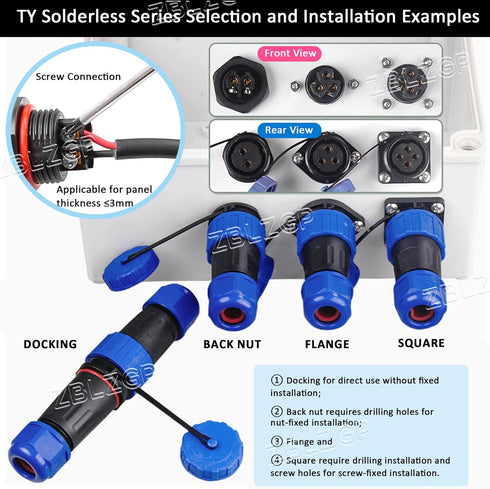

• Easy Installation for DIY and ProfessionalsThe TY28 Docking connector is designed for easy installation. With simple instructions and a user friendly design, both professional installers and DIYers can quickly and accurately connect cables. The connector's size and shape are also optimized for easy handling, reducing the risk of installation errors and saving time during the installation process.

Product Details

• Color: Docking Inverted
