xicoolee OV9726 1MP 70 Win7 Win8 4.0 USB Camera Module Degrees Lens Fixed Focus Camera for Win XP Vista Mac Linux

USB Camera Module OV9726 1MP 70 Degrees Lens Fixed Focus Camera for Win XP Win7 Win8 Vista Mac Linux Android 4.0 Jetson Nano Support OTG Standard UVC Protocol Manual Focusing

xicoolee OV9726 1MP 70 Win7 Win8 4.0 USB Camera Module Degrees Lens Fixed Focus Camera for Win XP Vista Mac Linux

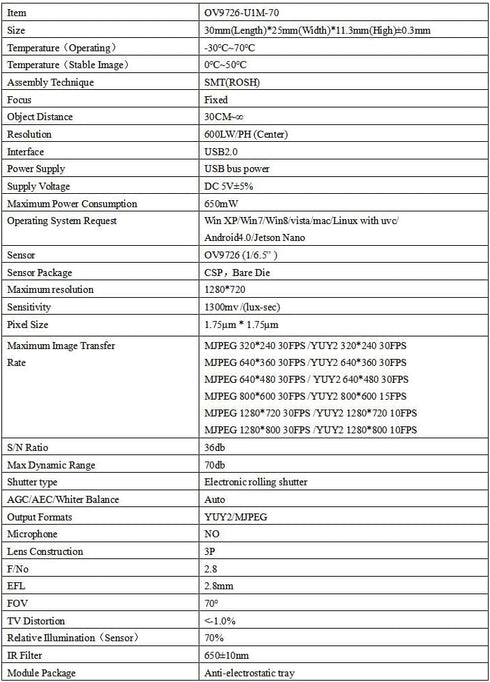

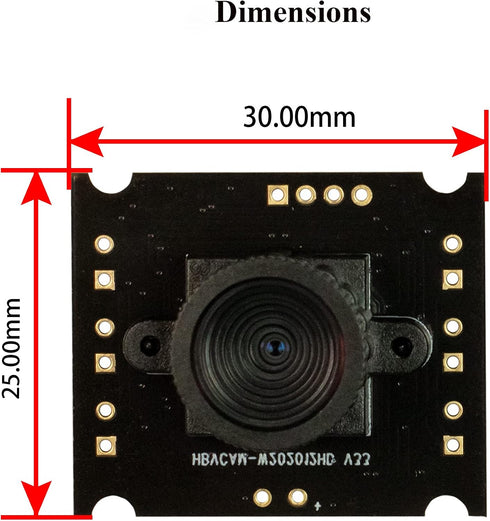

Overview: This USB Camera Module is equipped with the CMOS image sensor OV9726 produced by OmniVision Technologies. The HD camera is onboard 1 Megapixel, onboard USB2.0 interface, which can adjust the focusing distance of shooting and adopt the fixed focusing mode (manual focusing), suitable for Win XP/Win7/Win8/vista/mac/Linux with uvc/Android4.0/Jetson Nano operating system. Specifications: Size: 30mm(Length)*25mm(Width)*11.3mm(High)0.3mm Temperature (Operation): -3070 Temperature(Stable Image): 050 Assembly Technique: SMT(ROSH) Focus: Fixed Object Distance: 30cm-infinity Resolution: 600LW/PH(Center) Interface: USB 2.0 Power Supply: USB bus power Supply Voltage: DC 5V5% Maximum Power Consumption : 650mW Operating System Request: Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0/Jetson Nano Sensor: OV9726(1/6.5") Sensor Package: CSP, Bare Die Maximum resolution: 1280*720 Sensitivity: 1300mv/(lux-sec) Pixel Size: 1.75m * 1.75m S/N Ratio: 36db Max Dynamic Range: 70db Shutter type: Electronic rolling shutter AGC/AEC/Whiter Balance: Auto Output Formats: YUY2/MJPEG Microphone: No Lens Construction: 3P F/No: 2.8 EFL: 2.8mm FOV: 70 TV Distortion: <1.0% Relative Illumination(Sensor): 70% IR Filter: 65010nm Package: Anti-electrostatic tray Maximum Image Transfer Rate: MJPEG 320x240 30FPS /YUY2 320x240 30FPS MJPEG 640x360 30FPS /YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 800x600 30FPS /YUY2 800x600 15FPS MJPEG 1280x720 30FPS /YUY2 1280x720 10FPS MJPEG 1280x800 30FPS /YUY2 1280x800 10FPS Package Contents: 1.OV9726-U1M-70 (fixed focus) x1 2.USB to HX1.25-5P connecting cable x1

Brand: xicoolee

ov9726 1mp, protocol manual, mac, fixed, computers accessories, focusing, win8 vista, accessories computer, otg standard, degrees lens, win, otg Electronics Computers & Accessories Computer Accessories & Peripherals Audio & Video Accessories Webcams & VoIP Equipment

Key Features

• ✓ The mini camera board adopts CMOS image sensor OV9726, supporting ISP (image signal processing) functions
• ✓ This usb camera module is equipped with high resolution 1mp 1280x720 lens, high-definition 70 field of view camera, effective focal length: 2.8mm
• ✓ This OV9726 fixed focus camera module adopts high speed USB 2.0 interface, directly plug and play, supports OTG protocol, standard UVC protocol
• ✓ The OV9726 USB camera module can adjust the focusing distance of shooting and adopt the fixed focusing mode ( can be manual focus adjustment)

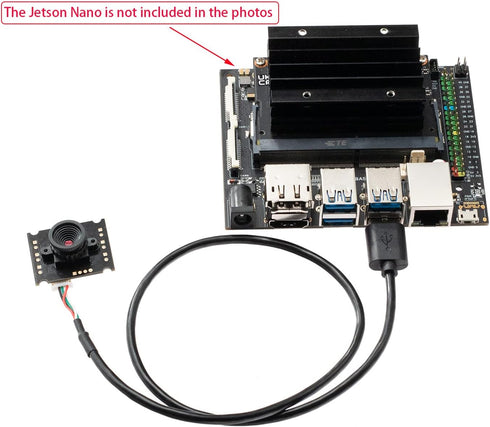

• ✓ The HD USB camera module supports Win XP/Win7/Win8/vista/mac/Linux with uvc/Android 4.0/Jetson Nano operating systems, which can be customized and is highly compatible

Product Details

• ✓ Model Number: OV9726-U1M-70
