WWZMDiB 6Pcs 3-Wire IR Infrared Sensor Reflective Photoelectric Module for Arduino

WWZMDiB 6Pcs IR Infrared Sensor 3-Wire Reflective Photoelectric Module for Arduino

WWZMDiB 6Pcs 3-Wire IR Infrared Sensor Reflective Photoelectric Module for Arduino

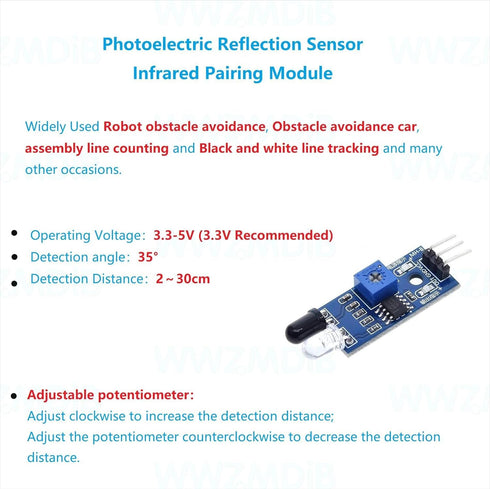

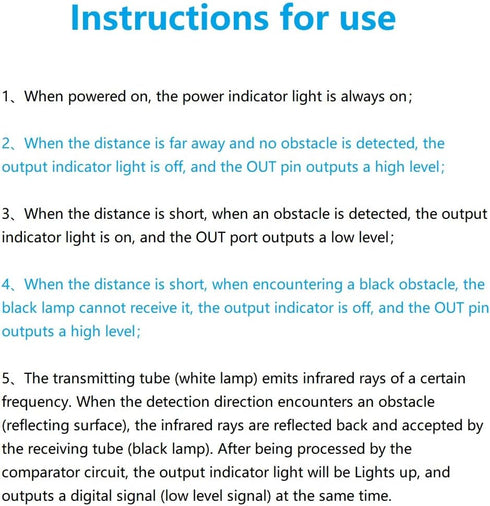

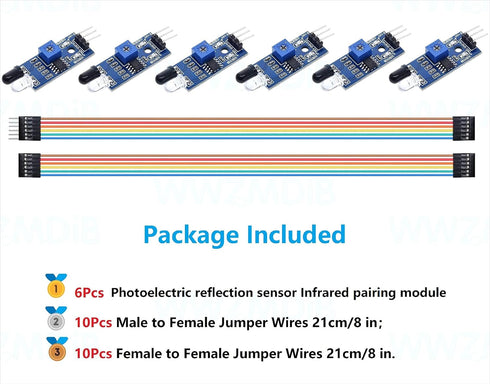

WWZMDiB 6Pcs IR Infrared Obstacle Avoidance Sensor Module 3-Wire Reflective Photoelectric for Arduino Smart Car Robot Photoelectric reflection sensor Infrared pairing moduleWidely Used Robot obstacle avoidance, obstacle avoidance car, assembly line counting and black and white line tracking and many other occasions. Operating Voltage3.3-5V (3.3V Recommended) Detection angle35 Detection Distance230cm Adjustable potentiometerAdjust clockwise to increase the detection distance; adjust the potentiometer counterclockwise to decrease the detection distance. Package Included6Pcs Photoelectric reflection sensor Infrared pairing module 10Pcs Male to Female Jumper Wires 21cm/8 in 10Pcs Female to Female Jumper Wires 21cm/8 in. Instructions for use 1When powered on, the power indicator light is always on 2When the distance is far away and no obstacle is detected, the output indicator light is off, and the OUT pin outputs a high level 3When the distance is short, when an obstacle is detected, the output indicator light is on, and the OUT port outputs a low level 4When the distance is short, when encountering a black obstacle, the black lamp cannot receive it, the output indicator is off, and the OUT pin outputs a high level 5The transmitting tube (white lamp) emits infrared rays of a certain frequency. When the detection direction encounters an obstacle (reflecting surface), the infrared rays are reflected back and accepted by the receiving tube (black lamp). After being processed by the comparator circuit, the output indicator light will be Lights up, and outputs a digital signal (low level signal) at the same time.

Brand: WWZMDiB

photoelectric, wire, photoelectric module, computers accessories, accessories computer, 6pcs infrared, module arduino, sensor, arduino electronics, computer, reflective, computer components Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ IR Infrared SensorWidely Used Robot obstacle avoidance, obstacle avoidance car, assembly line counting and black and white line tracking and many other occasions.
• ✓ Operating Voltage3.3-5V (3.3V Recommended)
• ✓ Detection angle35
• ✓ Detection Distance230cm
• ✓ Adjustable potentiometerAdjust clockwise to increase the detection distance; adjust the potentiometer counterclockwise to decrease the detection distance.

Product Details

• ✓ Item Weight: 0.03 Kilograms
• ✓ Model Number: IR Obstacle Avoidance Sensor Module
• ✓ Color: White
• ✓ Power Source: Corded Electric
