Wideband Low Noise Amplifier Bias Tee Powered

Wideband Low Noise Amplifier Bias Tee Powered

Wideband Low Noise Amplifier Bias Tee Powered

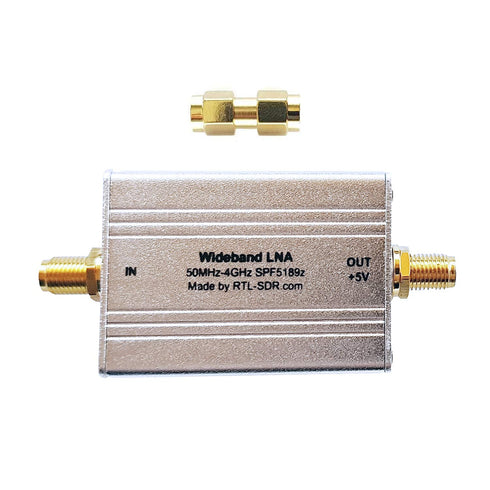

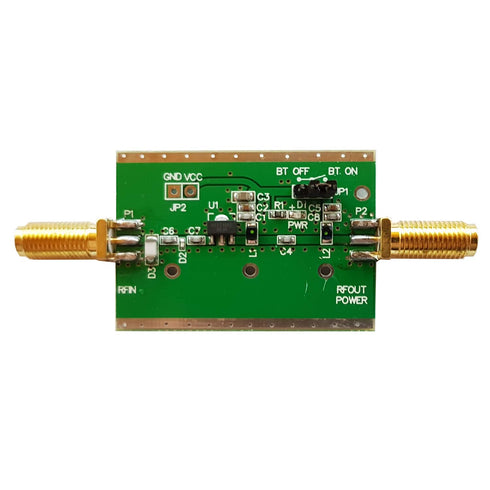

Includes 1x RTL-SDR Blog Wideband LNA (Bias Tee Powered) and 1x SMA male to SMA male adapter. This is a general purpose SPF5189Z based wideband LNA. Works from 50 MHz to 4 GHz with a noise figure of less than 1dB and a gain of 18.7dB @ 900 MHz. Requires bias tee power, but there is an internal header which can be used to switch to external power, although you won't be able to use the enclosure in that case. If you're looking to improve ADS-B performance we recommend our Triple Filtered ADS-B LNA. Please note again: Requires 3 - 5v bias tee power. The RTL-SDR V3 provides 4.5v so is suitable. IMPORTANT ESD NOTE: If you use this LNA placed close to an outdoor antenna, please ensure that your antenna is sufficiently grounded. There is a fast ESD diode, and GDT on the LNA PCB for dual protection, but if the antenna is not grounded the effectiveness of ESD protection components will be severely reduced, and you run the risk of damaging the LNA.

Key Features

• ✅ Frequency range of 50 MHz to 4000 MHz
• ✅ Noise figure = 0.6dB @ 900 MHz
• ✅ OIP3 = 39.5 dBm @ 900 MHz, P1 Saturation = 22.7 dBm @ 1960 MHz
• ✅ Gain = 18.7 dB @ 900 MHz
• ✅ Bias Tee Powered (Needs 3-5v bias tee power)
