Weewooday 10 Am312 2.7v 12v Pieces Pir Sensor Mini Pir Motion Sensor Infrared Human Body Pyroelectric Infrared Motion

Weewooday 10 Pieces Am312 Pir Sensor Mini Pir Motion Sensor Infrared Human Body Pyroelectric Infrared Motion Module 2.7v to 12v

Weewooday 10 Am312 2.7v 12v Pieces Pir Sensor Mini Pir Motion Sensor Infrared Human Body Pyroelectric Infrared Motion

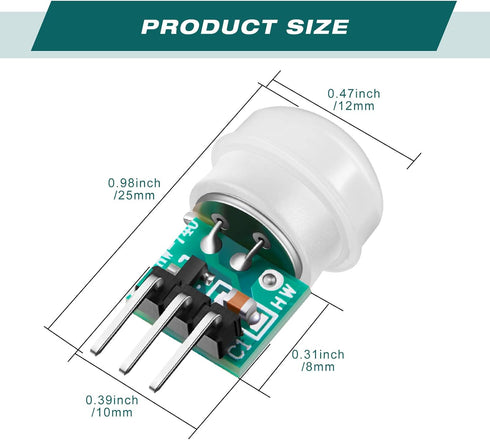

Features: The trigger mode of these mini human sensor modules: After high sensing output, during the delay time, if a human body is active within its sensing range, its output will keep high until the delay after the people leaves, then it will become low. The human sensor module will prolong a delay time cycle automatically after detecting every activity of the human body, and the time of the next activity is applied as the starting point for the delay time. Specifications: Product model: AM312 Working voltage: direct current 2.7V - 12V Static power consumption: <0.1mA Delay time: 2 seconds Blocking time: 2 seconds Trigger mode: repeatable Sensing range: less than or equal to 100 degrees cone angle, 3 - 5 m (depend on the specific lens) Working temperature: -20 degrees Celsius to +60 degrees Celsius PCB size: approx. 10 x 8 mm/ 0.39 x 0.31 inch Total size: approx. 25 x 12 x 12 mm/ 0.98 x 0.47 x 0.47 inch Package includes: 10 x Mini human sensor modules Notes: Please keep away from little kids. Manual measurement, please allow slight errors on size.

Brand: Weewooday

detectors, surveillance motion, am312, 12v, sensor, pyroelectric, human, electronics security, pir, weewooday, mini, electronics Electronics Security & Surveillance Motion Detectors

Key Features

• ✓ High sensitivity: the AM312 human sensor module is a digital intelligent automatic control product that is based on passive body infrared technology, which is highly sensitive and reliable to use, they are widely applied for all kinds of automatic induction electrical equipment
• ✓ Nice performance: these human sensor modules are small in size, and feature low power consumption and nicely anti-interference, with internal digital signal processing and direct high and low level output

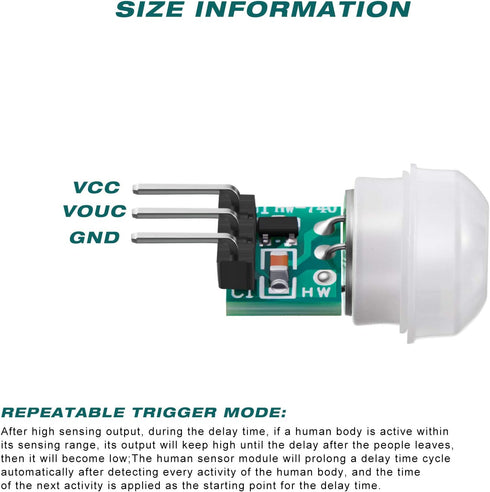

• ✓ Repeatable trigger mode: after high sensing output, during the delay time, if a human body is active within its sensing range, its output will keep high until the delay after the people leaves, then it will become low
• ✓ Specific parameters: Working voltage: DC 2.7V - 12V; Static power consumption: <0.1mA; Delay time: 2 seconds, blocking time: 2 seconds; Trigger mode: repeatable; Sensing range: less than or equal to 100 degrees cone angle, 3 - 5 m (depend on the specific lens); Working temperature: -20 degrees Celsius to +60 degrees Celsius

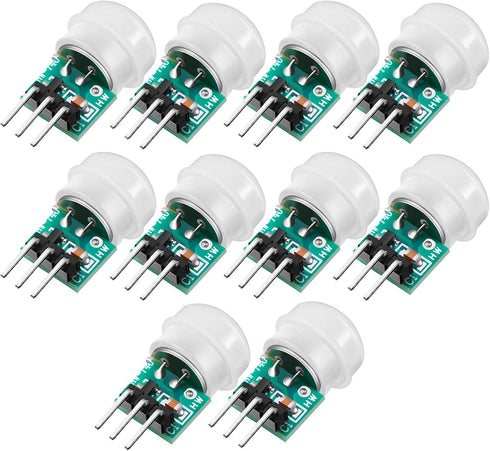

• ✓ What you will receive: there are 10 pieces of PIR motion sensor detector modules in the package, enough quantity to meet your daily needs

Product Details

• ✓ Item Weight: 1.58 Ounces
• ✓ Model Number: Weewooday-11672
• ✓ Color: White
• ✓ Power Source: Battery Powered
