WayPonDEV R3 R4 (BE14 Wifi7 Banana Pi / Universal Cooling System Professional Thermal Solutions for All Major BPI

Banana Pi R3 / R4 Universal Cooling System Professional Thermal Solutions for All Major BPI Development Boards (BE14 Wifi7 Fan)

WayPonDEV R3 R4 (BE14 Wifi7 Banana Pi / Universal Cooling System Professional Thermal Solutions for All Major BPI

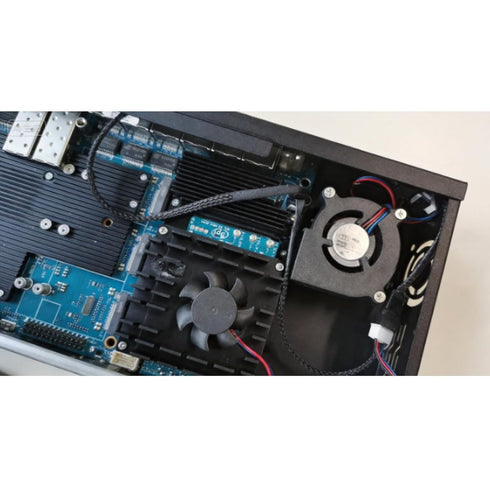

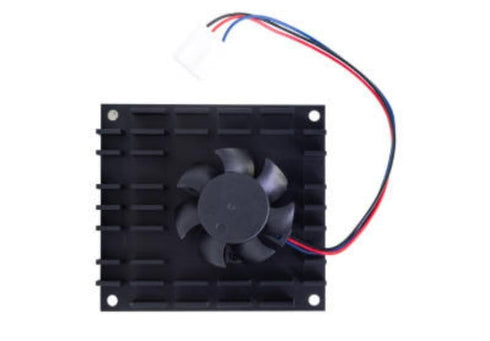

Product Description The BPI Cooling Fan & Heatsink Series provides integrated thermal management solutions for Banana Pi R3, R4 Pro and R4 Lite. Whether you are building a high-performance router, network edge node, or laboratory development platform, there is a corresponding cooling option available. Please select the appropriate variation based on your board model and usage scenario: Variation 1 (R3 Active Air Cooling): Designed for BPI R3 (MT7986A), aluminum extrusion heatsink + PWM fan combination, covering SoC, memory and key chips; connected through onboard fan interface (such as XH2.54 4PIN), supports temperature-controlled start to balance performance and quietness. Variation 2 (R4 Universal PWM Fan): A universal PWM fan suitable for BPI R3 and R4 Pro/R4 Lite, compatible with onboard fan interfaces (XH2.54/VH3.96, etc.). If stronger cooling is needed, it can be combined with R3 aluminum extrusion heatsink (Variation 1); or used with 4010HM/5020HA cooling components (Variation 3) on R4 Pro to achieve on-demand active cooling. Variation 3 (R4 Pro Active Cooling): Specifically designed for BPI R4 Pro (MT7988A Filogic 880), adapting to 4010HM/5020HA active cooling solution, which can efficiently handle continuous loads in high-performance networking and WiFi7 scenarios, helping to maintain stable operating temperature and performance output. Variation 4 (R4 Lite Cooling): Includes R4 Lite aluminum heatsink and BE14 WiFi7 module heatsink, suitable for passive cooling scenarios pursuing quietness and low power consumption. For BE14 modules, it is recommended to use appropriate thermal pads and ensure sufficient contact for better heat dissipation effects (especially important when chip operating temperature is high). PWM Fan and Temperature Control Description: BPI R3 and R4 series support PWM speed control fans. In systems such as OpenWrt, you can set temperature thresholds (such as about 45C) to automatically start and stop the fan, achieving a balance between on-demand cooling and quiet operation. Application Scenarios: Home and enterprise routers, soft router development, network edge computing and IoT gateways, laboratory prototypes and project verification, media centers and lightweight servers, etc. Important Notes/Compliance Tips (Optional)

Brand: WayPonDEV

car vehicle, car, universal, professional thermal, all, cooling system, banana universal, fan, thermal solutions, be14, universal cooling, major bpi Electronics Car & Vehicle Electronics Vehicle Electronics Accessories Vehicle Audio & Video Installation Amplifier Installation

Key Features

• ✅ [Precise Compatibility, Board-Specific] Designed for BPI R3, RPI R4 Pro, R4 Lite development boards with 4 cooling model options: Variation 1 (R3 aluminum heatsink + PWM fan), Variation 2 (R4 universal PWM fan), Variation 3 (R4 Pro: 4010HM/5020HA active cooling), Variation 4 (R4 Lite aluminum heatsink). Please select the corresponding variation according to your board model.
• ✅ [PWM Smart Speed Control, Quiet Operation] BPI R3 and R4 series support PWM fan speed control, achieving on-demand quiet cooling; by default, the fan usually starts automatically when CPU temperature reaches about 45C, providing a quieter operating environment.
• ✅ [Flexible Active and Passive Combinations] Variation 1 and Variation 3 are active air cooling solutions, suitable for high-load and continuous operation scenarios; Variation 4 provides passive aluminum heatsinks (for R4 Lite board) , suitable for scenarios that pursue quietness and low power consumption.
• ✅ [Heat and Durability Crafted] Adopting aluminum alloy and optimized fin design, combined with appropriate thermal interface, achieves efficient heat conduction and surface heat dissipation; Variation 3's 4010HM/5020HA fan is suitable for R4 Pro's MT7988A platform, matching more reliable thermal management
• ✅ [Easy Installation, Expansion Friendly] Includes necessary installation accessories and connection cables (specific accessories depend on each variation), convenient to connect with onboard fan interfaces (such as BPI R3's XH2.54 4PIN, VH3.96 2PIN, etc.); does not interfere with GPIO, USB and other interfaces and standard case or rack deployment.

Product Details

• ✅ Included Components: Fan*1
