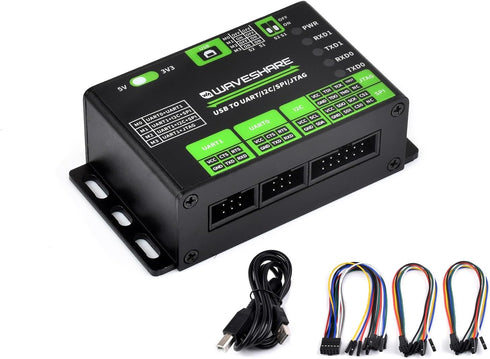

waveshare USB to UART/I2C/SPI/JTAG Converter, Supports USB to 2-ch UART, USB to 1-ch UART + 1-ch I2C + 1-ch SPI, or USB

waveshare USB to UART/I2C/SPI/JTAG Converter Support USB to 2-ch UART, or USB to 1-ch UART + 1-ch I2C + 1-ch SPI, or USB to 1-ch UART + 1-ch JTAG, Support Win11/10/8.1/8/7, Linux etc. Multi System

waveshare USB to UART/I2C/SPI/JTAG Converter, Supports USB to 2-ch UART, USB to 1-ch UART + 1-ch I2C + 1-ch SPI, or USB

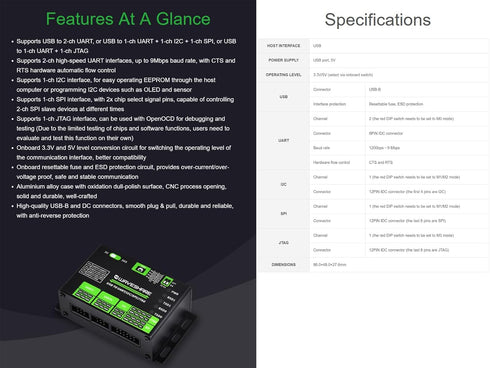

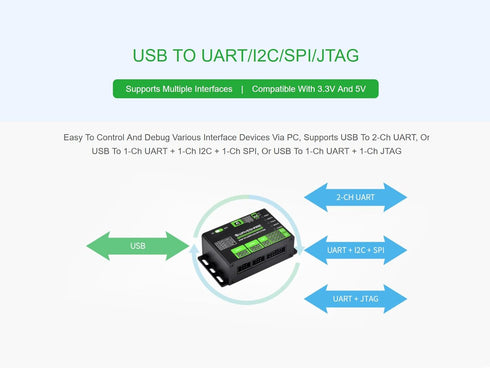

Introduction USB To UART/I2C/SPI/JTAG Converter, Supports Multiple Interfaces, Compatible with 3.3V and 5V, Multiple Protection Circuits, Multiple Systems Support, Aluminum Alloy Case, Wall-mount & Rail-mount Support Features --Supports USB to 2-ch UART, or USB to 1-ch UART + 1-ch I2C + 1-ch SPI, or USB to 1-ch UART + 1-ch JTAG --Supports 2-ch high-speed UART interfaces, up to 9Mbps baud rate, with CTS and RTS hardware automatic flow control --Supports 1-ch I2C interface, for easy operating EEPROM through the host computer or programming I2C devices such as OLED and sensor --Supports 1-ch SPI interface, with 2x chip select signal pins, capable of controlling 2-ch SPI slave devices at different times --Supports 1-ch JTAG interface, can be used with OpenOCD for debugging and testing (Due to the limited testing of chips and software functions, users need to evaluate and test this function on their own) --Onboard 3.3V and 5V level conversion circuit for switching the operating level of the communication interface, better compatibility --Onboard resettable fuse and ESD protection circuit, provides over-current/over-voltage proof, safe and stable communication --Aluminium alloy case with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted --High-quality USB-B and DC connectors, smooth plug & pull, durable and reliable, with anti-reverse protection Package Content USB TO UART/I2C/SPI/JTAG x1 USB type A to type B cable ~1.2m x1 12PIN cable ~20cm x1 6PIN cable ~20cm (2PCS) x1 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

Key Features

• ✅ USB to UART/I2C/SPI/JTAG converter supports Win7/8/8.1/10/11, Linux, etc. multi system, compatible with 3.3V and 5V, easy to control and debug various interface devices via PC, suitable for college students, technical engineers, electronic enthusiasts, or DIY makers for learning and debugging
• ✅ Supports 2-ch high-speed UART interfaces, up to 9Mbps baud rate, with CTS and RTS hardware automatic flow control; Supports 1-ch I2C interface, for easy operating EEPROM through the host computer or programming I2C devices such as OLED and sensor
• ✅ Supports 1-ch SPI interface, with 2x chip select signal pins, capable of controlling 2-ch SPI slave devices at different times; Supports 1-ch JTAG interface, can be used with OpenOCD for debugging and testing (Due to the limited testing of chips and software functions, users need to evaluate and test this function on their own)
• ✅ Onboard 3.3V and 5V level conversion circuit for switching the operating level of the communication interface, better compatibility. Onboard resettable fuse and ESD protection circuit, provides over-current/over-voltage proof, safe and stable communication
• ✅ High-quality USB-B and DC connectors, smooth plug & pull, durable and reliable, with anti-reverse protection; Aluminium alloy case with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted
