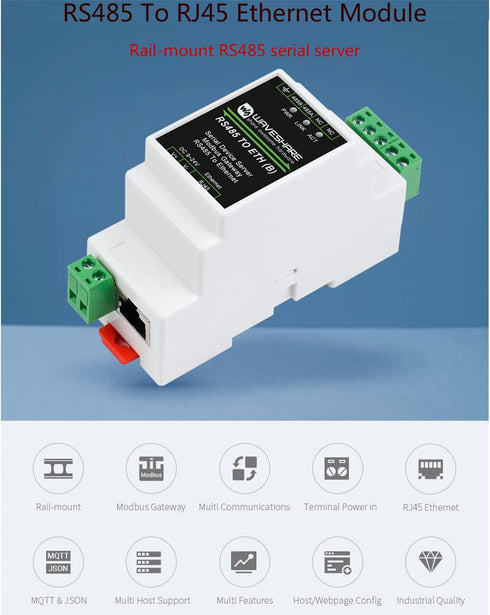

waveshare RS485 RJ45 Communication Ethernet Industrial Serial Server to Ethernet Module, TCP/IP to Serial, Support

waveshare Ethernet Industrial Serial Server RS485 to RJ45 Ethernet Module, TCP/IP to Serial, Support Rail-Mount/Modbus Gateway, TCP Server/TCP Client/UDP Mode/UDP Multicast Multi Communication Modes

waveshare RS485 RJ45 Communication Ethernet Industrial Serial Server to Ethernet Module, TCP/IP to Serial, Support

Overview This is a RS485 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and Ethernet ports, uses screw terminals for power input, supports 9~24V wide range power supply. Rail-mount flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring.etc. Specifications 1.Primary Introduction Product Type--- Serial server, Modbus Gateway, MQTT Gateway Basic Function--- Bi-directional transparent data transmission between RS485 and Ethernet Communication interface --- RS485 port x 1, Ethernet port x 1 Power supply --- 9 ~ 24V DC screw terminal 2.Communication Ethernet--- common network port, 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection. Serial port--- RS485. 3.Serial specification Baudrate---300 ~ 115200 bps Parity bit--- none, odd, even, mark, space Data bit--- 5 ~ 9 bits 4.Software Protocol--- ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS Configuration--- host, web browser, device management functions library Communication method--- TCP/IP direct communication, VCOM Operating mode--- TCP server, TCP client (coexisting with TCP server), UDP, UDP multicas 5.Environment requirement Operating temperature--- -40 ~ 85 Storage temperature: -45 ~ 125 Humidity range--- 5% ~ 95% relative humidity Dimensions --- L x W x H--- 87x 36 x 59 mm Online Document/How to use: //bit.ly/3rWrjyz Package Content RS485 TO ETH (B) x1

Brand: waveshare

client udp, multicast multi, computers accessories, accessories computer, rs485 rj45, modbus, communication, modes, serial server, waveshare ethernet, tcp serial, udp multicast Electronics Computers & Accessories Computer Accessories & Peripherals Computer Cable Adapters Serial Adapters

Key Features

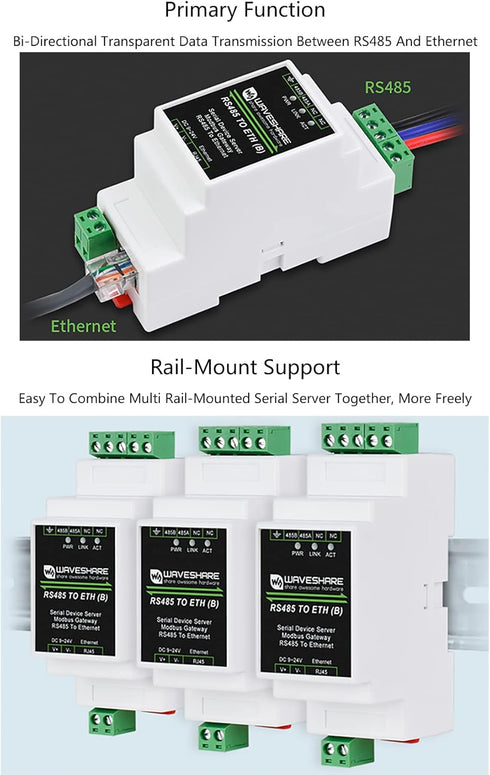

• ✓ This is an RS485 device data acquisitor / IoT gateway designed for the industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. Bi-directional transparent data transmission between RS485 and Ethernet.

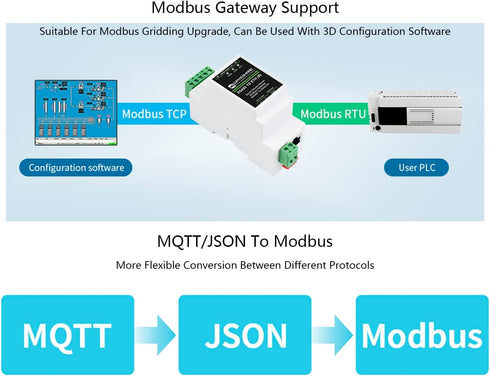

• ✓ Support Rail-mount :easy to combine multi rail-mounted serial server together, more freely. Support Modbus gateway: suitable for Modbus gridding upgrade, can be used with 3D configuration software. Support NTP protocol: getting network time info for serial output or data upload.

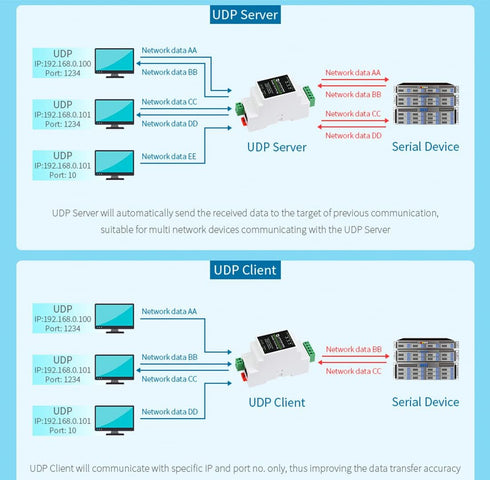

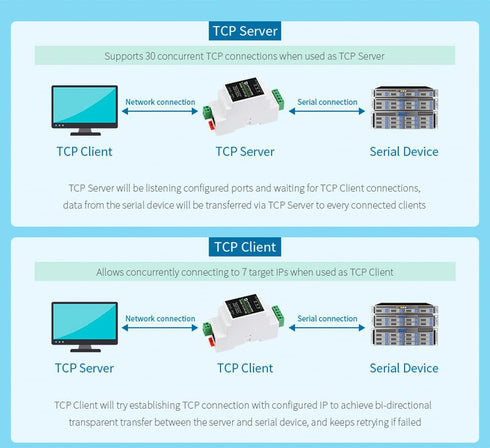

• ✓ Multi communication modes: supports TCP server / TCP client / UDP mode / UDP multicast. Multi configuration methods: supports Web browser configuration, obtaining dynamic IP via DHCP,DNS protocol connected domain server address. MQTT/JSON to Modbus: more flexible conversion between different protocols.
• ✓ Multi hosts roll-polling support: different network devices will be identified and responsed respectively, no more crosstalk issue while communicating with multi network devices
• ✓ User-defined heartbeat/registration packet: easy for cloud communication and device identification.

Product Details

• ✓ Item Weight: 0.01 Kilograms

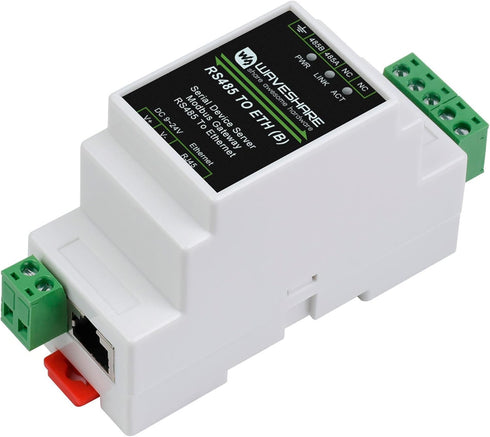

• ✓ Model Number: RS485 to ETH RJ45 (B)
• ✓ Color: RS485 TO ETH (B)
