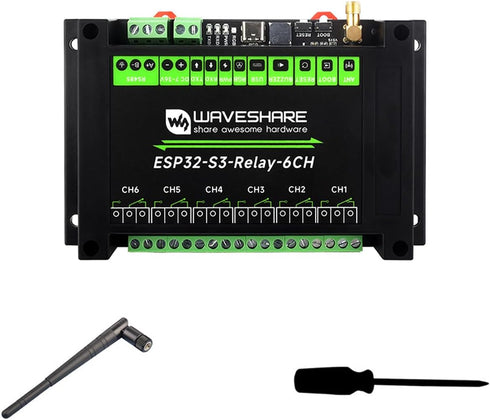

Waveshare Industrial 6-Channel ESP32-S3 WiFi Relay Module, Supports WiFi/Bluetooth/RS485 Control, Multiple Isolation

Waveshare Industrial 6-Channel ESP32-S3 WiFi Relay Module, Supports WiFi/Bluetooth/RS485 Control, Onboard RS485 / Pico HAT Interfaces, with Multiple Isolation Protection Circuits

Waveshare Industrial 6-Channel ESP32-S3 WiFi Relay Module, Supports WiFi/Bluetooth/RS485 Control, Multiple Isolation

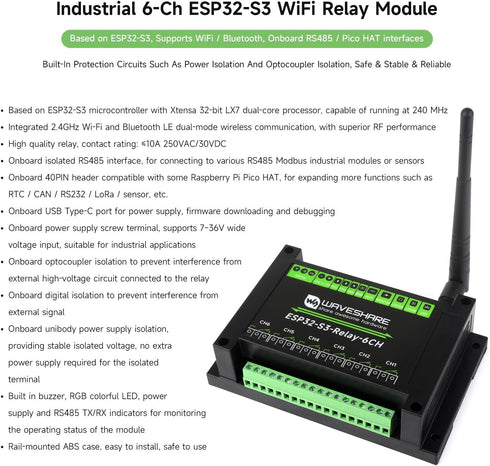

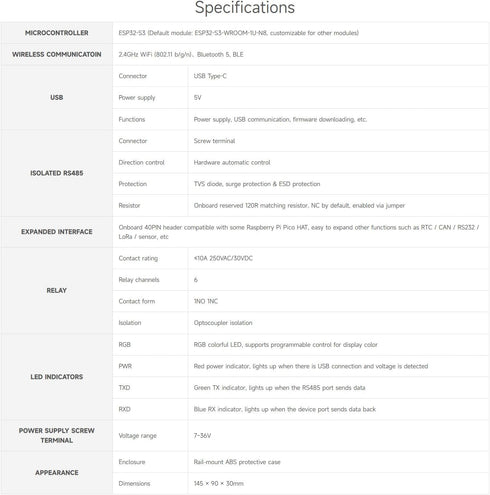

Key Features

• ✅ Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
• ✅ Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance. High quality relay, contact rating: =10A 250VAC/30VDC

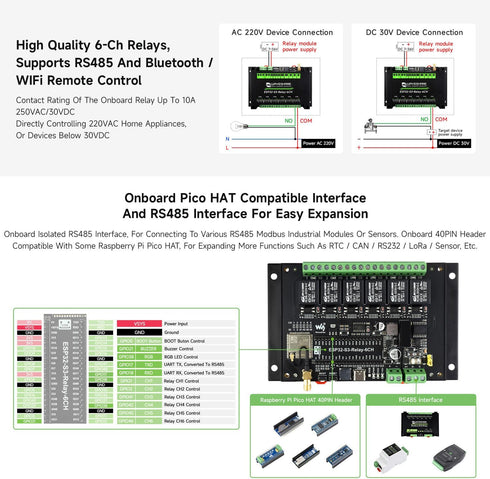

• ✅ Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
• ✅ Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc.
• ✅ Onboard USB Type-C port for power supply, firmware downloading and debugging. Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications

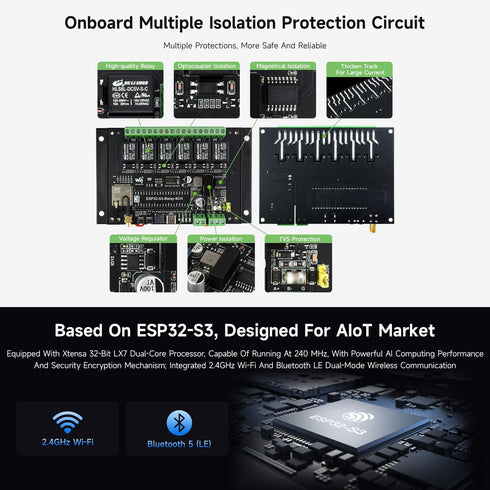

• ✅ Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay. Onboard digital isolation to prevent interference from external signal
• ✅ Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
• ✅ Built in buzzer, RGB colorful LED, power supply and RS485 TX/RX indicators for monitoring the operating status of the module. Rail-mounted ABS case, easy to install, safe to use
