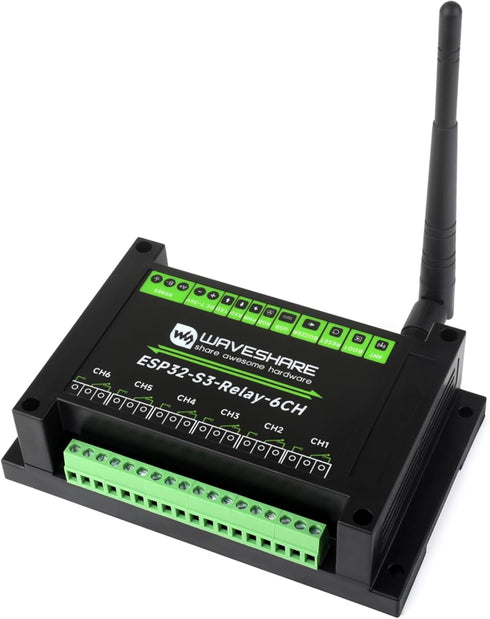

Waveshare Industrial 6-Channel ESP32-S3 Relay Module, Supports Wi-Fi/BLE/RS485 Control, Onboard Interfaces for Expansion

Waveshare Industrial 6-Channel ESP32-S3 W-i-F-i Relay Module, Supports W-i-F-i/B-L-E / RS485 Control, Onboard RS485 / Pico HAT Interfaces, for Expanding RTC/CAN / RS232 / LoRa/Sensor, etc.

Waveshare Industrial 6-Channel ESP32-S3 Relay Module, Supports Wi-Fi/BLE/RS485 Control, Onboard Interfaces for Expansion

Key Features

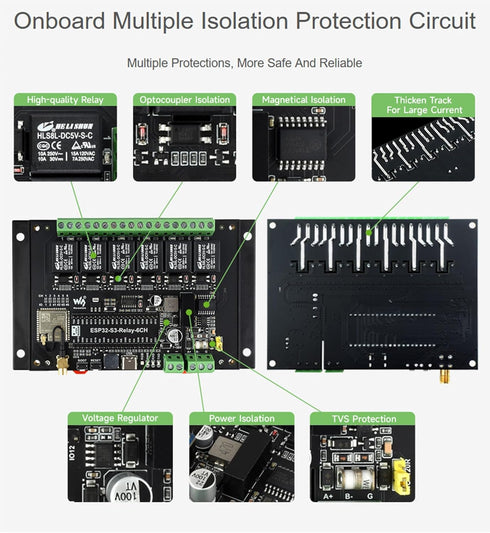

• ✅ Industrial 6-Ch ESP32-S3 W-i-F--i Relay Module, Supports W-i-F--i / Blue--too-th / RS485 control, Onboard RS485 / Pico HAT interfaces, Built-in protection circuits such as power isolation and optocoupler isolation, Safe & Stable & Reliable
• ✅ Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Integrated 2.4 G H z W-i-F--i and Blue-too-th LE dual-mode wire-less communication, with superior RF performance.

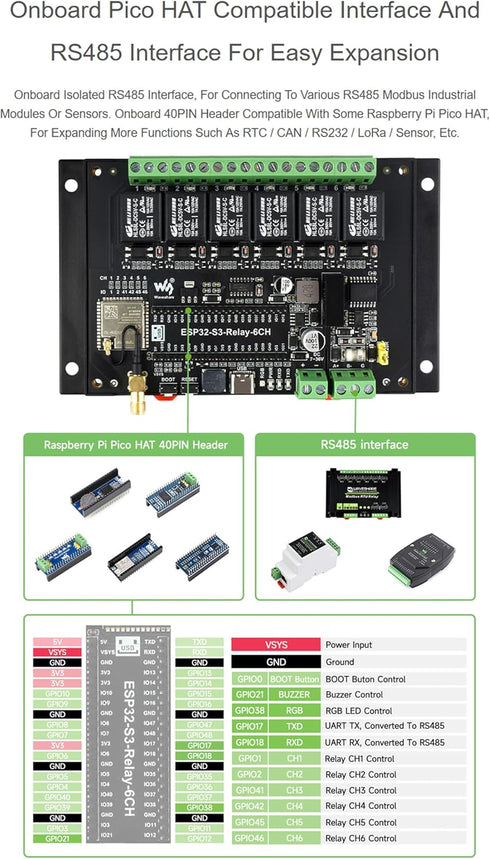

• ✅ Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors. Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc.
• ✅ Onboard USB Type-C port for power supply, firmware downloading and debugging. Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications.

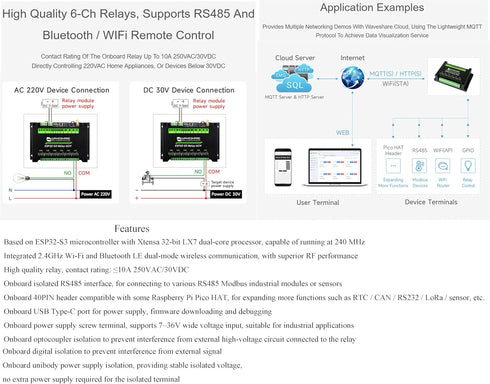

• ✅ High quality 6-Ch relays, supports RS485 and Blue-to-oth / W-i-F--iremote control.
• ✅ Contact rating of the onboard relay up to 10A 250VAC/30VDC. Directly controlling 220VAC home appliances, or devices below 30VDC
