waveshare HDMI to CSI Camera Adapter, Supports HDMI Input up to 1080p 30fps for Raspberry Pi 4B/3B+/3B/Pi Zero

waveshare HDMI to CSI Camera Adapter, Support HDMI Input up to 1080p 30fps Compatible with Raspberry Pi 4B/3B+/3B/Pi Zero/Zero W,Raspberry Pi CSI Cameras

waveshare HDMI to CSI Camera Adapter, Supports HDMI Input up to 1080p 30fps for Raspberry Pi 4B/3B+/3B/Pi Zero

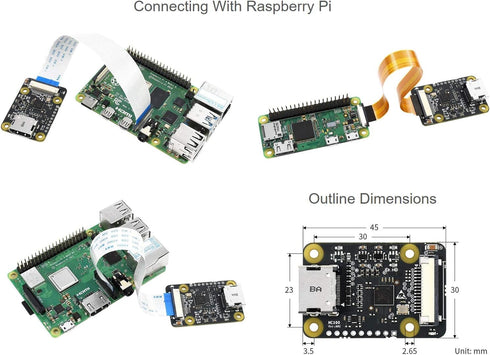

Overview This is an HDMI to CSI camera port adapter designed for Raspberry Pi with up to 1080p@30fps support from HDMI input, backward compatible. It allows you to use HDMI cameras just as the standard Raspberry Pi CSI cameras, all versions of Raspberry Pi series boards are supported. Features PN: HDMI to CSI Adapter Input signal: HDMI; Output signal: CSI; Limitation: HDMI input supports up to 1080p@30fps,backward compatible Support: Raspberry Pi 4B/3B+/3B/2B/B+/3A+/Pi Zero/Zero W,Raspberry Pi CSI cameras Connection Connect the FPC cable of Raspberry Pi to the CSI interface of Raspberry Pi. The CSI interface of Pi 2B, 3B, 3B+ located between the LAN port and HDMI port. The CSI interface of Pi 4 is placed between the HDMI1 interface and the audio jack. If you use Pi zero, the CSI interface is beside the Power port. Here is the diagram of Pi 4. 4B Note that the silver side (metal side) should toward to the HDMI interface. Release the black buckle, align the FPC cable and insert it tightly, then close the black buckle. 2.Enable Camera The camera interface of Raspberry Pi is default disabled. Before you use camera, you should enable it. Open Raspberry Pi terminal and excute command sudo raspi-config, then choose Interfacing Options -> Camera -> Yes Reboot Raspberry Pi sudo reboot 3. Test Open a terminal and test the adapter Capture:sudo raspistill -o image-01.jpg Record:sudo raspivid -o video-01.h264 -t 10000 Package Content HDMI to CSI Adapter x1 Note The FCC cable is required if using with Raspberry Pi Zero,Zero W The Raspberry Pi and HDMI Camera are not included in the product package .

Key Features

• ✅ This is an HDMI to CSI camera port adapter ,HDMI in Module,up to 1080p@30fps support from HDMI input, backward compatible.
• ✅ It allows you to use HDMI cameras just as the standard Raspberry Pi CSI cameras
• ✅ It is also compatible with Raspberry Pi 4 Model B, Raspberry Pi 3 Model B+/3B, Raspberry Pi 3 Model A+, Raspberry Pi 2 Model B,Raspberry Pi 1 Model B+,Raspberry Pi Zero W Raspberry Pi Zero
• ✅ Note:If you need to use it for Raspberry Pi Zero ,Zero W, extra FCC cable is required.
• ✅ Package Content:HDMI to CSI Adapter x1

✅ Color: black
