waveshare ESP32-S3 MCU Board with 1.28inch IPS Round LCD Display, Supports 2.4GHz Wi-Fi and Bluetooth 5, 32-bit

waveshare ESP32-S3 MCU Board with 1.28inch IPS Round LCD Display, Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5, 32-bit LX7 Dual-core Processor, 16MB Flash & 2MB PSRAM, Type-C Connector

waveshare ESP32-S3 MCU Board with 1.28inch IPS Round LCD Display, Supports 2.4GHz Wi-Fi and Bluetooth 5, 32-bit

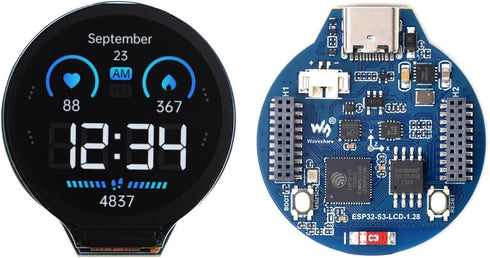

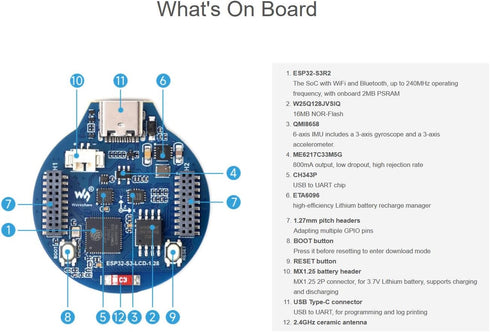

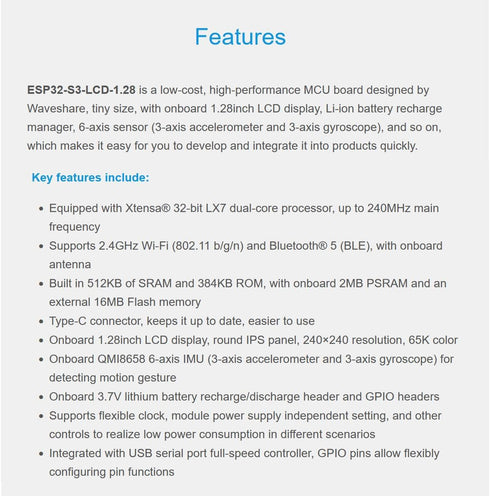

Overview ESP32-S3-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch LCD display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly. Features --Equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency --Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna --Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory --Type-C connector, keeps it up to date, easier to use --Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color --Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture --Onboard 3.7V lithium battery recharge/discharge header and GPIO headers --Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios --Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions Package Content ESP32-S3-LCD-1.28 x1

Key Features

• ✅ ESP32-S3 Development Board equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency, supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna, with onboard 2MB PSRAM and an external 16MB Flash memory

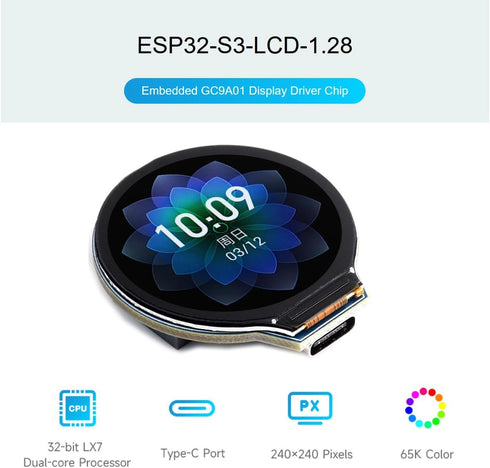

• ✅ ESP32-S3-LCD-1.28 MCU board with onboard 1.28inch round IPS LCD screen, 240×240 resolution, 65K Color
• ✅ Onboard Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on

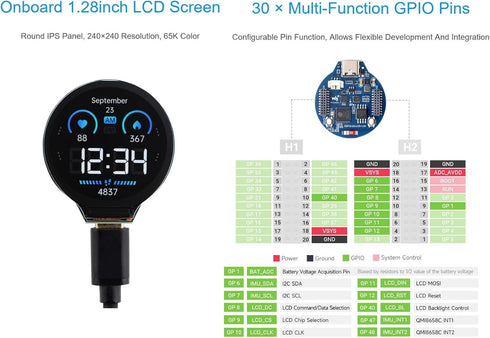

• ✅ 30 × multi-function GPIO pins, configurable pin function, allows flexible development and integration
• ✅ Type-C connector, keeps it up to date, easier to use
