waveshare ESP32-S3 1.47inch 172320 262K 2.4GHz 5 LCD Display Development Board Type B with pre-soldered Header

ESP32-S3 1.47inch LCD Display Development Board Type B with pre-soldered Header 172320 Resolution 262K Display Color Display Supports 2.4GHz Wi-Fi and BLE 5

waveshare ESP32-S3 1.47inch 172320 262K 2.4GHz 5 LCD Display Development Board Type B with pre-soldered Header

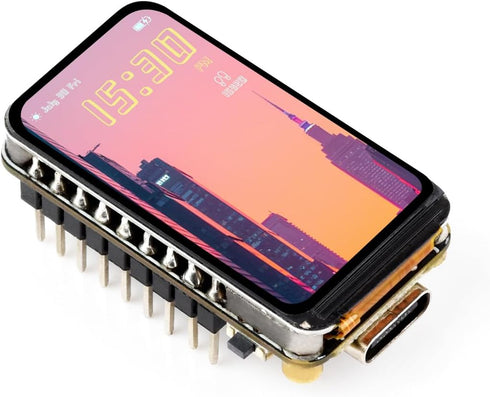

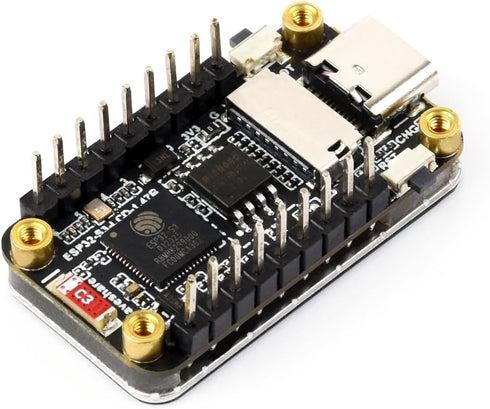

ESP32-S3 1.47inch LCD Display Development Board Type B, 172320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-Core Processor, ESP32 With Display Features ESP32-S3-LCD-1.47B is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM Onboard 1.47inch LCD display, 172320 resolution, 262K color Adapting multiple IO interfaces, supports full-speed USB standard Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc Built-in RGB LED with clear acrylic sandwich panel for cool lighting effects Onboard TF card slot for external TF card storage of pictures or files Onboard battery charging management module, supports connecting to Lithium battery for power supply (the battery interface is located at the GPIO header) Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios Package Content ESP32-S3-LCD-1.47B with pre-soldered header 1 Usage Instructions ESP32-S3-LCD-1.47B currently provides two development tools and frameworks, Arduino IDE and ESP-IDF, providing flexible development options, you can choose the right development tool according to your project needs and personal habits.

Brand: waveshare

pre soldered, computers, waveshare, 47inch, soldered header, resolution, development, header, esp32, board, ble electronics, board type Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

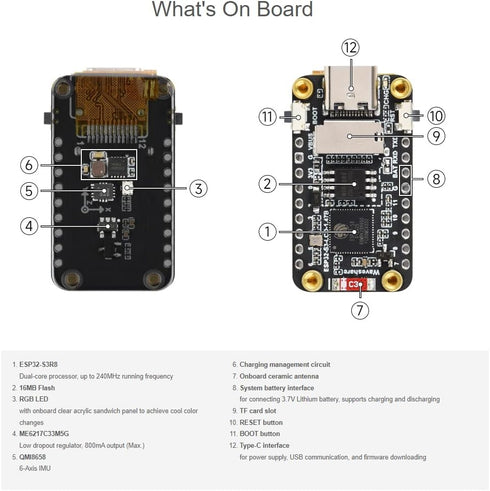

• ✅ ESP32-S3-LCD-1.47B,Onboard TF Card Slot, 6-Axis IMU, And Multiple Peripheral Interfaces
• ✅ Suitable For AIoT Applications,Powered By A High-Performance 32-Bit LX7 Dual-Core Processor, The Main Frequency Is Up To 240 MHz, With Powerful AI Computing Capability & Reliable Security
• ✅ Wi-Fi And BLE 5 Support,ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

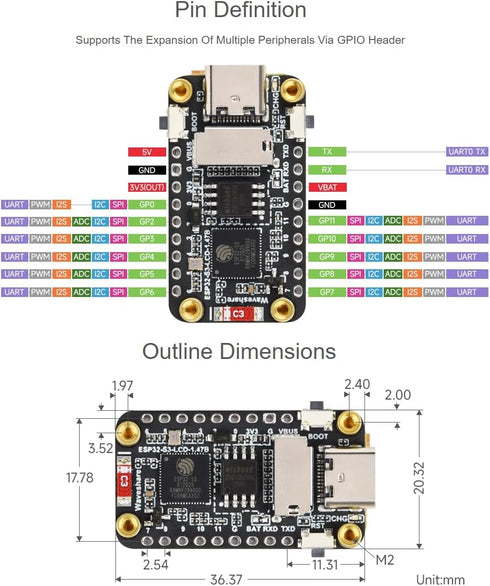

• ✅ Pin Definition,Supports The Expansion Of Multiple Peripherals Via GPIO Header
• ✅ Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL.

Product Details

• ✅ Item Weight: 0.01 Kilograms
• ✅ Model Number: ESP32-S3 1.47inch LCD B-M
