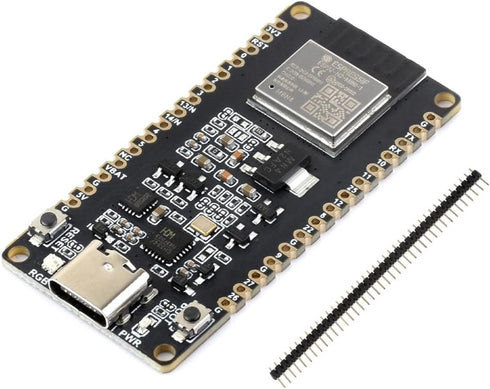

Waveshare ESP32-H2 Microcontroller Development Board, Integrated Bluetooth 5 and IEEE 802.15.4, 96MHz Processor

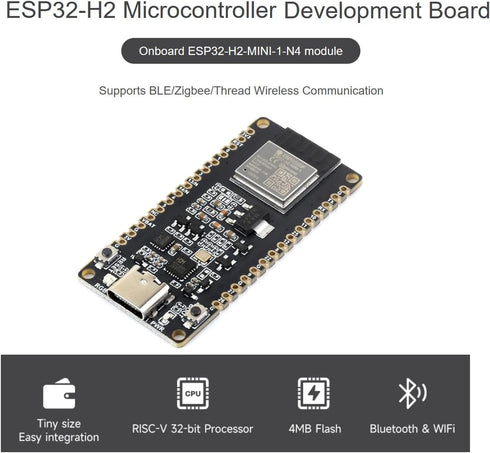

Waveshare ESP32-H2 Microcontroller Development Board onboard ESP32-H2-MINI-1-N4 Module, 96MHz Processor, Integrated Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) Wireless Communication

Waveshare ESP32-H2 Microcontroller Development Board, Integrated Bluetooth 5 and IEEE 802.15.4, 96MHz Processor

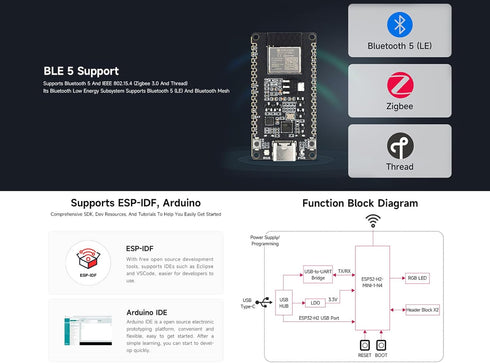

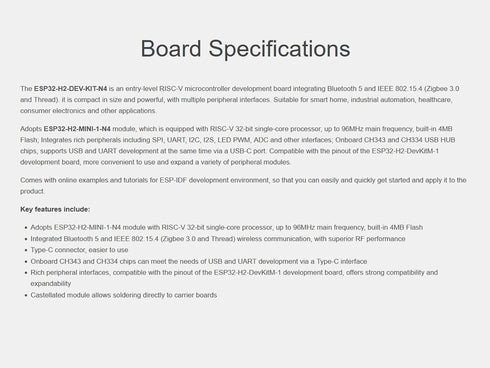

Overview The ESP32-H2-DEV-KIT-N4 is an entry-level RISC-V microcontroller development board integrating Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). Adopts ESP32-H2-MINI-1-N4 module, which is equipped with RISC-V 32-bit single-core processor, up to 96MHz main frequency, built-in 4MB Flash; Integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, ADC and other interfaces; Onboard CH343 and CH334 USB HUB chips, supports USB and UART development at the same time via a USB-C port. Compatible with the pinout of the ESP32-H2-DevKitM-1 development board, more convenient to use and expand a variety of peripheral modules. Comes with online examples and tutorials for ESP-IDF development environment, so that you can easily and quickly get started and apply it to the product. Features --Adopts ESP32-H2-MINI-1-N4 module with RISC-V 32-bit single-core processor, up to 96MHz main frequency, built-in 4MB Flash --Integrated Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance --Type-C connector, easier to use --Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface --Rich peripheral interfaces, compatible with the pinout of the ESP32-H2-DevKitM-1 development board, offers strong compatibility and expandability --Castellated module allows soldering directly to carrier boards Package Content ESP32-H2-DEV-KIT-N4 x1 40PIN male pinheader(black) x2 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

Key Features

• ✅ ESP32-H2-DEV-KIT-N4 RISC-V microcontroller development board integrating Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread), with rich peripherals including SPI, UART, I2C, I2S, LED PWM, ADC and other interfaces
• ✅ ESP32-H2 microcontroller development board adopts ESP32-H2-MINI-1-N4 module, with RISC-V 32-bit single-core processor, up to 96MHz main frequency, built-in 4MB Flash
• ✅ Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface

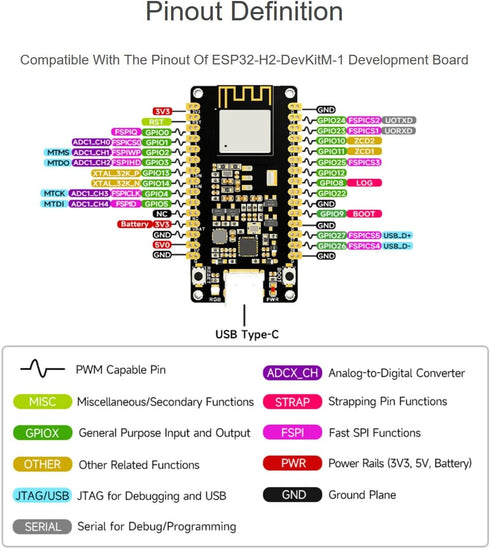

• ✅ Rich peripheral interfaces, compatible with the pinout of the ESP32-H2-DevKitM-1 development board, offers strong compatibility and expandability
• ✅ Supports ESP-IDF, Arduino, comes with online examples and tutorials for ESP-IDF development environment

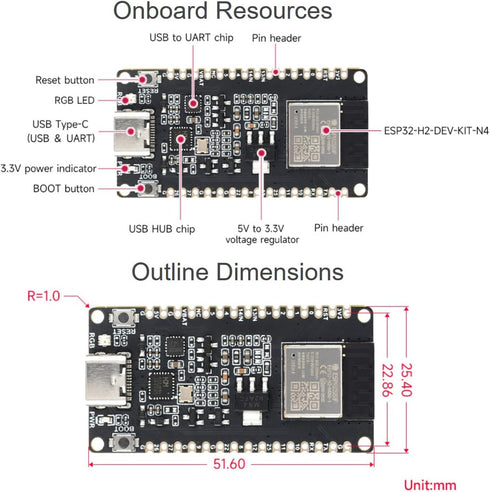

✅ Product Dimensions: 2.03 x 1 x 0.39 inches
