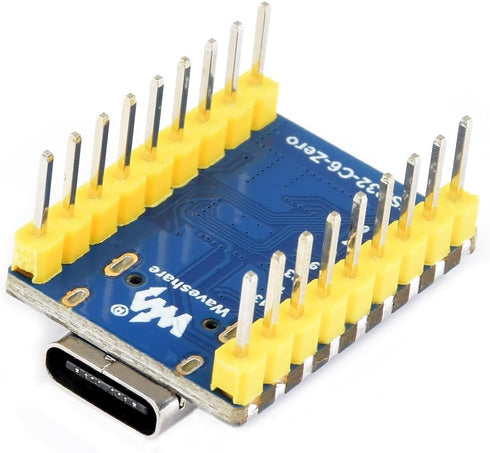

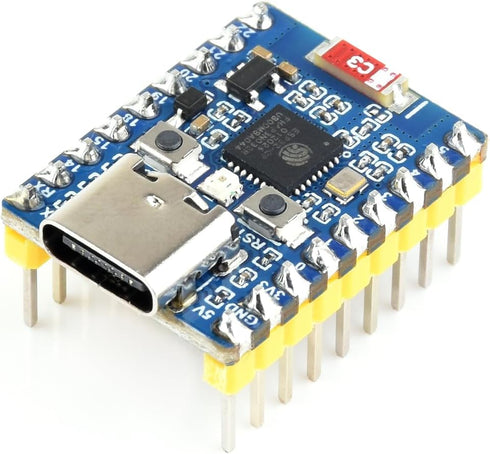

waveshare ESP32-C6 Mini Development Board, WiFi 6, Dual Processors, 2.4GHz WiFi 6 + Bluetooth 5(LE), Compatible with

waveshare ESP32-C6 WiFi 6 Mini Development Board with Pre-soldered Header Based on ESP32-C6FH4 Dual Processors, 2.4GHz WiFi 6 +Bluetooth 5(LE) and Bluetooth Mesh,Compatible with ESP-IDF,Arduino

waveshare ESP32-C6 Mini Development Board, WiFi 6, Dual Processors, 2.4GHz WiFi 6 + Bluetooth 5(LE), Compatible with

Overview The ESP32-C6-Zero-M is a low-cost, high-performance microcontroller development board with a compact size and rich peripheral interfaces. Adopts ESP32-C6-MINI-1 as the main chip, with RISC-V 32-bit single-core processor, support up to 160 MHz, and built-in 320KB ROM 512KB HP SRAM, 16KB LP SRAM, and 4 MB flash. Onboard standard Raspberry Pi Pico pin headers, it can be compatible with multiple peripheral devices and is easier to use in different application scenarios. You can choose ESP-IDF and Arduino in software so that you can easily and quickly get started and apply it to the product. Board Specifications Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios Onboard USB Type-C port, 22 × GPIO pins allows flexibly configuring pin functions Package Content ESP32-C6-Zero with pre-soldered header x1 FAQ 1.The module appears to be reset all the time, and the recognition status will be flashing when viewed from the device manager? This situation may be due to Flash blank USB port instability, you can long-press the BOOT button, press RESET at the same time, and then release RESET, and then release the BOOT button, at this time the module can enter the download mode to burn the firmware (program) to solve the situation. Note Technical Support is provided, please contact with us first if you have any problem .

Key Features

• ✅ Adopts ESP32-C6-MINI-1 as the main chip, with RISC-V 32-bit single-core processor, support up to 160 MHz.

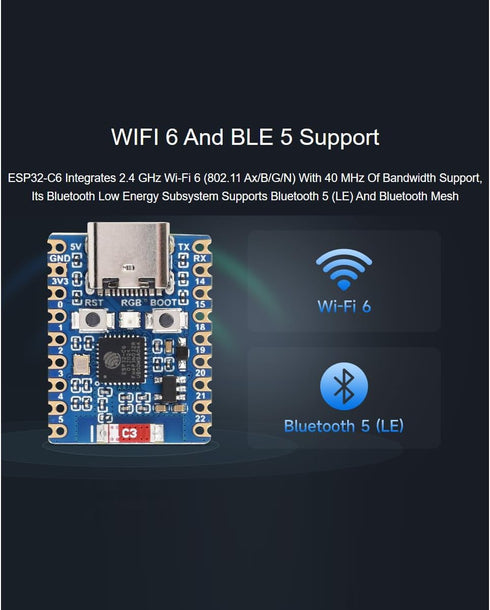

• ✅ Integrated 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 4MB Flash memory.Integrated 2.4GHz WiFi 6 and BLE (Bluetooth LE) dual-mode wireless communication, with superior RF performance.

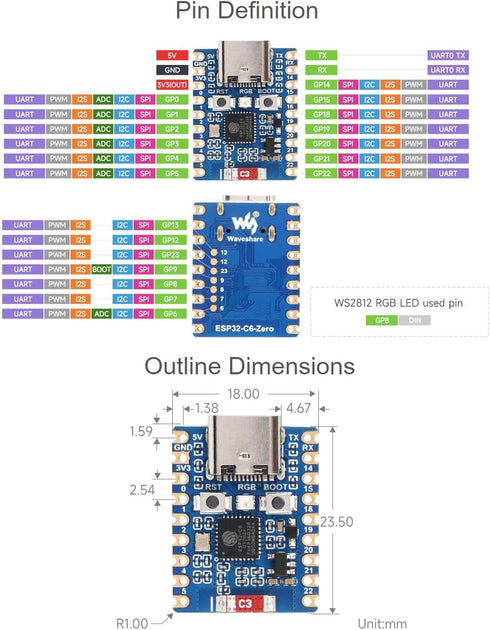

• ✅ Type-C connector, easier to use.Rich peripheral interfaces, including standard Raspberry Pi Pico interfaces, better compatibility and expandability.

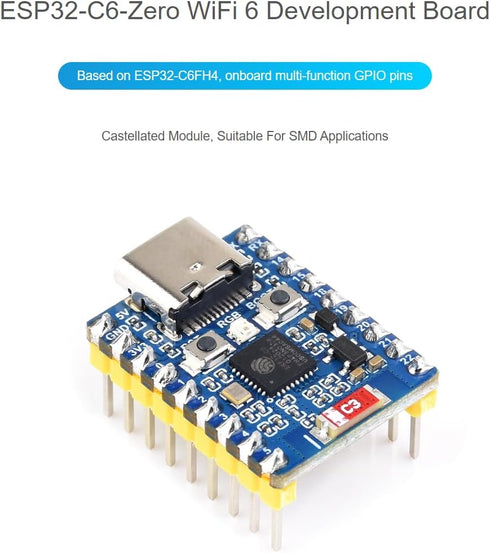

• ✅ Castellated module allows soldering directly to carrier boards.Support multiple low-power modes, easy to adjust communication distance, data rate, and power consumption, to meet various application scenarios with power consumption requirements.
• ✅ Please use the provided " WS_TCA9554PWR " file to set GPIO22(SDA)and GPIO23(SCL)as I2C functions for GPIO extension to make the device function complete..Please note that GPIO22 (SDA) and GPIO23(SCL) are used for TCA9554PWR, and you only can connect these pins to I2C slave device, and do not connect to others.
