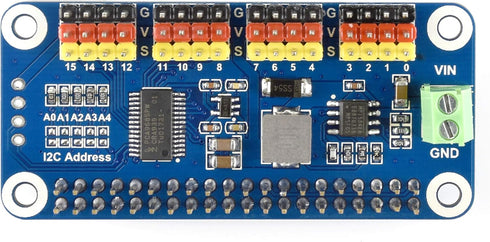

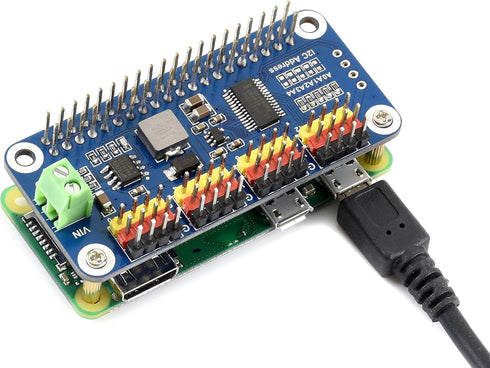

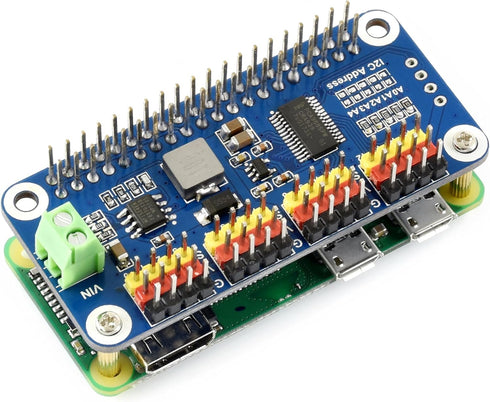

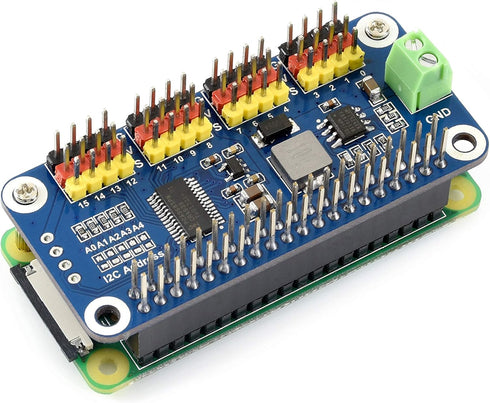

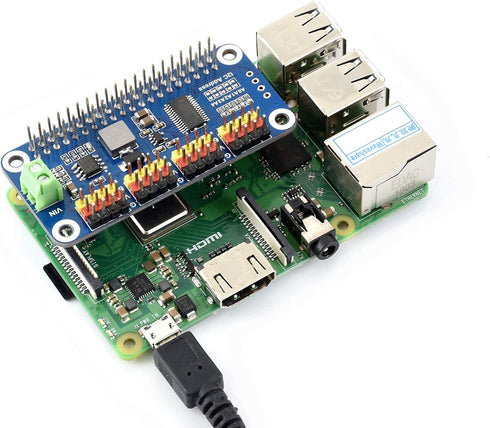

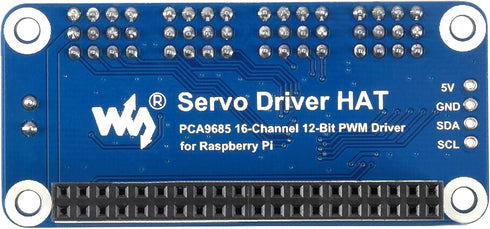

Waveshare Servo Driver Hat for Raspberry Pi 3B+ 3B 2B Zero WH Zero W Zero 16 Channel PWM Outputs 12 Bit Resolution I2C Interface
waveshare 3B+ 3B 2B 16 12 I2C Servo Driver Hat for Raspberry Pi Zero WH Zero W Zero Channel PWM Outputs Bit Resolution

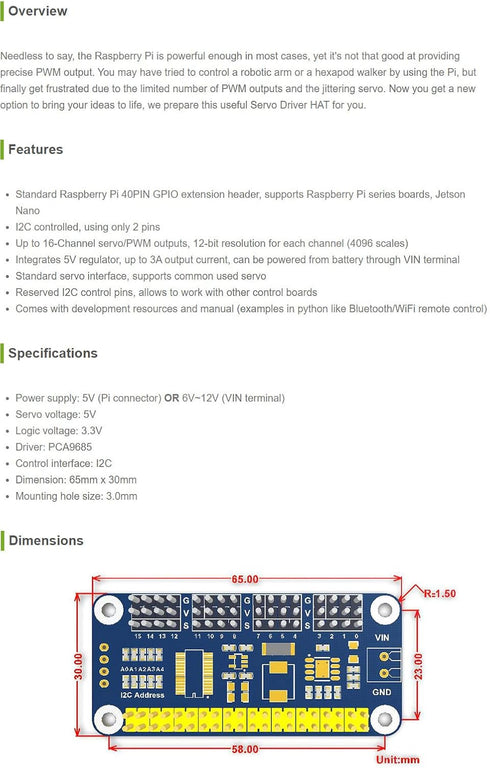

Needless to say, the Raspberry Pi is powerful enough in most cases, yet it's not that good at providing precise PWM output. You may have tried to control a robotic arm or a hexapod walker by using the Pi, but finally get frustrated due to the limited number of PWM outputs and the jittering servo. Now you get a new option to bring your ideas to life, we prepare this useful Servo Driver HAT for you. This HAT can be used to drive servos such as: This HAT provides 2 options for the onboard pinheader: Except pinheader, the PCB and all other function/properties are exactly the same.
Brand: waveshare
zero zero, bit, resolution, raspberry zero, channel, interface electronics, servo driver, waveshare, i2c interface, computer components, hat, outputs bit Electronics Computers & Accessories Computer Components Single Board Computers
Key Features
- ✓ Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+, Jetson Nano
- ✓ I2C controlled using only 2 pins. Up to 16-Channel servo/PWM outputs 12-bit resolution for each channel (4096 scales)
- ✓ Integrates 5V regulator up to 3A output current can be powered from battery through VIN terminal

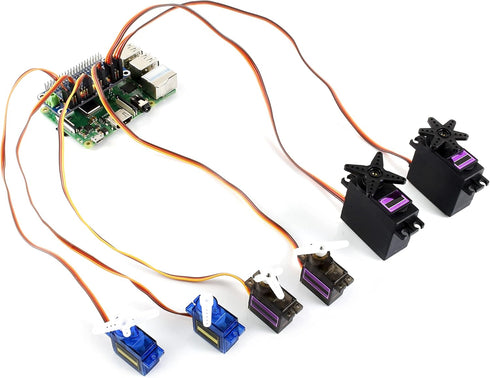

- ✓ Standard servo interface supports common used servo such as SG90 MG90S MG996R etc.
- ✓ Reserved I2C control pins allows to work with other control boards
Product Details
- ✓ Model Number: Servo Driver HAT
