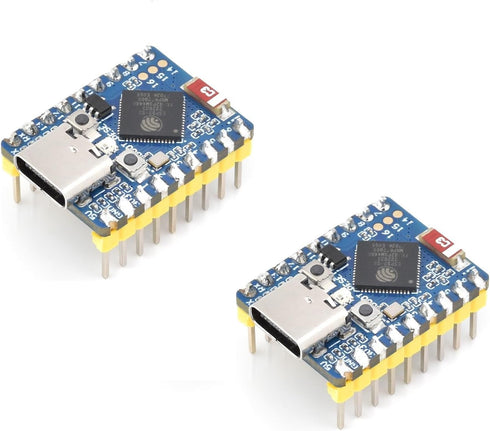

waveshare 2 PCS ESP32-S3 Mini Development Board, 2.4GHz Wi-Fi, Bluetooth 5 Support, USB Type-C Port

waveshare 2 PCS ESP32-S3 Mini Development Board with Pre-Soldered Header,2.4GHz Wi-Fi,Bluetooth 5 Support,Based on ESP32-S3FH4R2 Dual-Core Processor,240MHz Running Frequency, USB Type-C Port

waveshare 2 PCS ESP32-S3 Mini Development Board, 2.4GHz Wi-Fi, Bluetooth 5 Support, USB Type-C Port

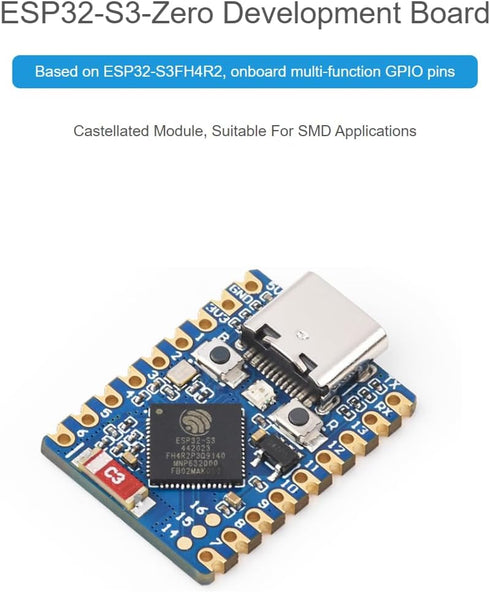

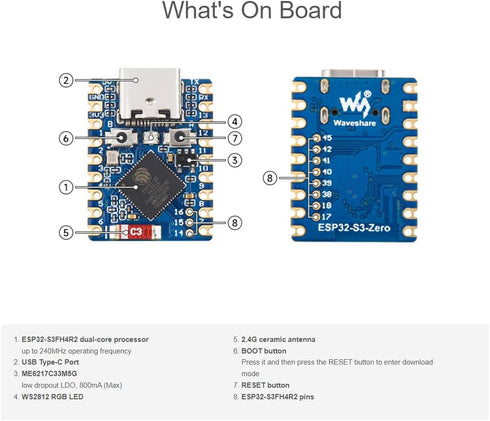

2 pcs ESP32-S3 Mini Development Board with Pre-Soldered Header, Based On ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5 Features 1.ESP32-S3-Zero-M Development Board Based on ESP32-S3FH4R2, onboard multi-function GPIO pins Castellated Module, Suitable For SMD Applications 2.Support C/C++, MicroPython Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started What's On Board 1.ESP32-S3FH4R2 dual-core processor up to 240MHz operating frequency 2.USB Type-C Port 3.ME6217C33M5G low dropout LDO, 800mA (Max) 4.WS2812 RGB LED 5.2.4G ceramic antenna 6.BOOT button Press it and then press the RESET button to enter download mode 7.RESET button 8.ESP32-S3FH4R2 pins Package Content ESP32-S3-Zero-M × 2 Note Development Resources is provided , please contact us if you have any problem .

Key Features

• ✅ Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• ✅ Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE).Built in 512KB of SRAM and 384KB ROM, onboard 4MB Flash memory and 2MB PSRAM
• ✅ Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
• ✅ Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

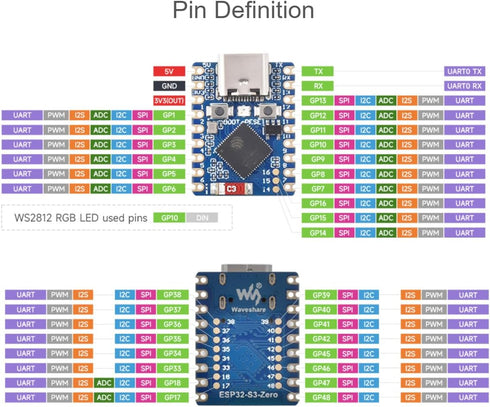

• ✅ Integrated with USB serial port full-speed controller, 34 × GPIO pins allows flexibly configuring pin functions.4 × SPI, 2 × I2C, 3 × UART, 2 × I2S, 2 × ADC, etc.
