waveshare 2.13inch V4 250x122 3.3V/5V WH/2B/3B/3B+/4B, E-Ink Display HAT Version, Resolution Black White Two-Color

2.13inch E-Ink Display HAT V4 Version, 250x122 Resolution 3.3V/5V Black White Two-Color e-paper Screen Module for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B, Supports Partial Refresh, SPI Interface

waveshare 2.13inch V4 250x122 3.3V/5V WH/2B/3B/3B+/4B, E-Ink Display HAT Version, Resolution Black White Two-Color

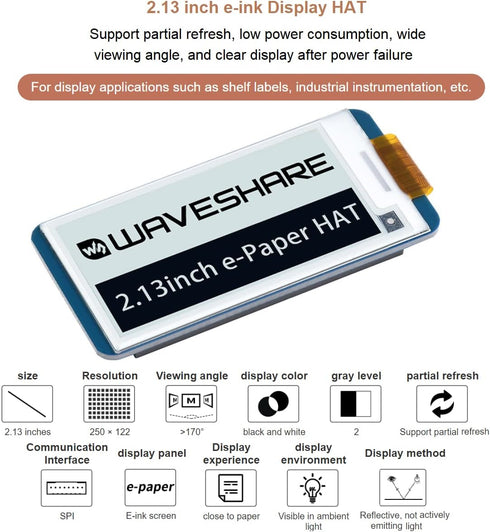

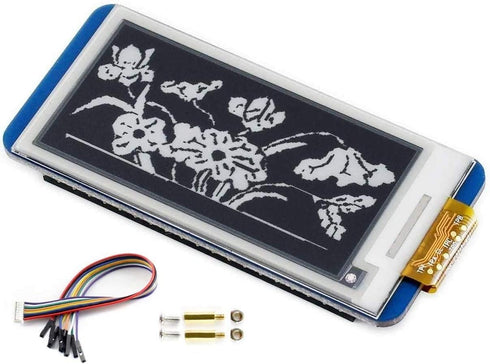

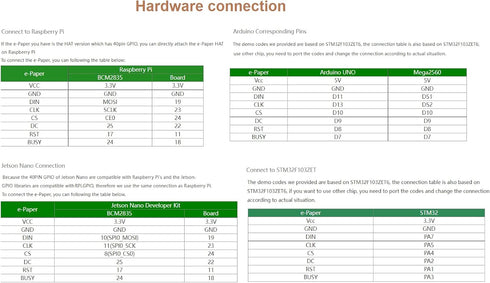

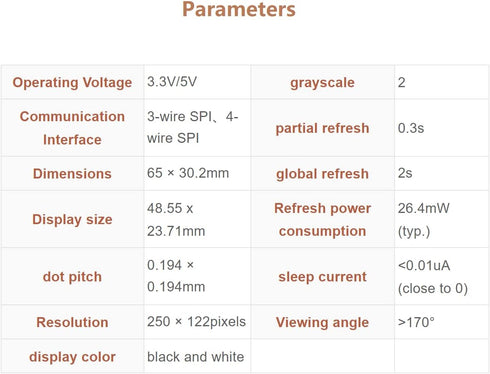

250x122, 2.13inch E-Ink display HAT V4 Version for Raspberry Pi,Jetson Nano,SPI interface Overview This is an E-Ink display HAT V4 Version for Raspberry Pi,Jetson Nano, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Specifications Operating voltage: 3.3V/5V Interface: SPI Outline dimension: 65mm 30.2mm Display size: 23.71mm 48.55mm Dot pitch: 0.194 0.194 Resolution: 250 122 Display color: black, white Grey level: 2 Partial refresh time: 0.3s Full refresh time: 2s Refresh power: 26.4mW(typ.) Standby power: <0.017mW Viewing angle: >170 Interface VCC---3.3V GND---GND DIN---SPI MOSI CLK---SPI SCK CS---SPI chip select (Low active) DC---Data/Command control pin (High for data, and low for command) RST---External reset pin (Low for reset) BUSY---Busy state output pin (Low for busy) Package Content 2.13inch e-Paper HAT x1 RPi screws pack (2pcs) x1 PH2.0 20cm 8Pin x1 Note: Online development resources are provided ,please contact us to get if needed!

Brand: waveshare

resolution, 13inch, screen module, computers accessories, accessories computer, interface electronics, 250x122 resolution, color, two color, computer, supports, ink Electronics Computers & Accessories Computer Components

Key Features

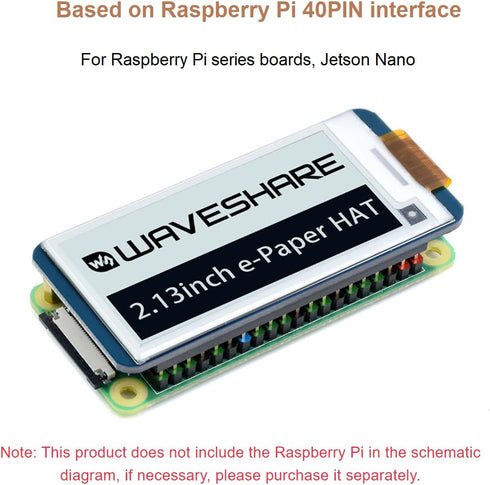

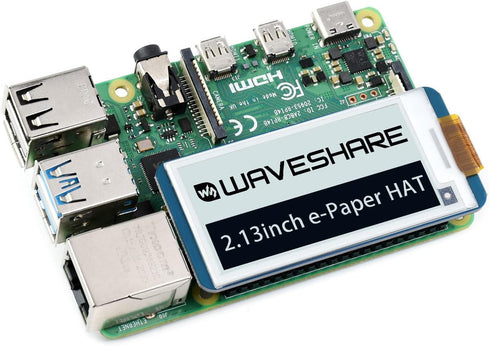

• ✓ This is the latest version 2.13inch e paper display HaT,Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B,Jetson Nano
• ✓ Ultra low power consumption, basically power is only required for refreshing

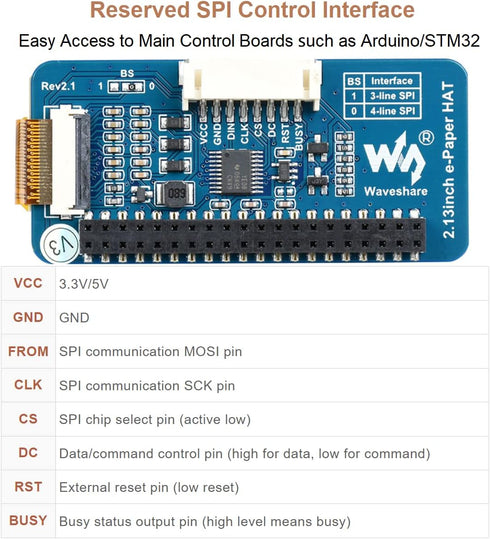

• ✓ Preserved solder pads for SPI interface, compatible with other controller boards like Arduino/Nucleo, etc.

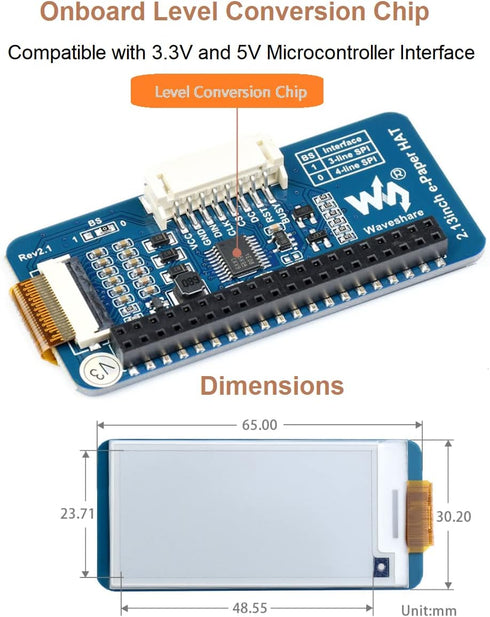

• ✓ Onboard voltage translator, compatible with 3.3V/5V MCUs,Comes with development resources and manual (examples compatible with Raspberry Pi/Arduino/STM32)
• ✓ No backlight, keeps displaying last content for a long time even when power down

Product Details

• ✓ Model Number: 2.13inch E-Ink Display HAT
