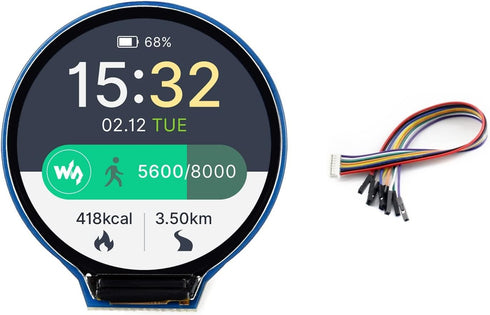

waveshare 1.28inch 240240 65K 4B/3B+/3B/2B/Zero/Zero STM32,Embedded GC9A01 Round LCD Display Module Resolution RGB LCD

1.28inch Round LCD Display Module 240240 Resolution 65K RGB LCD HAT for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/Zero WH, Jetson Nano,Arduino, STM32,Embedded GC9A01 Driver, SPI Interface

waveshare 1.28inch 240240 65K 4B/3B+/3B/2B/Zero/Zero STM32,Embedded GC9A01 Round LCD Display Module Resolution RGB LCD

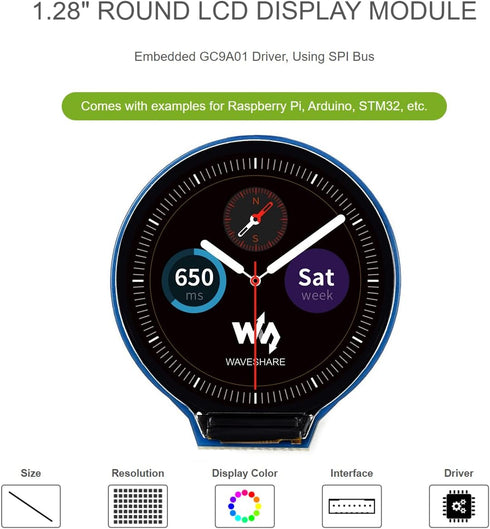

1.1.28" ROUND LCD DISPLAY MODULE Embedded GC9A01 Driver, Using SPI Bus Comes with examples for Raspberry Pi, Arduino, STM32, etc. 2.Controlled Via SPI Bus Supports Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32 LCD and the controller The driver used in this LCD is GC9A01, with a resolution of 240RGB240 dots and 129600 bytes of GRAM inside. This LCD supports 12-bits/16-bits/18-bits data bus by MCU interface, which are RGB444, RGB565, RGB666. For most LCD controllers, the communication method of the controller can be configured, they are usually using 8080 parallel interface, 3-line SPI, 4-line SPI, and other communication methods. This LCD uses a 4-line SPI interface for reducing GPIO and fast speed.LCD If you are wondering which point is the first pixel of the screen (because the screen is round), you can understand it as a square screen with an inscribed circle drawn in it, and it only displays the content in this inscribed circle. The pixels in other locations are simply discarded (just like most round smartwatches on the market) Specifications OPERATING VOLTAGE:3.3V / 5V COMMUNICATION INTERFACE:4-wire SPI DISPLAY PANEL:IPS DRIVER:GC9A01 RESOLUTION:240 240 pixels DISPLAY SIZE:32.4mm PIXEL SIZE:0.135 0.135mm DIMENSIONS:40.4 37.5mm 37.5mm Package Content 1.28inch LCD Module x1 20cm cable x1 Note Development Resources is provided , please contact us if you have any problem .

Brand: waveshare

resolution, computers accessories, gc9a01 driver, accessories computer, 28inch, lcd hat, hat raspberry, driver spi, driver, module 240240, computer, 28inch round Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ 1.28" ROUND LCD DISPLAY MODULE ,Embedded GC9A01 Driver, Using SPI Bus
• ✓ 240240 resolution, 65K RGB colors, clear and colorful displaying effect

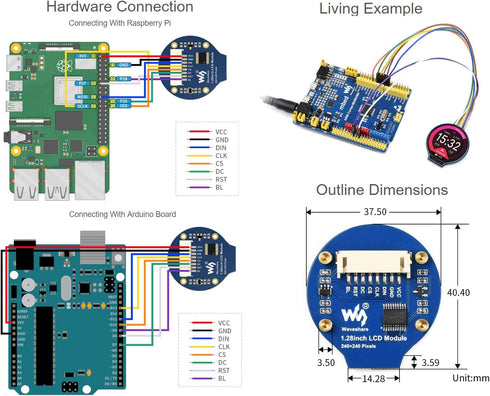

• ✓ SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32

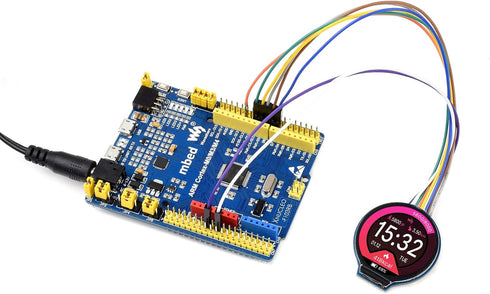

• ✓ Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Product Details

• ✓ Item Weight: 0.02 Kilograms
• ✓ Model Number: 1.28inch RGB LCD
