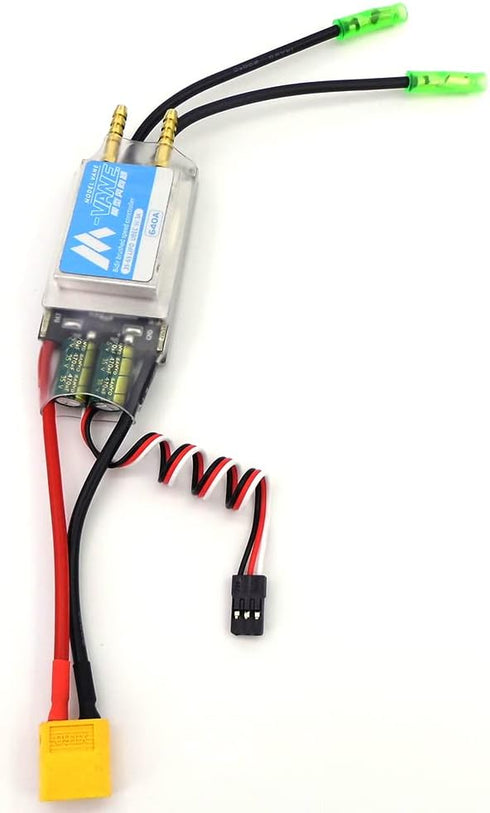

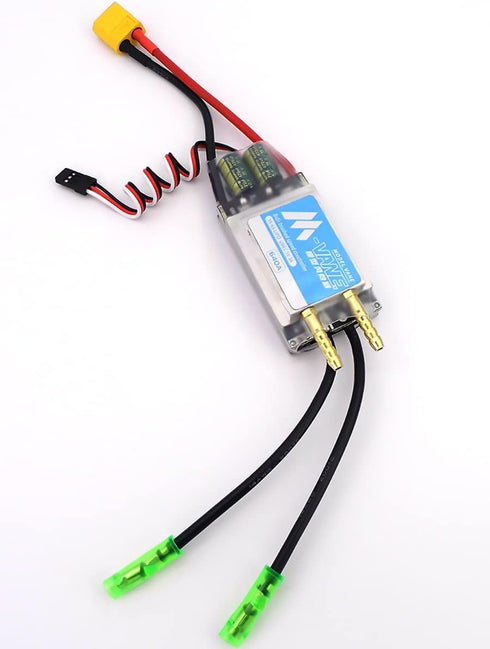

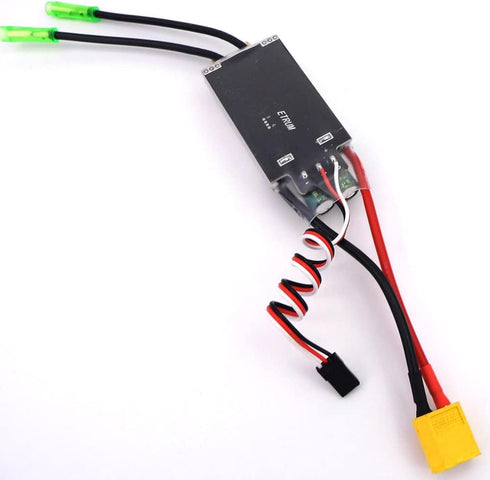

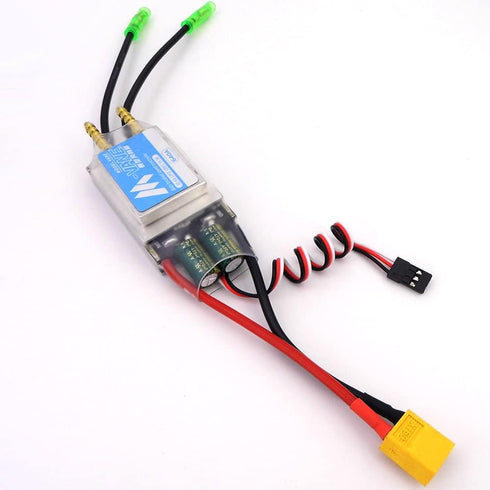

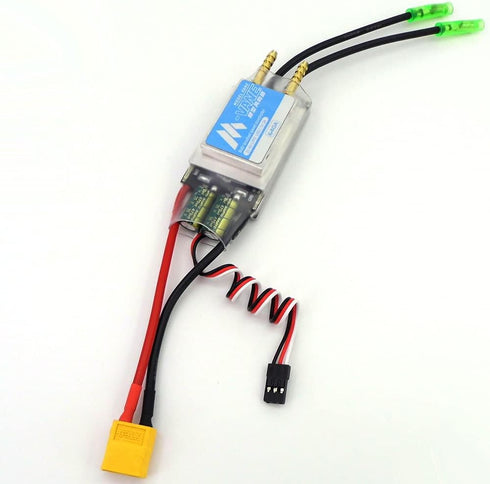

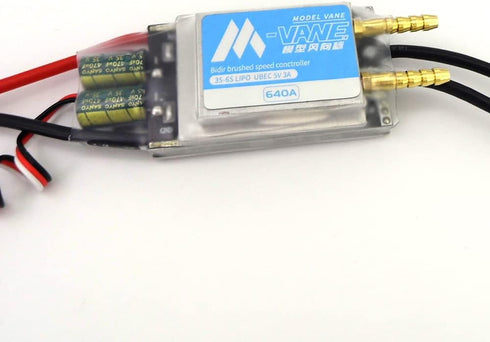

Visit the Store 3-6S 100A 2-Ways 775 RC Boat ESC Water Cooling Speed Controller for Brush Motor RC Tug Bait Fishing

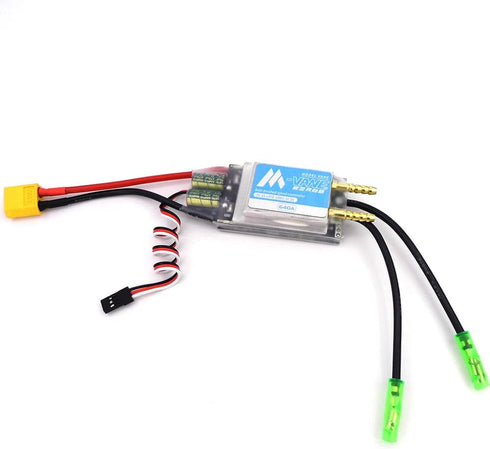

RC Boat ESC 3-6S 100A Water Cooling 2-Ways Speed Controller for 775 Brush Motor RC Tug Bait Fishing Boat Cruise Marine

Visit the Store 3-6S 100A 2-Ways 775 RC Boat ESC Water Cooling Speed Controller for Brush Motor RC Tug Bait Fishing

Widely use for RC boat, RC tug boat, RC fishing bait boat, RC cruise, RC marine, RC car, RC hydroplane, toy boat spare parts etc. Suitable for 540, 550, 775, 795, 895, 997 brush motor. Automatically to find the neutral point, No throttle rang calibration required. Working modes: Forward/ Backward and no brake mode. Build in 5V/3A UBEC,It can drive 2PCS 25kg sovers. Please note: UBEC is a switching-Mode regulators, Please don`t use two ESC in parallel to power the receiver, otherwise they will be burned.the correct method is to disconnect the positive line of one ESC. LED Indicate: LED on-- Working normally LED flash-- The throttle stick is not at the neutral point LED flash fast-- Signal lost How to use: 1, Connect with receiver,motor,battery correctly. 2, Turn on the power of ECS, If the transmitter is off, LED will flash fast. 3, Push the throttle stick to the neutral point,Turn on the transmitter, and adjust the throttle trim until the LED on.that means the neutral position has been confirmed. -- Specification & Features -- - Working Voltage: 10V-26V ( LiPo 3S-6S ) - Remote control signal PWM: 800us-2200us - Neutral Point: 1500us - Input plug: XT60 plug - Out plug: 4mm banana connector - Build in 24PCS MOS FET - "H" bridge structure - Continuous/Peak Current: forward 100A/640A, Backward 100A/640A - Rated Power: 1000W - Motor Limit: Drive ability at the same time at 12V: 6PCS 540, 6PCS 550,4PCS 775,4PCS 795,4PCS 895 or 2PCS 997 Motors Drive ability at the same time at 24V: 4PCS 775,4PCS 795,2PCS 895 or 2PCS 997 Motors -- Item Contains -- 1 piece of 100A ESC Brush Motor Speed Controller( Easy to use, no manual )

Brand:

plant driveline, systems, marine, water, controlled vehicles, controlled vehicle, 775, brush motor, vehicle parts, controller, cruise marine, 100a Remote & App Controlled Vehicles & Parts Remote & App Controlled Vehicle Parts Power Plant & Driveline Systems Electric Speed Controllers

Key Features

• ✓ Widely use for RC boat, RC tug boat, RC fishing bait boat, RC cruise, RC marine, RC car, RC hydroplane, toy boat spare parts etc.
• ✓ Suitable for 540, 550, 775, 795, 895, 997 brush motor.
• ✓ Automatically to find the neutral point, No throttle rang calibration required.
• ✓ Build in 5V/3A UBEC,It can drive 2PCS 25kg sovers.

Product Details

• ✓ Item Weight: 3 Pounds
• ✓ Material Type: compound material
