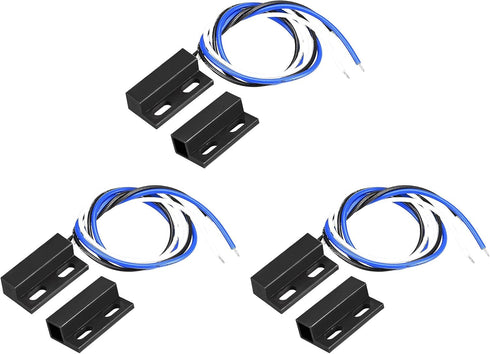

uxcell Wired Door Contact Window Sensor NO NC Surface Mount Magnetic Reed Switch, Black, 3 Pcs

uxcell Wired Door Contact Window Sensor NO NC Surface Mount Magnetic Reed Switch Black 3 Pcs

uxcell Wired Door Contact Window Sensor NO NC Surface Mount Magnetic Reed Switch, Black, 3 Pcs

Description Specification 1. The wire part should be fixed on the door frame, and the magnet part should be fixed on the movable door 2. The two-part should be aligned and installed in parallel, and the installation distance should be less than 1cm, otherwise, it will lead to induction failure or a short induction distance 3. Avoid using in the magnetic field and high current environment 4. It can only provide a switch signal to the device, which cannot directly load the power, nor directly connect the lamp!

Key Features

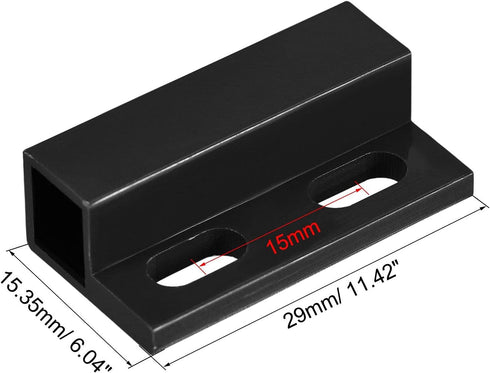

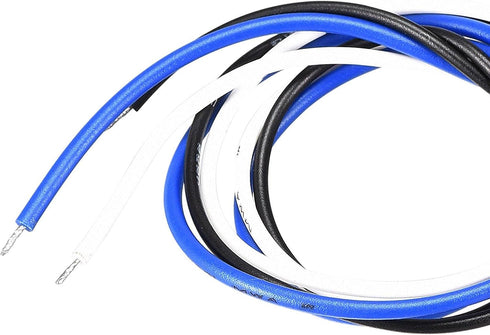

• ✅ [Specification] - Type: Normally Open (NO) Normally Closed (NC); Max Sensing Distance: 10mm; Cable Length: 30cm/ 11.8"; Total Size: 29x15.35mm/ 11.42" x 6.04" (L*W); Max. Current: 0.5A; Max. Voltage: 100V; Max. Power: 10W

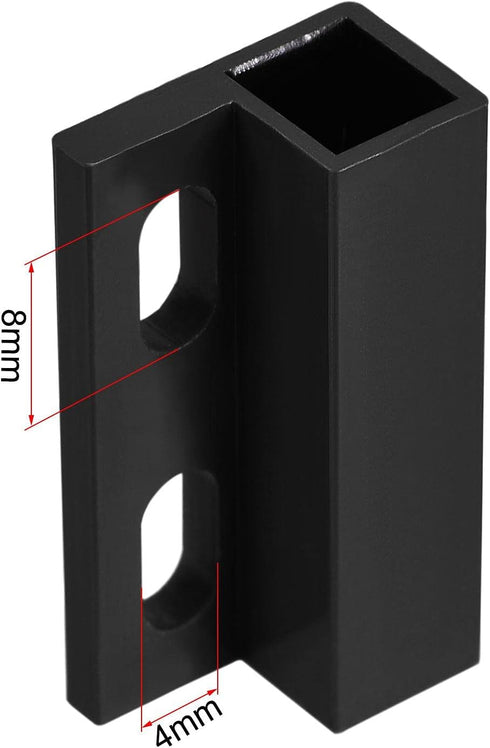

• ✅ [Installation Dimension] - Installation Hole Size: 8x4mm; Installation Hole Distance: 15mm
• ✅ [Durable Material] - The magnetic switch alarm is with durable PVC housing for better rust resistance
• ✅ [Normally Open] - NC means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ). NO means Normally Open: when the magnet separates, the circuit is conductive( light on ); When the magnet together, the circuit is not conductive ( light off ).
• ✅ [Applications] - The Wired Door Sensor is designed for use with window and door alarm systems, such as the garage, industrial warehouse, and shops, etc.

✅ Color: Black
