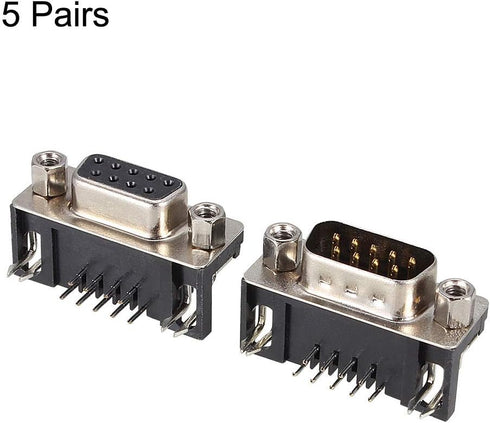

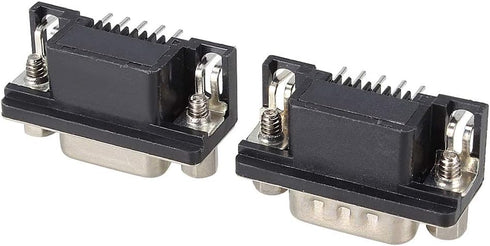

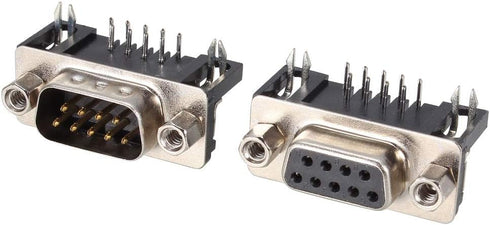

uxcell 5 Pairs DB9 RS232 Serial 9-Pin Male & Female Connector Jack Socket

uxcell 5 Pairs RS232 Serial DB9 DB-9 9-Pin Male & Female Connector Jack Socket

uxcell 5 Pairs DB9 RS232 Serial 9-Pin Male & Female Connector Jack Socket

Max.operation temperature: -55C to +105C Notice: Because of the screw holes, these 5Pcs Male and 5Pcs Female connectors don't fit each other. This DB9 9Pins dual row connector, pcb surface mount, used as computer communication interface. Pin 1 CD Received Line Signal Detector (Data Carrier Detect) Pin 2 RXD Received Data Pin 3 TXD Transmit Data Pin 4 DTR Data Terminal Ready Pin 5 GND Signal Ground Pin 6 DSR Data Set Ready Pin 7 RTS Request To Send Pin 8 CTS Clear To Send Pin 9 RI Ring Indicator

Key Features

• ✅ Product Name : DB9 Connector Jack;Type : DB9 9-Pin , 2-Row
• ✅ Each Dimension : 31 x 18 x 15mm/ 1.2" x 0.71" x 0.6"(L*W*H);Mount Hole Dia. : 3mm / 0.12"
• ✅ Mount Hole Center Distance : 24.5mm / 0.95";Material : Metal
• ✅ Color : Silver Tone, Black;Weight : 63g
• ✅ Package Content : 5 Pairs x DB9 Connector
