USB Cable Tester Board, USB Cable Checker Data Wire with Acrylic Case for Type-C, Micro, Type A, Type B

USB Cable Tester Board USB Cable Checker Data Wire with Acrylic Case Charging Test Data Line Type-C Micro Type A Type B

USB Cable Tester Board, USB Cable Checker Data Wire with Acrylic Case for Type-C, Micro, Type A, Type B

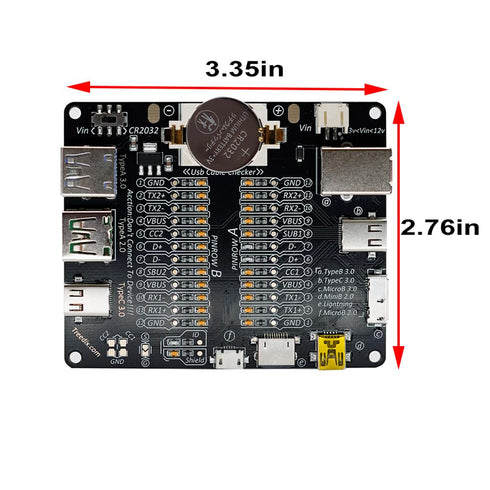

1. The USB cable tester is a reliable tool used to test the connection status and functionality of USB cables. 2. It features a simple and intuitive design. Users only need to plug the two ends of the USB cable to be tested into the corresponding connectors, and the LED indicators will display the functionality and connection status of the USB cable. This allows users to intuitively understand the cable's status, whether there are missing data transmission lines, high-speed transmission data TX/RX lines, or physical damage leading to disconnection. (Note: The cable's carrying capacity cannot be tested.) 3. PCB Size: 3.35 inches x 2.76 inches (85mm x 70mm) 4. Power: Power 1 - CR2032 button battery, Power 2 - Vin (external power supply)Vin range: 3-12v 5. Measurement types: TypeB 3.0, TypeB 2.0, TypeC 3.0/3.1/3.2, MicroB 3.0, MicroB 2.0, MiniB 2.0, and Lightning. Do you have a drawer full of USB cables and want to organize them, but don't know which ones are functional and which ones can be discarded? Now you can use our USB Cable Tester Board, which can easily help you identify the right USB cables. After testing and organizing your USB cables, you'll find it a breeze to locate the one you need. First, toggle the switch to your chosen power supply mode. Next, insert the USB cable into the corresponding USB port, and the LED indicators will light up, indicating the connection status and functionality of the USB cable. When GND and VBUS lights are on, it indicates that the USB data cable only has charging functionality. When GND, VBUS, D+, and D- lights are on, it indicates that the USB data cable has both charging and data transmission capabilities. When GND, TX2+, TX2-, VUBS, CC2, D+, and D- lights are on, it indicates that the USB data cable has both charging and high-speed data transmission capabilities. It is a USB 3.0, 3.1 or 3.2 cable. When all the lights are on (except for one D+ and one D-), it indicates that the USB data cable supports comprehensive functionality, including charging, data transmission, audio, and video transmission. The USB cable tester can detect whether there is a broken wire inside the cable. If a wire is disconnected, the corresponding LED will not light up. For example, if the D+ and D- data lines of the USB Type-C cable are cut, the D+ and D- LED indicators on the USB tester will not illuminate, as shown in the diagram. Because there are various types of USB cables, we are only showing a partial representation in the image, but the method for identifying USB data cables remains the same. Please refer to the image description for guidance. Thank you for your understanding!

Key Features

• ✅ ?Reliable USB cable tester?: The product can be used to test different types of USB cables, including TypeB 3.0, TypeB 2.0, TypeC 3.0 (TypeC 3.1/TypeC 3.2), MicroB 3.0, MicroB 2.0, MiniB 2.0, and Lightning.

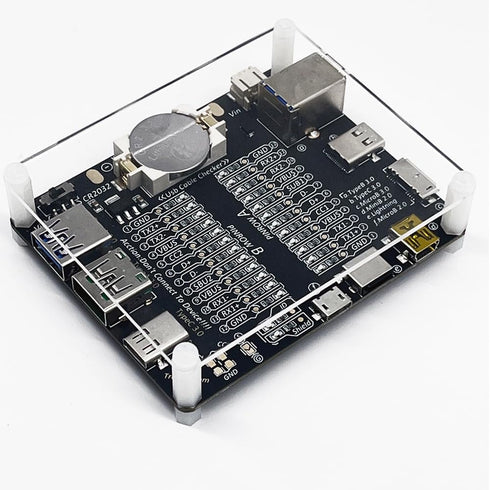

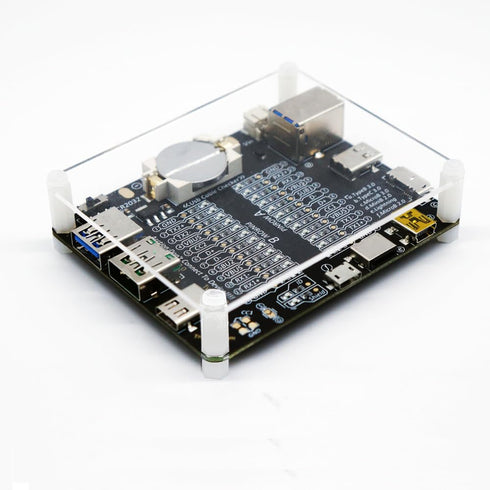

• ✅ ?Convenient and practical?: The product features a portable design, compact size, and is easy to carry and use.It's comes with an acrylic case to protect the usb cable tester from damage.

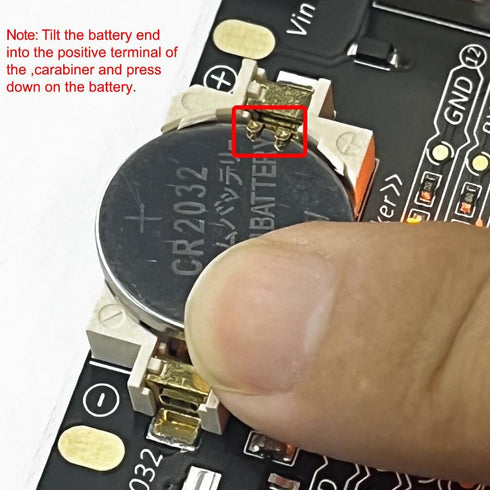

• ✅ ?Multiple power supply options?: Supports two power supply modes: CR2032 button battery or external power supply (Vin) within the range of 3-12V. Vin provides reverse connection protection.

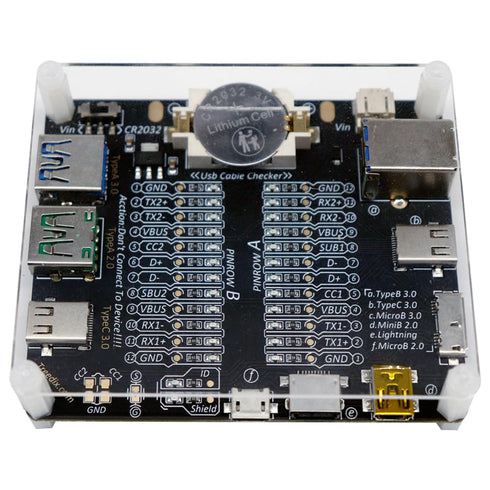

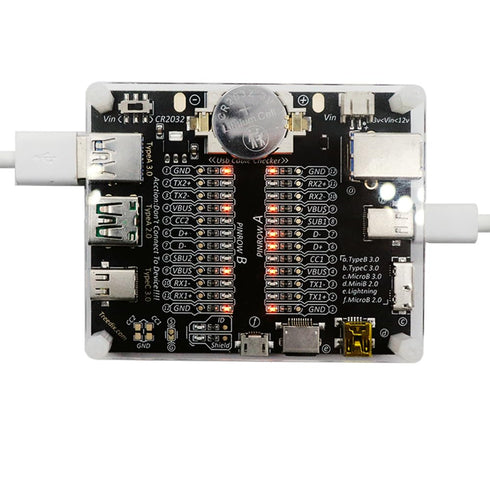

• ✅ ?LED indicator lights?: Test results are displayed through 24 LED indicators, with each pin corresponding to an LED light.
• ✅ ?Multi-functional and practical?: Supports multiple types of interfaces, allowing quick detection of data cable abnormalities and detection of internal short circuits that may interfere with normal operation.
