UMLIFE 10PCS 0.96" 12864 128x64 SSD1306 I2C (10PCS, OLED Module OLED Display Driver IIC Serial Self-Luminous Display

UMLIFE 10PCS 0.96" OLED Module 12864 128x64 OLED Display SSD1306 Driver I2C IIC Serial Self-Luminous Display Board Compatible with Arduino Raspberry PI (10PCS, Blue and Yellow)

UMLIFE 10PCS 0.96" 12864 128x64 SSD1306 I2C (10PCS, OLED Module OLED Display Driver IIC Serial Self-Luminous Display

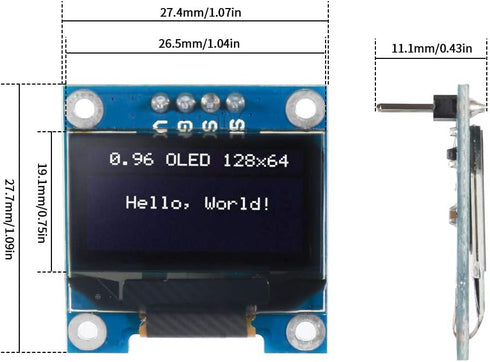

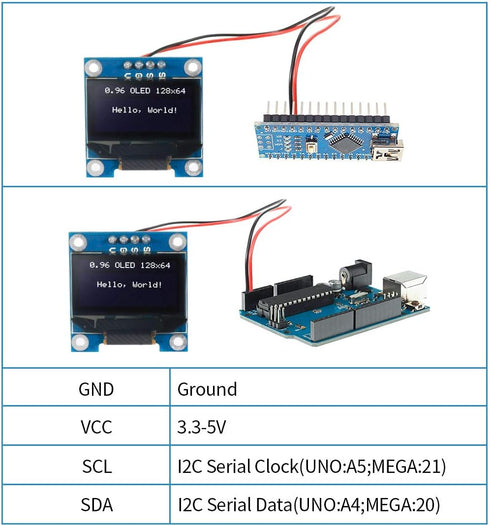

Specification: Size: 0.96 inch Driver IC: SSD1306 Voltage: 3.3V-5V DC Viewing angle: more than 160 degree High resolution: 128 x 64 Working Temperature: -30 to 70 degree Centigrade Display: white/ Blue/ Blue & Yellow Module size: 27 x 27 x 4 mm Screen material: glass, need good protection I2C Interface: GND: ground VCC: 3.3V-5V SCL: I2C serial clock (A5; MEGA: 21) SDA: I2C serial data (A4; MEGA: 20) Features: This OLED display module is small, only 0.96inch diagonal, it is made of 128x64 individual white OLED pixels, each one is turn on or off by the controller chip. The driver chip of this OLED is SSD1306, which is compatible with IIC communication. So this module can be controlled by I2C. That is, except the VCC and GND, 2 wires would be needed when using 4-wires I2C mode. There is also a simple switch-cap charge pump that turns 5v into a low voltage drive for the OLEDs, making this module the easiest ways to get an OLED into your project. Applications: MP3, MP4, watch, head-mounted displays, meters and other intelligent instruments. Design any pretty patterns for your beloved electronic devices.

Brand: UMLIFE

i2c iic, computers accessories, board, blue, oled module, module 12864, 10pcs blue, accessories computer, display board, i2c, 128x64, driver Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ Showing graphical and textual information directly on your micro-controller projects; Supports many chips: compatible with Arduino Mega, Raspberry pi, 51 MCU, STIM 32, etc.
• ✓ OLED self-luminous, no backlight: Needn't backlight, the display can self-luminous; It has high contrast, bright and crisp dots, even tiny fonts quite readable; No embedded fonts inside the OLED controller, user can create the fonts through the font generation software.
• ✓ Resolution: 128 x 64; View angle: more than 160 degree; Support voltage: 3.3V-5V DC; Power consumption: 0.04W during normal operation, full screen lit 0.08W.
• ✓ Embedded driver IC: SSD1306; Communication: I2C/IIC Interface, only need 2 I/O ports; Compatible with MMDVM, Pi-Star, and it is compatible with Raspberry pi.

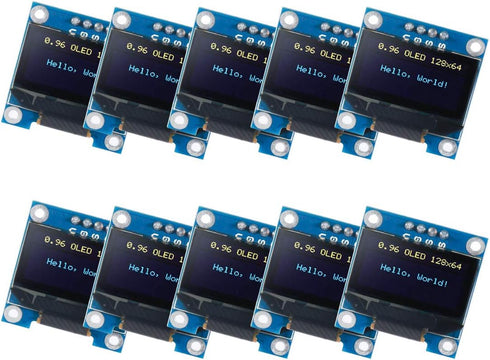

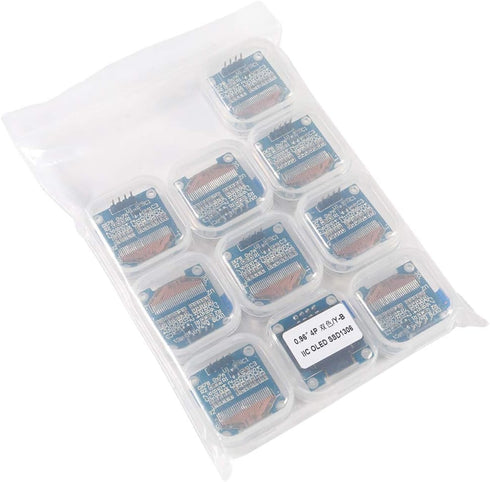

• ✓ Package Included: 10 * 0.96 Inch OLED Module.

Product Details

• ✓ Model Number: UMLIFE-OLED
