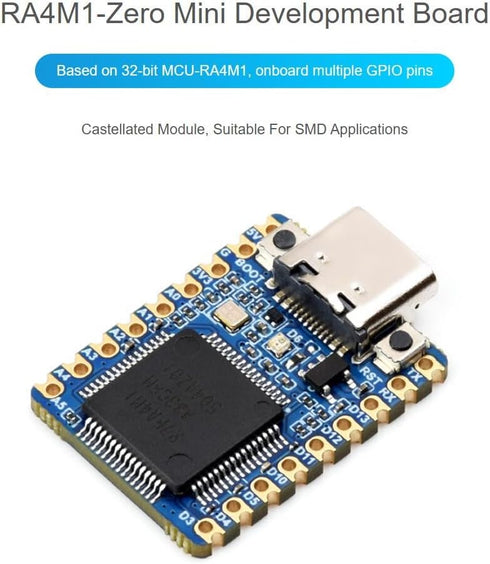

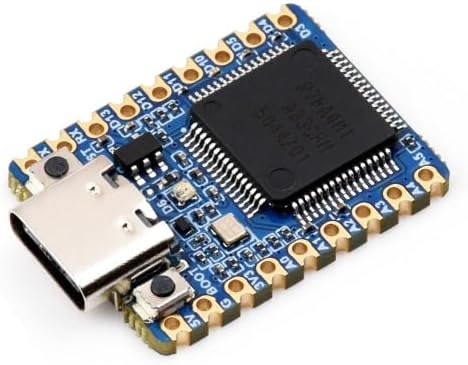

TUOPUONE RA4M1-Zero 32-bit MCU-RA4M1, 48MHz Mini Development Board, Based On Operating Frequency, Built-in FPU

RA4M1-Zero Mini Development Board, Based On 32-bit MCU-RA4M1, 48MHz Operating Frequency, Built-in FPU, Supports Firmware Encryption, Without Pre-soldered Header

TUOPUONE RA4M1-Zero 32-bit MCU-RA4M1, 48MHz Mini Development Board, Based On Operating Frequency, Built-in FPU

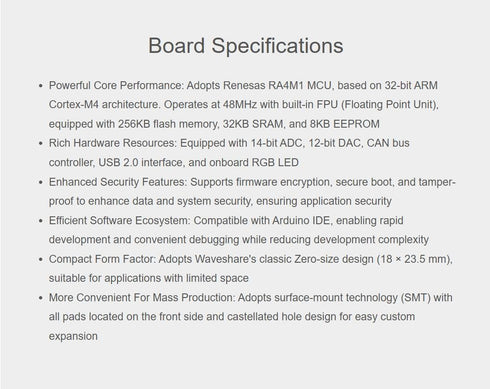

Board specifications Powerful Core Performance: Adopts Renesas RA4M1 MCU, based on 32-bit ARM Cortex-M4 architecture. Operates at 48MHz with built-in FPU (Floating Point Unit), equipped with 256KB flash memory, 32KB SRAM, and 8KB EEPROM. Rich Hardware Resources: Equipped with 14-bit ADC, 12-bit DAC, CAN bus controller, USB 2.0 interface, and onboard RGB LED. Enhanced Security Features: Supports firmware encryption, secure boot, and tamper-proof to enhance data and system security, ensuring application security. Efficient Software Ecosystem: Compatible with Arduino IDE, enabling rapid development and convenient debugging while reducing development complexity. Compact Form Factor: Adopts Waveshare's classic Zero-size design (18 23.5 mm), suitable for applications with limited space. More Convenient For Mass Production: Adopts surface-mount technology (SMT) with all pads located on the front side and castellated hole design for easy custom expansion. Package Content 1. RA4M1-Zero x1

Brand: TUOPUONE

fpu supports, pre soldered, computers, mcu, based, bit, soldered header, development, header, header electronics, 48mhz, board Electronics Computers & Accessories Computer Components Internal Components

Key Features

• ✅ Powerful Core Performance: Adopts Renesas RA4M1 MCU, based on 32-bit ARM Cortex-M4 architecture. Operates at 48MHz with built-in FPU (Floating Point Unit), equipped with 256KB flash memory, 32KB SRAM, and 8KB EEPROM.
• ✅ Rich Hardware Resources: Equipped with 14-bit ADC, 12-bit DAC, CAN bus controller, USB 2.0 interface, and onboard RGB LED.
• ✅ Enhanced Security Features: Supports firmware encryption, secure boot, and tamper-proof to enhance data and system security, ensuring application security.

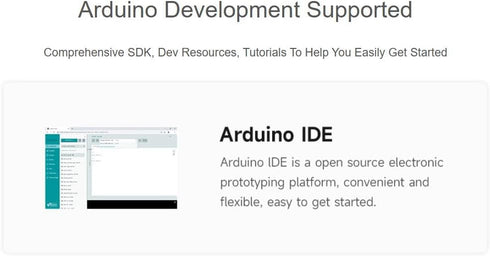

• ✅ Efficient Software Ecosystem: Compatible with Arduino IDE, enabling rapid development and convenient debugging while reducing development complexity.

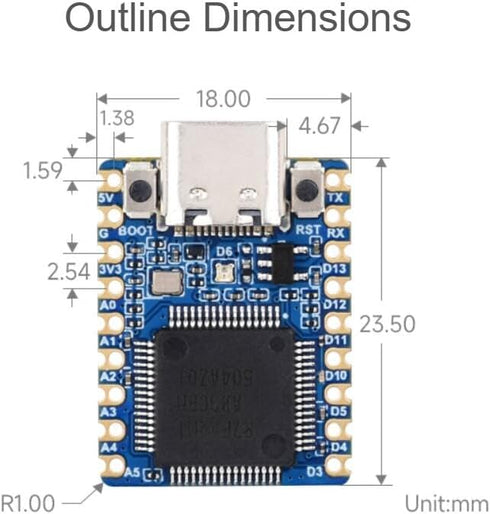

• ✅ Compact Form Factor: Adopts Waveshare's classic Zero-size design (18 23.5 mm), suitable for applications with limited space.
• ✅ More Convenient For Mass Production: Adopts surface-mount technology (SMT) with all pads located on the front side and castellated hole design for easy custom expansion.

Product Details

• ✅ Item Weight: 0.01 Kilograms
• ✅ Model Number: RA4M1-Zero
