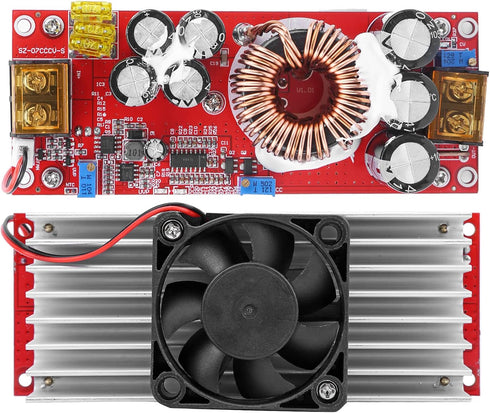

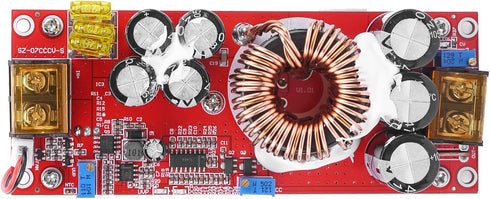

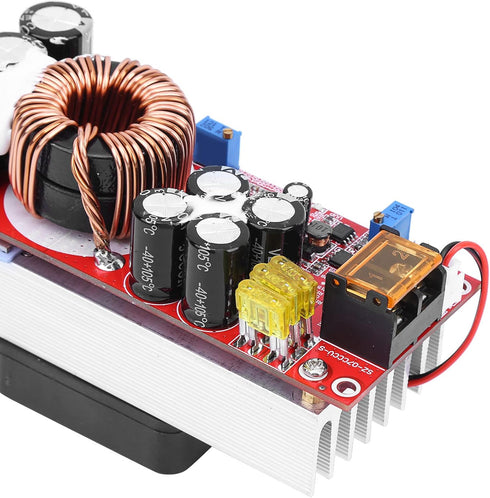

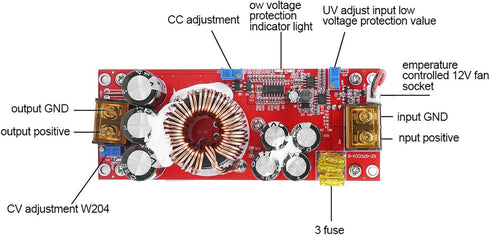

TIKATARER 1500W 10 60V 12 97V DC DC Boost Converter, to Step Up Power Module, with Smart Temperature Control Fan

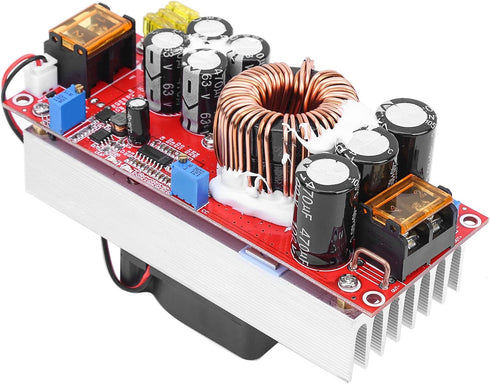

1500W DC DC Boost Converter, 10 60V to 12 97V Step Up Power Module, with Smart Temperature Control Fan, for Solar Street Lamp LED Lighting Vehicle Mounted Power Supply

TIKATARER 1500W 10 60V 12 97V DC DC Boost Converter, to Step Up Power Module, with Smart Temperature Control Fan

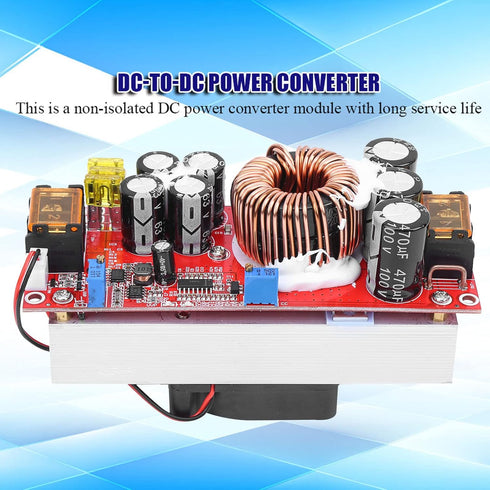

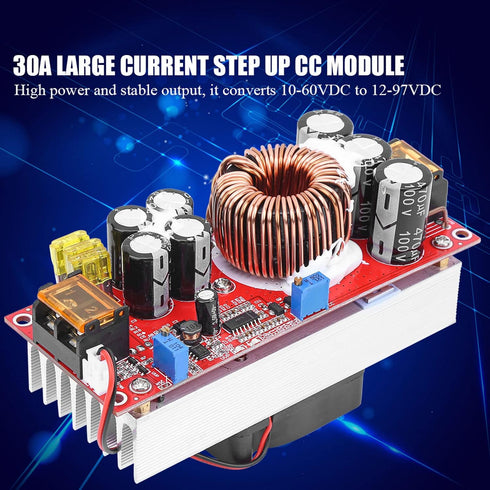

Specification: Name: 1500W step up constant current module Type: Nonisolated stepup module (BOOST) Input Voltage: DC10V to 60V Package list: 1 x Module Input Current: 10V30V input voltage, maximum current is 35A40A; 3160V input voltage, maximum current is 30A35A Quiescent Current: 15mA(when convert 12V to 20V, higher output voltage will increase quiescent current) Output Voltage: 1297V continuously adjustable (cannot be used to step down voltage) Output Current: 22A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A) Constant Current Range: 0.822A(+/0.3A) Reverse Input Protection: Yes (150A power MOS reverse protection) Input Low Voltage Protection: Yes (10V50V adjustable, selfrecovery) Operating Temperature: 40 to 85(if temperature is too high, please enhance heat dissipation) Frequency: 150KHz Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be) Input Over Current Protection: Yes (automatically protect when input is more than 40A, and power supply voltage will not increase) Short Circuit Protection: Yes (input 60A fuze) please operate carefully, try not to cause short circuit. Reverse Input Protection: Yes ((150A power MOS tube, can be connected reversely for long time) Installation Method: Four 3mm standoffs Wiring Method: Terminal blocks (Please use large current copper wire) Output Power: Maximum Output Power = Input Voltage*30A(If input 12V, the maximum output power=12V*30A = 360W) (If input 24V, the maximum output power=24V*30A = 720W) Weight: 372g / 13.1oz (approx.)

Brand: TIKATARER

solar street, 97v, mounted, fan, temperature, 97v step, lamp led, 1500w boost, converter 60v, lighting, 60v 97v, control fan Electronics Power Accessories Power Converters

Key Features

• ✅ [Safety & Protection] Designed with multiple protective features including reverse input protection low voltage protection and over current safeguards. ensures safe operation and prevents damage to your equipment.

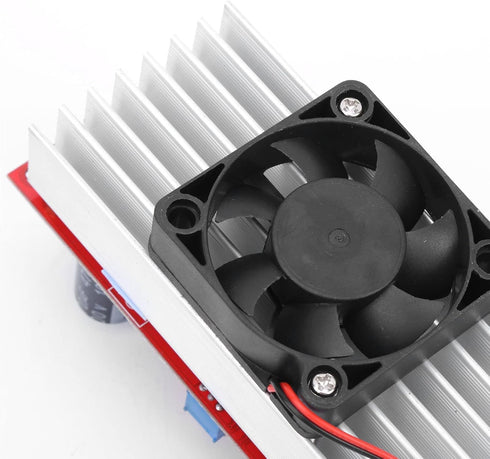

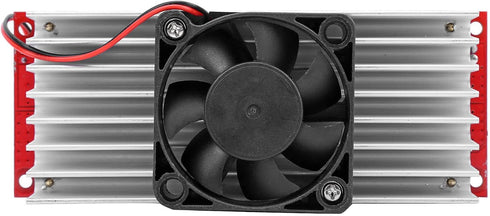

• ✅ [Smart Temperature Control] Equipped with an intelligent cooling system the fan activates at 60c and stops when temperatures drop ensuring optimal operation without overheating. ideal for continuous high load usage.
• ✅ [High Power Conversion] Transform your power supply with this robust 1500w dc dc boost converter capable of stepping up voltage from 10 60v to 12 97v. perfect for high demand applications requiring stable and efficient power conversion.
• ✅ [Efficiency & Reliability] Experience up to 97% conversion efficiency thanks to good quality components ensuring minimal energy loss. this module is built for longevity and consistent performance even in demanding environments.
• ✅ [Versatile Applications] From solar street lamps and led lighting to vehicle mounted devices and diy power supplies this converter supports a wide range of uses. its also great for charging various batteries and mobile devices.

Product Details

• ✅ Model Number: TIKATARER58wgdjtl74
