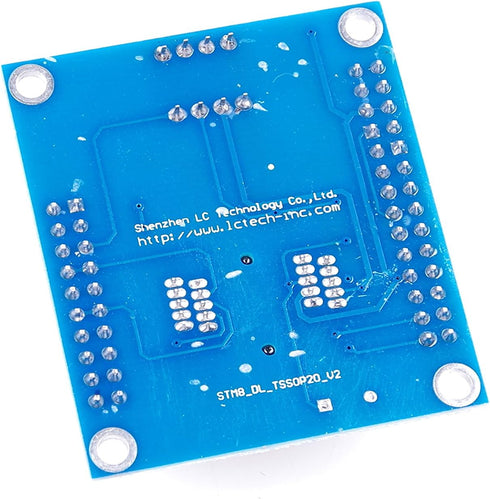

STEM8S 8L TSSOP20 Programming Block Test Station, Download Programmer, Offline Programmer Block

STEM8S 8L TSSOP20 Programming Block Test Station Download Programmer Offline Programmer Block

STEM8S 8L TSSOP20 Programming Block Test Station, Download Programmer, Offline Programmer Block

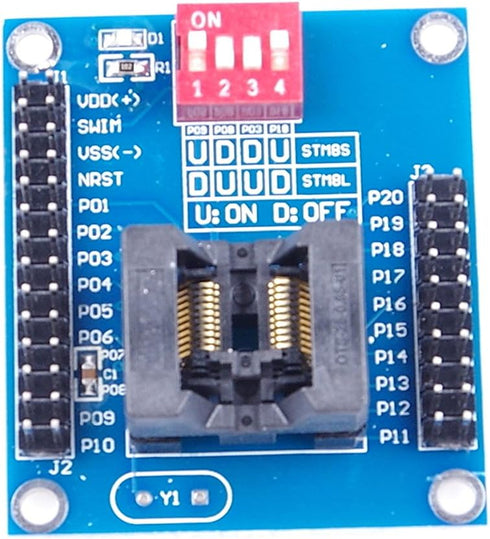

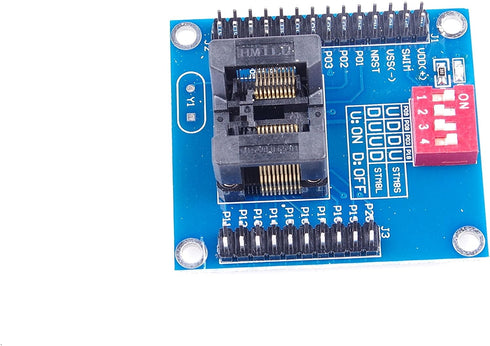

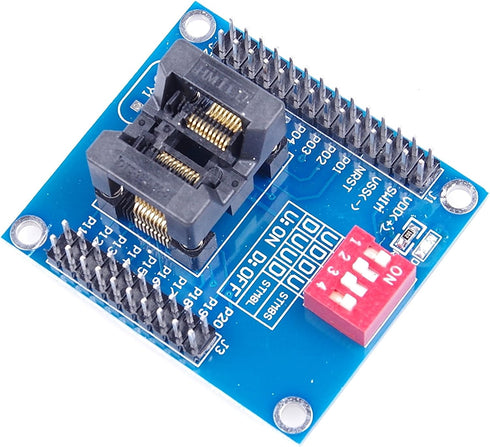

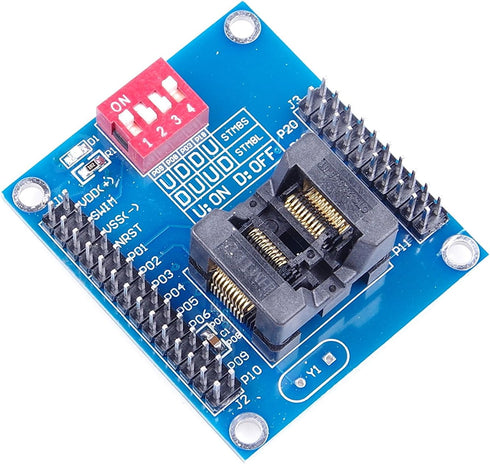

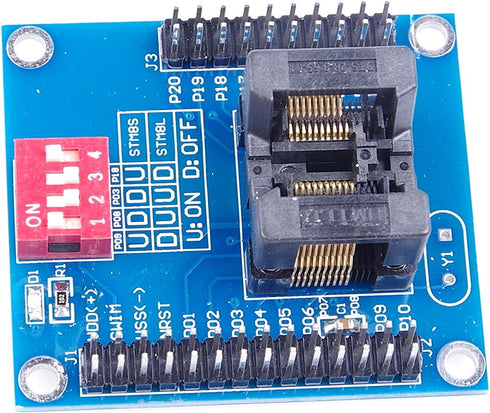

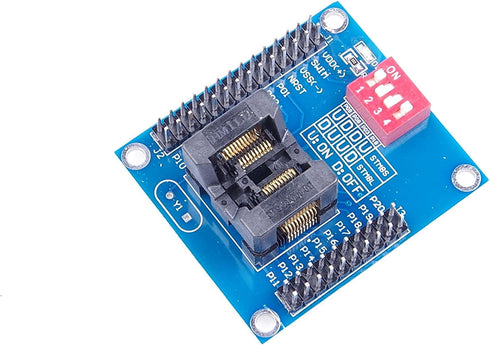

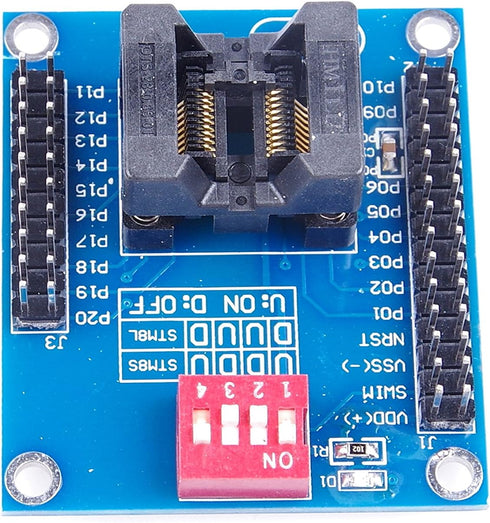

SWIM interface: Through the SWIM interface, directly to the relevant models of the chip test, burn DIP switch: Select the STMS or STM8L by 4 DIP switch, clean and beautiful Other parameters: Crystal oscillator can be freely replaced by the user, all I / O pin from 2.54 double pin, user-friendly circuit. According to the chip type, the 4-digit dialing switch is put to the corresponding position. When the chip is STM8S series, the switch position is U D D U; when the chip is STM8L series, the switch position is D U U D, where U represents upward dialing and D represents downward dialing. Connect the 3.3V, SWIM, GND and RST pins on the ST-LINK to the VDD (+), SWIM, VSS (-) and NRST pins on the board to program the program. The supported models are S003, S903, S103 and L101 , L151, L051 series of packages for the STM8 microcontroller TSSOP20.

Key Features

• ✅ SWIM interface: Through the SWIM interface, directly to the relevant models of the chip test, burn
• ✅ DIP switch: Select the STMS or STM8L by 4 DIP switch, clean and beautiful
• ✅ Other parameters: Crystal oscillator can be freely replaced by the user, all I / O pin from 2.54 double pin, user-friendly circuit.
