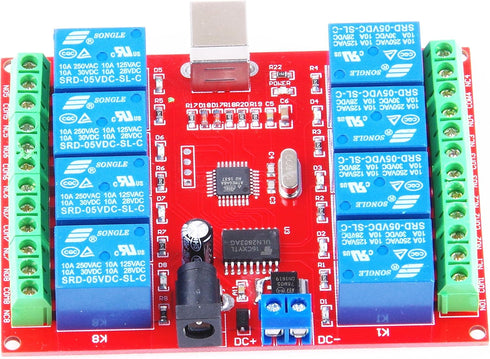

SRD-05VDC-SL-C 8-Way 5V Relay Module, Free Driver USB Control Switch for Intelligent Control

SRD-05VDC-SL-C 8-Way 5V Relay Module Free Driver USB Control Switch PC Intelligent Control (5V 8-Channel)

SRD-05VDC-SL-C 8-Way 5V Relay Module, Free Driver USB Control Switch for Intelligent Control

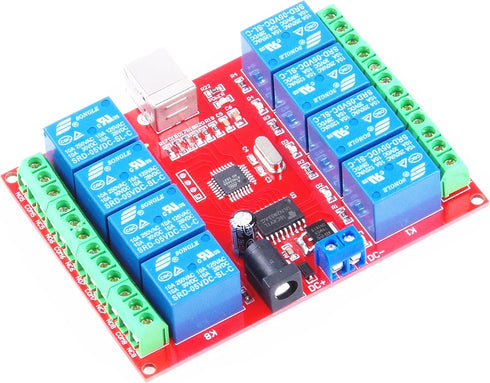

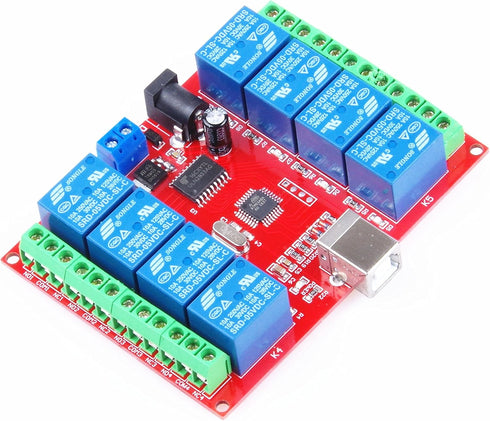

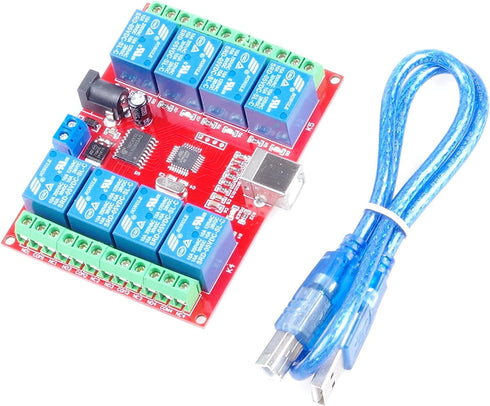

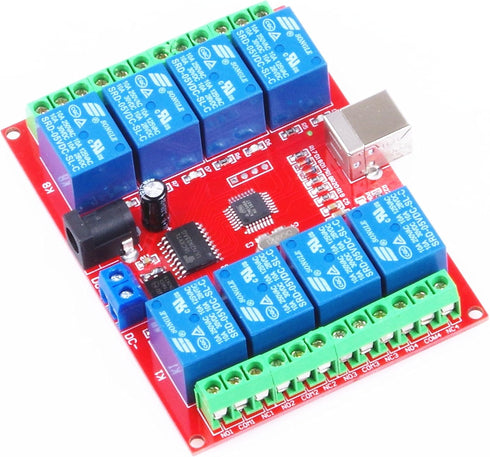

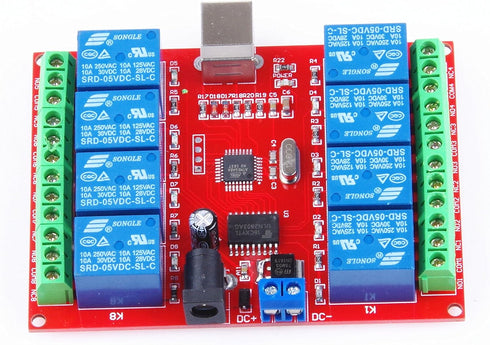

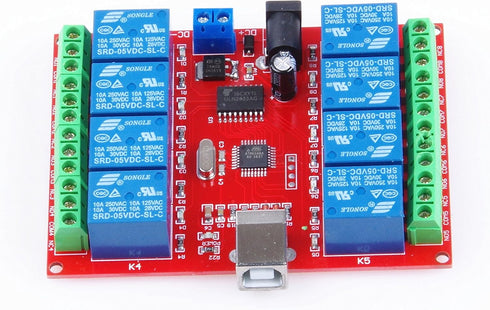

APP Download: https://www.amazon.com/clouddrive/share/8Qn3vw8915JaZiv5bYzuBJWg1Ic4kibOcus1BhTJcrS This is USB controlled relay module with 8 relays SRD-05VDC-SL-C. You may use it for simple ON/OFF switching electrical devices - home lights, DC motors, solenoids and others. It may help you building projects like robotics and home Automation. Each such board requires one USB port. The more USB ports you have the more Relay boards you may connect. You may use it with our software( universal software for all our relay boards). Specification * Relay specification: 10A 250VAC/10A 125VAC/10A 30VDC/10A 28VDC * Power Supply: 5V DC *Relay type: 5V relay *Contack type: NC / COM / NO *Input current: =300mA *Input voltage: DC 5V *Max load: AC250V/10A or DC30V/10A *Support Win XP/Win7/Win8 32-bit systems * Current consumption: 300 mA * Led for each relay output: Power Led / USB led * Size: 93mm / 70mm / 16mm * Windows software examples: VB6, BCB6, Java (netbeans), VB.NET 2010 Express, C++.NET 2010 Express * PCB parameters: FR4 / 1.5mm / two layers / metalized holes / HAL / white stamp / solder mask Application: Robotics control Home automation Control doors and windows via windows system Controller power supply Package included: 1 x 8 channels USB relay Note: * When the board is connected to the PC and the PC is restarted, the relays will be toggled several times. This is because of the structure of the FTDI chip. * The device must be supplied with 5 VDC or order to work. * There is no protection against reversed voltage! If the VCC(+05V) and GND are reversed the board will be damaged! * The board can not work without computer. * If you need our software, please contact our customer service via email.

Key Features

• ✅ If you nedd the soft and C++ code to control this device, just contact us on amazon!
• ✅ The module uses HID technology, without any drivers, plug and play. Support WIN7/XP 32/64-bit systems, easy to use and simple.
• ✅ High-performance USB controller chip, military grade PCB board production
• ✅ 5V relay, the relay can control the maximum 250V 10A AC load and 30V 10A DC load.

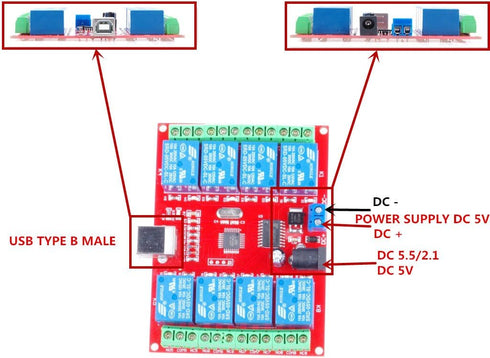

• ✅ Reserved 4, 8-way power interface, connected to power, even if the computer off or unplug the USB from the computer, you can also relay remains set. 1-way and 2-way no power connector.
