SinLoon VGA DB15 Solderless Connector 3+9 D-SUB 15 Pin VGA Breakout Board Adaptor with Case + Screwdriver (2-Pack Male)

SinLoon VGA DB15 Solderless Connector 3+9 D-SUB 15 Pin VGA 3 Row Breakout Board Adaptor with Case+Screwdriver(2-Pack Male)

SinLoon VGA DB15 Solderless Connector 3+9 D-SUB 15 Pin VGA Breakout Board Adaptor with Case + Screwdriver (2-Pack Male)

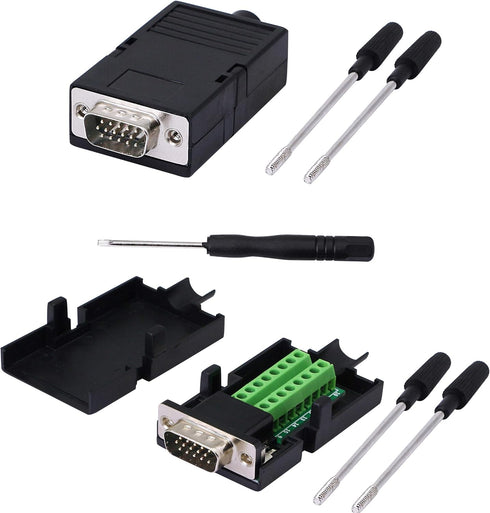

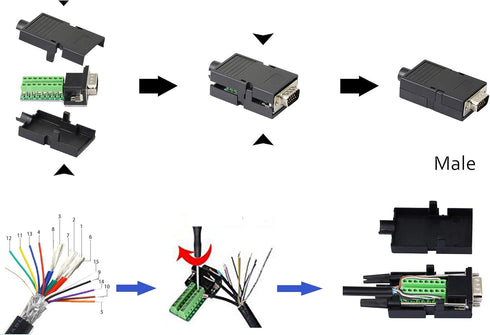

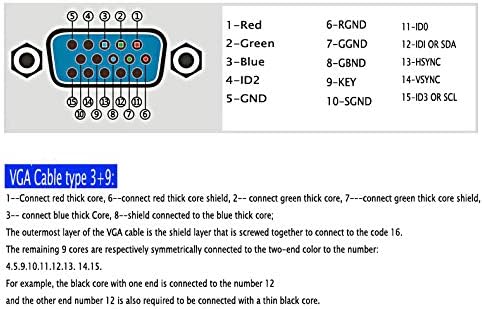

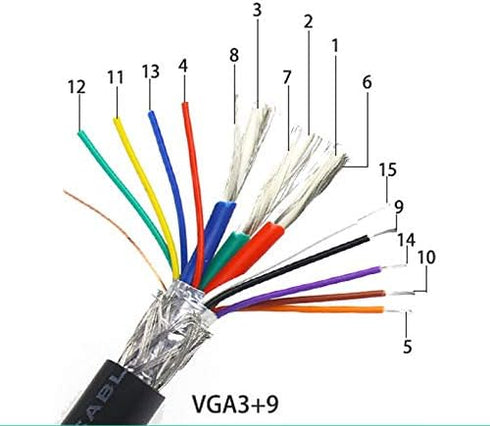

Features: 1.SinLoon this VGA DB15Pin 3 Row breakout adapter is solderless. No soldering or crimping required. 2. Equipped with a special screwdriver to open the case of the adapter and install the vga cable core on the PCB. 3.The wire board is printed with wire number which is convenient for quick wiring. 4. SinLoon this VGA 15Pin breakout adapter is connected type VGA 3+9: it can be used for automatic control equipment, industrial control equipment, cash register, tax control machine, computer, HDTV, LCD monitor ,etc Connectors: VGA 15 pin male 15 3+9 pin terminal block 1--Connect red thick core, 6--connect red thick core shield, 2-- connect green thick core, 7---connect green thick core shield, 3-- connect blue thick Core, 8--shield connected to the blue thick core; The outermost layer of the VGA cable is the shield layer that is screwed together to connect to the code 16. The remaining 9 cores are respectively symmetrically connected to the two-end color to the number: 4.5.9.10.11.12.13. 14.15. For example, the black core with one end is connected to the number 12 and the other end number 12 is also required to be connected with a thin black core. 2pcs VGA 15 pin male Solderless adapter with case and 1pcs Screwdriver. 62x34x17mm(LxWxH)/2.44x1.34x0.66 inch VGA 15Pin male Extend the VGA cable as you need automatic control equipment, industrial control equipment, cash register, tax control machine, computer, HDTV, LCD monitor Duplicated-Mirror Dual Monitor Support 3D Full HD 4K Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store

Key Features

• ✅ Connectors: VGA 15 pin adapter ;Model type: 3+9 male 3 row;Pure copper gold plated terminals, not attenuation signal.

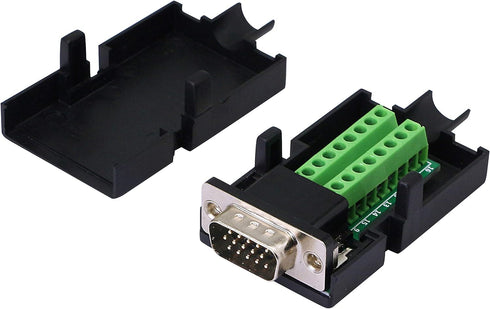

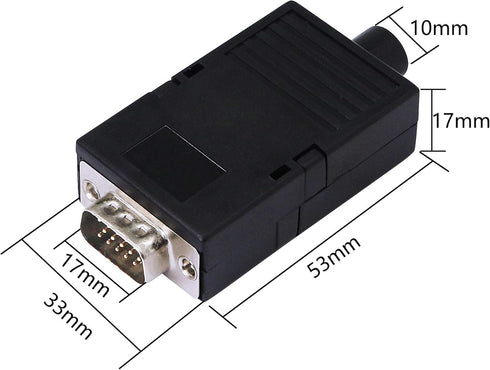

• ✅ Snap-on ABS housing Size: 62x34x17mm(LxWxH)/2.44x1.34x0.66 inch;Wire Hole Diameter: 10mm/0.39 inch.

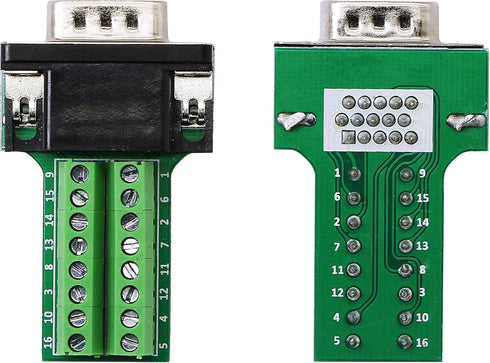

• ✅ This breakout adapter is solderless. Suitable for VGA Cable type: 3+9 pin terminal block; Mounting,The wire board is printed with wire number which is convenient for quick wiring.
• ✅ Page:2pcs VGA 15 pin male Solderless adapter with case and Screwdriver.
• ✅ The SinLoon VGA Solderless D-SUB 15 Pin Male Connector can be used for automatic control equipment, industrial control equipment, cash register, tax control machine,and for high-quality signal transmission between desktop computers, notebooks, all-in-ones, HD DVDs, digital HD set-top boxes, X-BOX360/PS3, game consoles, digital cameras, camcorders, LCD HD projectors, LCD monitors, and high-definition digital TVs, etc.
