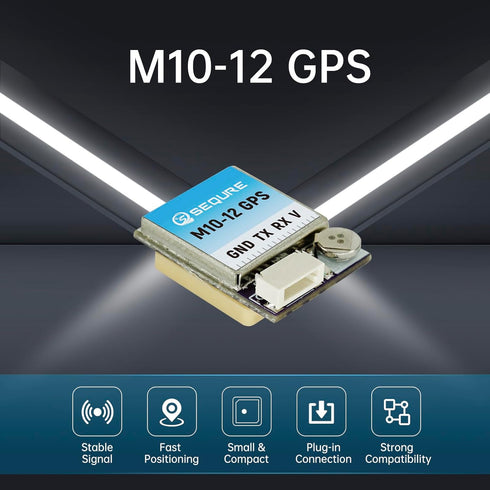

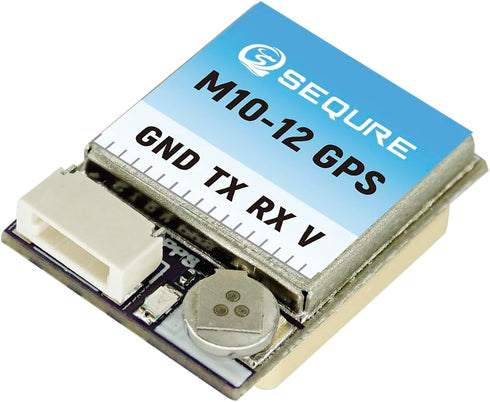

SEQURE M10-12 10th 10Hz Mini FPV GPS Module with Upgraded Generation Chip Ceramic Antenna Fast Satellite Positioning

SEQURE M10-12 Mini FPV GPS Module with Upgraded 10th Generation Chip Ceramic Antenna Fast Satellite Positioning for FPV Racing Drones 10Hz Frequency

SEQURE M10-12 10th 10Hz Mini FPV GPS Module with Upgraded Generation Chip Ceramic Antenna Fast Satellite Positioning

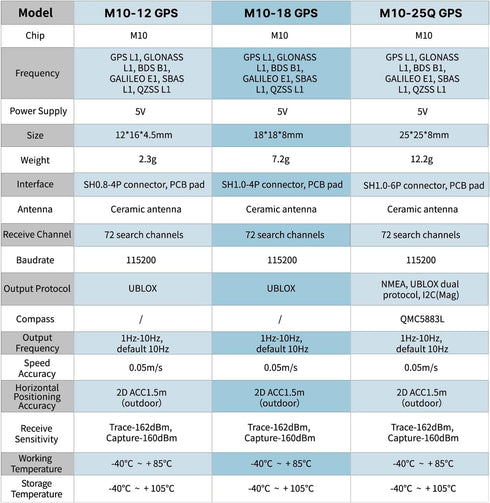

SEQURE M10-12 Mini GPS Module For FPV Racing Drones Fixed Wing UAV Specification: Model: M10-12 GPS Chip: M10 Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 Power supply: 5V Size: 12*16*4.5mm Weight: 2.3g Interface: SH0.8-4P connector, PCB pad Antenna: Ceramic Antenna Receiving channels: 72 search channels Baud rate: 115200 Output protocol: UBX Output frequency: 1Hz-10Hz, default 10Hz Speed accuracy: 0.05m/s Horizontal positioning accuracy: 2D ACC1.5mopen-air Receive sensitivity: Trace-162dBm, capture-160dBm Working temperature: -40 + 85 Storage temperature: -40 + 105 Features: M10-12 GPS is recommended for BF firmware. Adopts 10th generation chip, u-blox output protocol, and 10Hz output frequency, lower power consumption, and fast positioning. High-quality ceramic antenna with strong performance and effective reception of satellite signals. Miniaturized and multi-specification design, easy to install, suitable for the installation of drones of various sizes on the market. 2 connection methods: direct plug-in and soldering pad, with strong compatibility.

Brand: SEQURE

antenna, satellite positioning, 10hz frequency, generation chip, module upgraded, gps system, antenna fast, generation, chip, racing drones, sequre, upgraded Electronics GPS, Finders & Accessories GPS System Accessories Antennas

Key Features

• ✓ Upgraded Using the new 10th generation UBX chip design, fast positioning in any place. 10Hz Output frequency, lower power consumption.

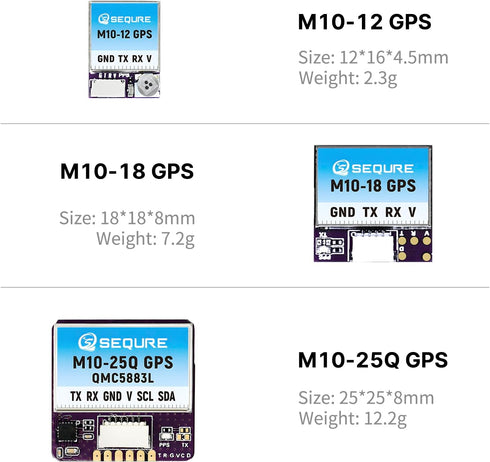

• ✓ Mini & Lightweight 12*16*4.5mm, only 2.3g. Wide application, compatible with 2-4 inch traversal Drones.

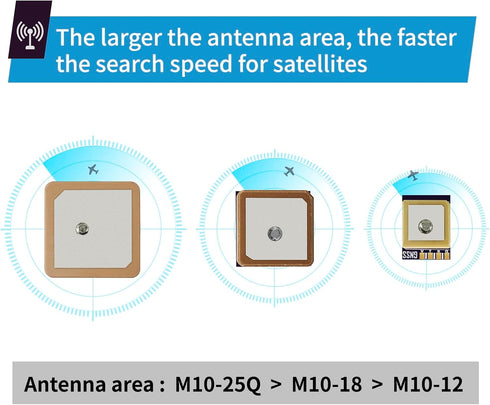

• ✓ Stable Signal Equipped with ceramic antenna and externally expanded PCB design, ensure fast and effective satellite signals.
• ✓ More Position Modes Support GPS, GLONASS, BDS, GALILEO, SBAS, and QZSS. You can choose it according to your project requirements.

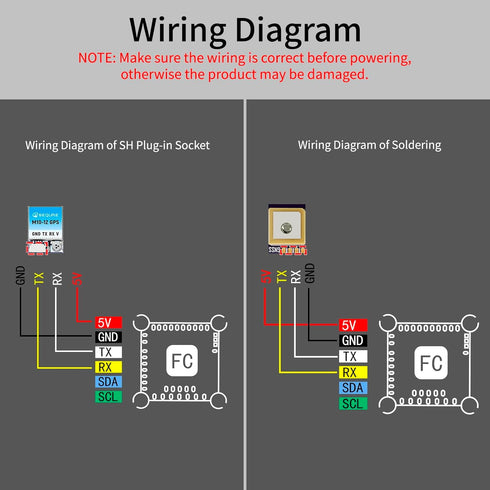

• ✓ Plug & Play 2 connection methods. Plug and play, no need to solder. The other is soldering. Convenient and easy to use.

Product Details

• ✓ Color: Black
