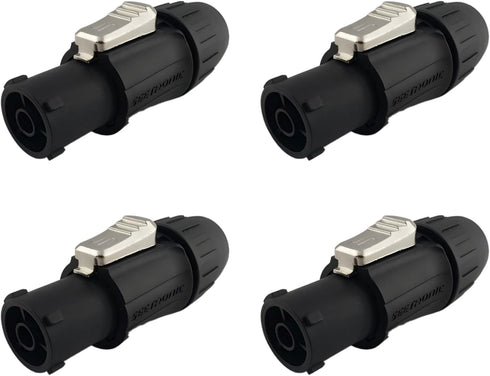

Seetronic X Series IP65 Waterproof Power Connectors (SAC3FX, 4 Pack)

Seetronic X Series IP65 Waterproof Power Connectors (SAC3FX, 4 Pack)

Seetronic X Series IP65 Waterproof Power Connectors (SAC3FX, 4 Pack)

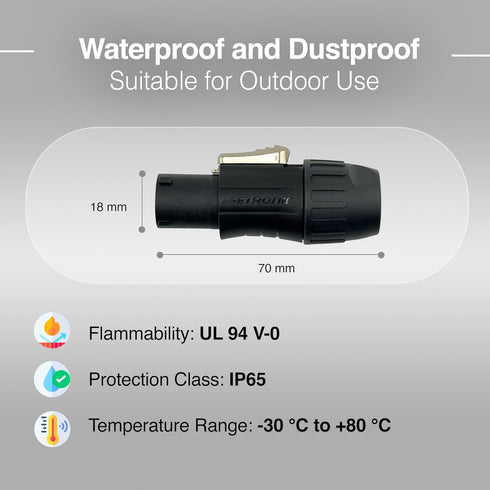

Used for electrical connection under outdoor conditions. The protection grade is IP65. Fast and easy locking system, the keys are firm and do not fall off Lockable three-core device (AC) connector with contacts for linear, neutral, and pre-adapted safety grounding. High current capacity 16A/250V AC VDE 20A/300V AC UL UL498; UL50E Certification No.: E356932 VDE Certification No.: 40044166 Details A Number of Contacts 2 + PE Rated Current 16A VDE(20A UL) Rated Voltage 250V AC VDE (300V AC UL) Contact Resistance = 5 mO Dielectric Strength 4000V DC(1600V/min AC UL) Insulation Resistance > 1000 MO Mechanical Parameters Service life > 1000 mating cycles Cable Size 2.5 mm2(12AWG) Cable OD 7-11 mm Type of Terminals Screw type terminals Material and Environmental Parameters Housing PA Contacts Cu alloy Contact surface Ag Protection degree IP65 Flame retardant rating UL94V-0 Temperature range -30°C ~ +80°C Standards and Certifications Standards UL498 | UL50E | IEC61984 | IEC60320-1 | GB/T 34989 |PSE Certifications UL: E356932 VDE: 40044166 TUV:AN505384440001 CQC:CQC23003410681 PSE:JET7938-43004-1001

Key Features

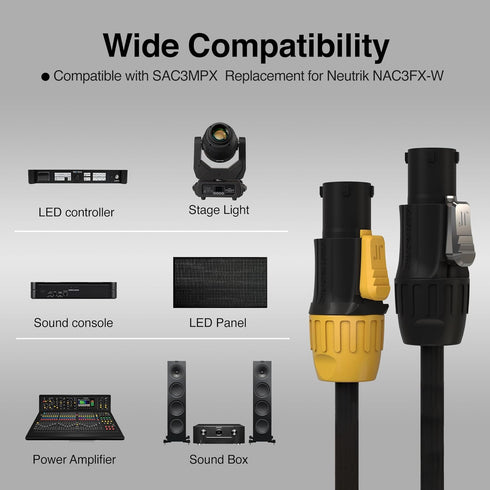

• ✅ Match with SAC3MX plug orSAC3MPX/SAC3MPX-LY socket

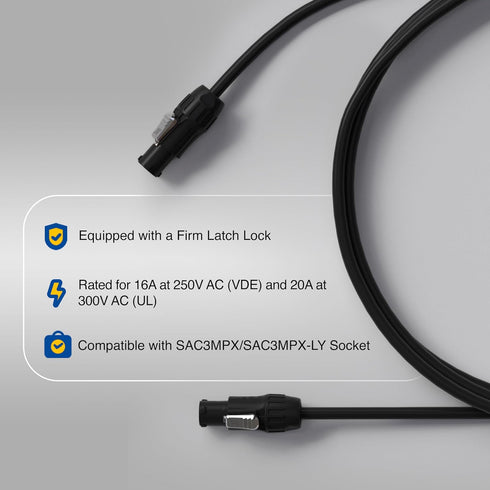

• ✅ High current capacity rated at 16A/250V AC VDE and 20A/300V AC UL

✅ Product Dimensions: 3.53 x 1.06 x 1.23 inches
