seeed studio 0.96 (SSD1315) -3.3V/5V I2C 12864 Grove - OLED Yellow&Blue Display - SPI/IIC with and SPI, Blue and Yellow

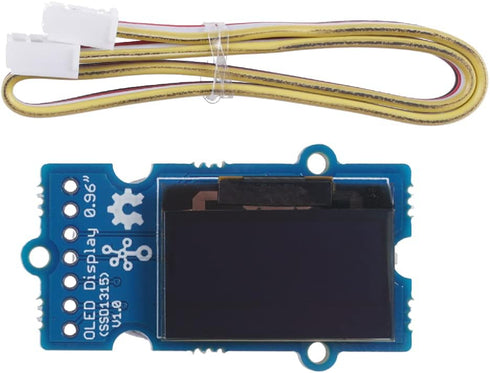

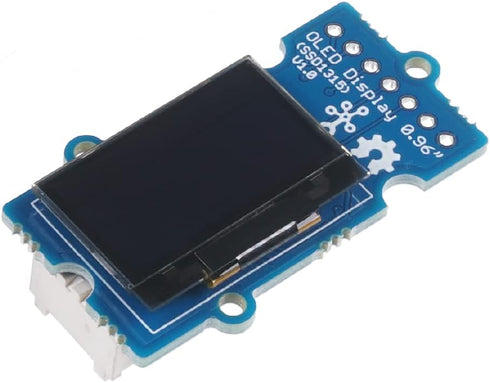

Seeed Studio Grove - OLED Yellow&Blue Display 0.96 (SSD1315) - SPI/IIC -3.3V/5V with I2C and SPI, Blue and Yellow Bi-Colour Display with 12864 Resolution.

seeed studio 0.96 (SSD1315) -3.3V/5V I2C 12864 Grove - OLED Yellow&Blue Display - SPI/IIC with and SPI, Blue and Yellow

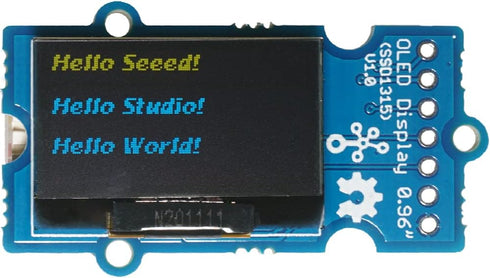

Key Features:1.3.3V/5V power supply compatible2.Changeable I2C address3.SPI available4.Low power consumption5.Yellow and Blue two-colour 12864 pixels6.High contrast, high brightness7.Wide operating temperature range: -40 ~ +85 8.Grove connector is hidden on the backThe Grove - OLED Yellow&Blue Display 0.96 (SSD1315) is a blue and yellow bi-colour display with 128*64 resolution. Compared with LCDs, there are many advantages of OLED(Organic Light Emitting Diode) like self-emission, high contrast ratio, slim/thin outline, wide viewing angle and low power consumption. The display works on both 3.3V and 5V supply voltage. You can use either the I2C or SPI interface to light up the display with your microcontroller to display words, images, and whatever you want. SPI helps to get the quicker images reaction which brings a better product experience. Thanks to suggestions from @Scott Bridges and @Paul Rodgers, we put the grove connector on the back. Such a user-friendly design helps easily hide the connecting wires and makes a pretty production display.Specification:Parameter: ValueInput voltage: 3.3V / 5VOutput Voltage: 0 ~ 2.3VPixels: 128 x 64Temperature Range: -40 ~ +85 Interface: I2C/SPI

Brand: seeed studio

ssd1315, resolution, seeed studio, 12864, studio, 12864 resolution, oled, spi blue, computer components, display ssd1315, iic i2c, display Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ Clear display This OLED display 1.12'' V2, a monochrome(white) 12864 pixels blue and yellow bi-colour display matrix module with Grove I2Cand SPI Interface. High contrast, high brightness.
• ✓ Wide Power Matching There are many advantages of OLED(Organic Light Emitting Diode) like self-emission, high contrast ratio, slim/thin outline, wide viewing angle and low power consumption. The display works on both 3.3V and 5V supply voltage.
• ✓ Changeable Address Grove - OLED display module with Grove I2C Interface, and also SPI available. You can use either the I2C or SPI interface to light up the display with your microcontroller to display words, images, and whatever you want. SPI helps to get the quicker images reaction which brings a better product experience.
• ✓ Wide Temperature Range Grove - OLED has wide operating temperature range from -40 to +85 , help you work in various temperature situations.

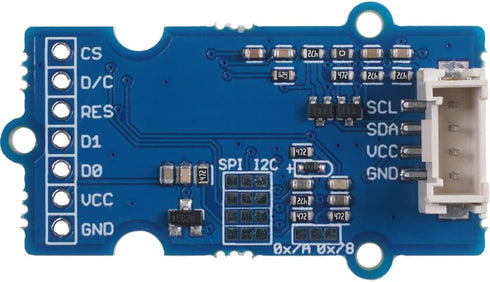

• ✓ Neat Appearance Thanks to suggestions from @Scott Bridges and @Paul Rodgers, we put the grove connector on the back. Such a user-friendly design helps easily hide the connecting wires and makes a pretty production display.
