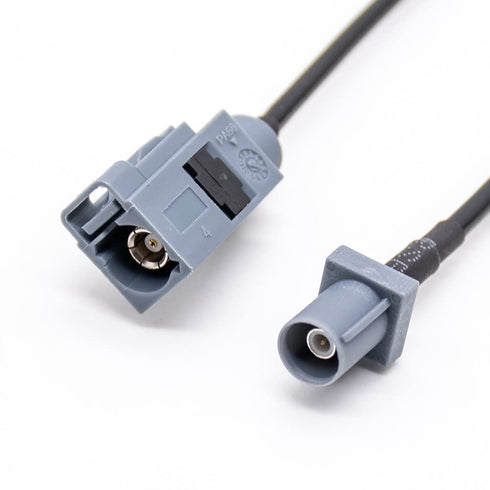

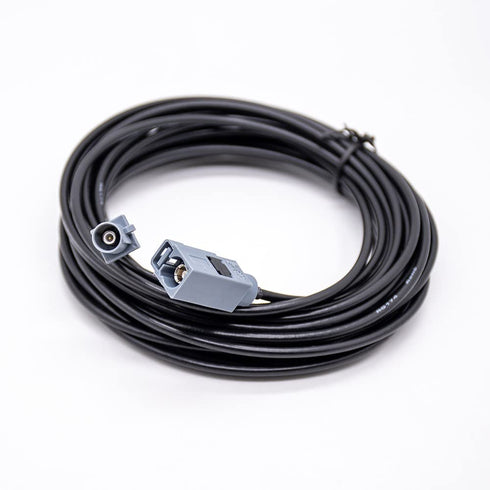

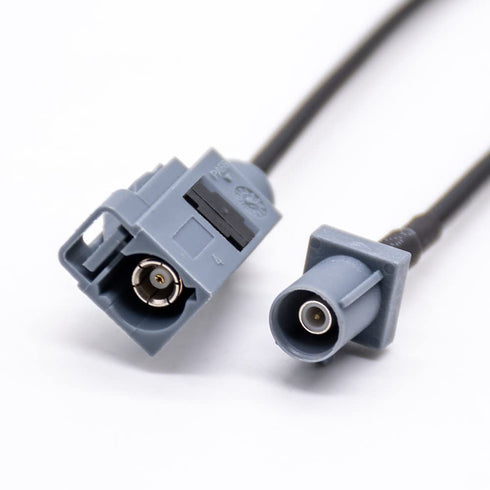

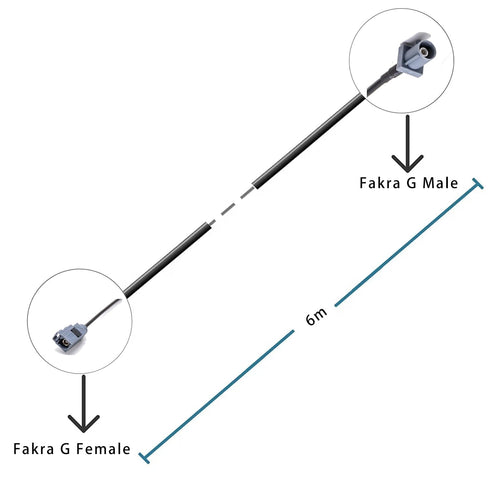

RG174 6m Fakra G Code Brown Pigtail Male to Female Coaxial Cable Car Telematics Antenna Extension Cable

Fakra G Code Brown Pigtail Male to Female RG174 Coaxial Cable Car Telematics Antenna Extension Cable 6m

RG174 6m Fakra G Code Brown Pigtail Male to Female Coaxial Cable Car Telematics Antenna Extension Cable

Technical Parameters: ElectricalSpecifications: Frequency Range:0-6 GHz Performance Spec:SAE-USCAR-17, 18 Dielectric Withstanding Voltage (Sea Level):> 1000 VRMS VSWR DC- 200MHz:1.2 max 200-500MHz:1.35 max 500MHz-2GHz:1.4 max 2-3GHz:1.5 max 3-6GHz:1.6 max Insulation Resistance:1000 M min Contact Resistance Center Contact:<20 m Outer Contact:<10 m Insertion Loss Spec Requirement:<0.3 dB max from DC-3 GHz DC-200MHz:<0.15 dB 200-500MHz:<0.25dB 500MHz-3GHz:<0.3 dB 3-6GHz:<.45dB Mechanical properties: Mating Durability:100 mating cycles min Plastic Housing Engagement Force Engagement :20 N Disengagement:25 N Cable Retention Force Cable Group 1:110 N Cable Group 4:180 N Coding;12 mechanical and color coding

Brand: keisnoaja

female, extension cable, code brown, telematics antenna, telematics, electronics television, coaxial, pigtail male, cable electronics, rg174 coaxial, fakra, extension Electronics Television & Video Accessories Cables Coaxial Cables

Key Features

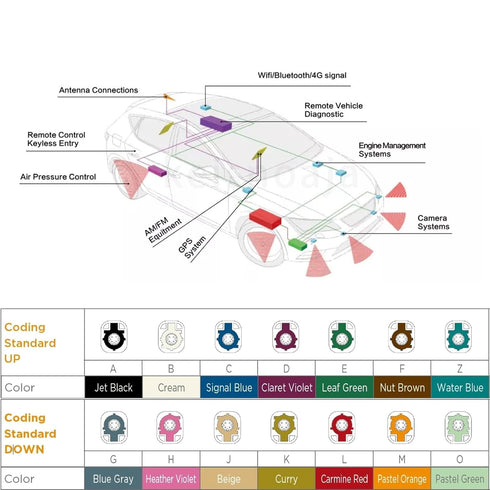

• ✓ Specification: Fakra Cable,Fakra G Connector,Male to Female,Straight,Cable, 14 different mechanical and color codes, Plastic housing with locking feature and audible clicking noise, Minimum of 100 mating cycles, Frequency range of DC - 3 GHz.
• ✓ Fakra Material: Fakra Connector Fulfill The Tough Requirements Of The Automotive Industry, No Misuse Due To Secure Coding System, Primary And Secondary Locking Systems Lead To High Assembling Security, Reliable And Durable, Multiple Housings For Space Savings And Quick Plug-In Operations.
• ✓ Electrical Stability: Precision Machining, Fakra Connector Fine Assembly, Layer-By-Layer Detection, Stable, Contact Performance, Strict Quality Control
• ✓ Strong Weather Resistance: Good Weather Resistance, Fakra Connector Excellent Electroplating Performance,Long Service Life Without Oxidation In Harsh Enviroment, Wide Range Of Applications
• ✓ Reliable Structure: Precision Injection Molding, No Water Inlet For All New Materials, Fakra Connector Small Assembly Tolerance, Stable Quality, Anti-Vibration And Anti-Pulling

Product Details

• ✓ Color: Grey
