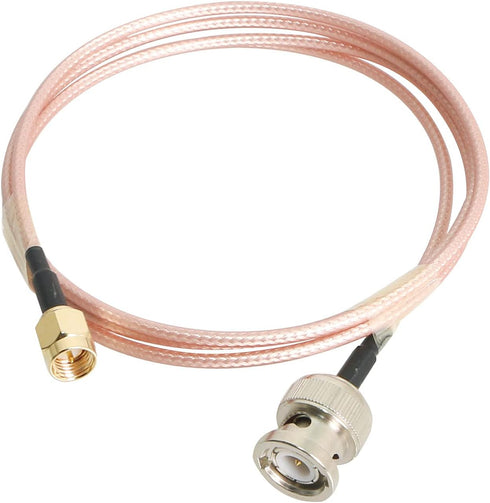

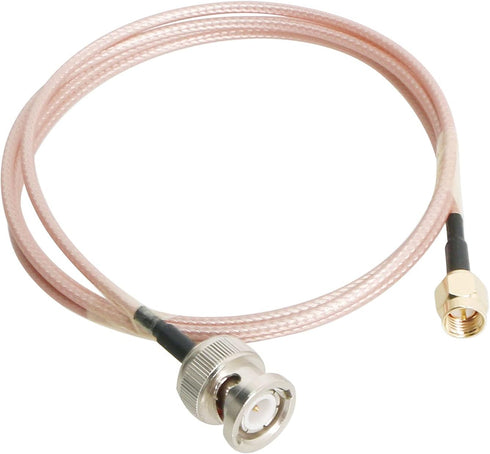

RF Coaxial Cable SMA Male to BNC Male RG316 Jumper Cable for DIY Radio, 3G/4G/5G/LTE/Antenna, 1M 1Pcs

RF Coaxial Cable SMA Male to BNC Male RG316 Coax Cable Jumper for DIY Radio, 3G/4G/5G/LTE/Antenna, Audio and Video Signal Transmission, 1M 1Pcs

RF Coaxial Cable SMA Male to BNC Male RG316 Jumper Cable for DIY Radio, 3G/4G/5G/LTE/Antenna, 1M 1Pcs

Coaxial cable refers to a cable with two concentric conductors, and the conductor and the shielding layer share the same axis. Coaxial cable can be used for the transmission of both analog and digital signals and is suitable for a variety of applications, the most important of which are television transmission, long-distance telephone transmission, short-distance connections between computer systems, and local area networks etc. Cable Model: RG316 Outer Material: FEP Wire Core Material: Copper Silvering Cable Shape: Round Cable Color: Pale Red Cable Dia: 2.5mm Operating Temp: -67~392? Electrical Characteristic at 68? Impedance: 50O Frequency: 3000MHz 0~6GHZ VSWR: = 1.5 Tensile Strength: 1.76kgf/cm² 0-3GHZ Attenuation: = 0.51dB/FT 0-6GHZ Attenuation: = 0.75dB/FT

Key Features

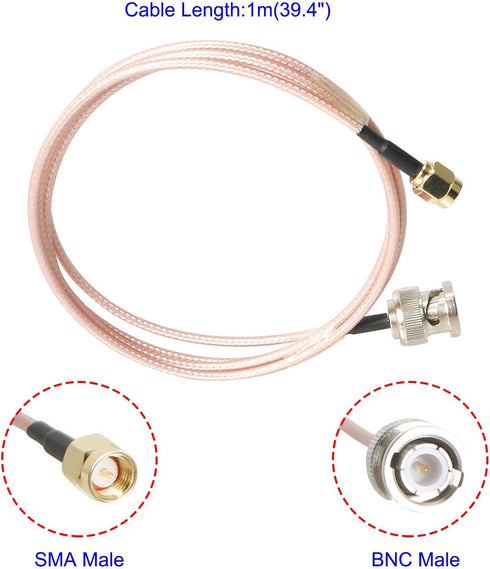

• ✅ Connector 1: SMA Male Straight, Connector 2: BNC Male Straight.
• ✅ Cable Model: RG316, Length: 1M(3.28ft), Impedance: 50O, Cable Dia: 2.5mm.
• ✅ Application: Perfect for DIY radio, antennas, audio and video signal Transmission, UAV camera system.
• ✅ Structure: The Coaxial coax cable adopts a high temperature resistant protective outer layer, an aluminum foil layer for anti-interference, a tightly woven metal mesh, an insulating material layer, and a metal copper core conductor.
• ✅ Features: RG316 coaxial cable has good tensile strength and anti-interference, flexibility, waterproof, rust-proof, reduced signal attenuation, long-distance transmission and other excellent characteristics.

✅ Color: Red
