QIANRENON USB3.0 & USB C 3.1 Panel Mount Adapter, USB A & USB C Feedthrough Bulkhead Mount Socket

QIANRENON USB3.0 & USB C 3.1 Panel Mount Adapter USB3.0+USB Type C 3.1 Female to Female Fixed Mount Data Charging Connector USB A & USB C Feedthrough Bulkhead Mount Socket, Mount in XLR/D Type Panel

QIANRENON USB3.0 & USB C 3.1 Panel Mount Adapter, USB A & USB C Feedthrough Bulkhead Mount Socket

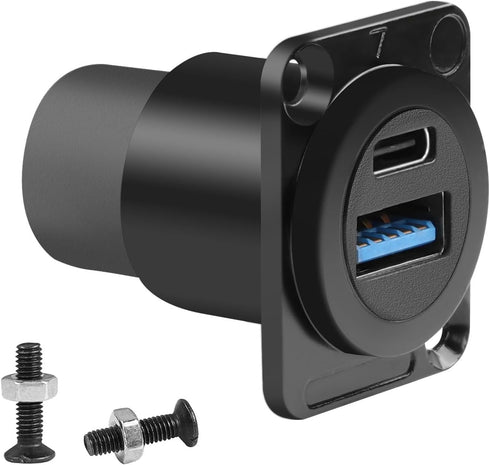

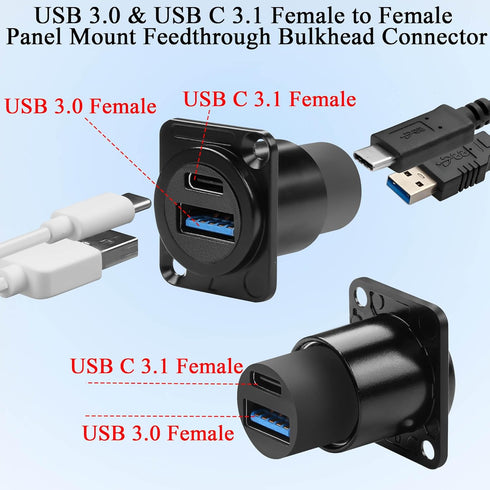

USB3.0+USB Type C 3.1 Female to Female Panel Mount data charging adapter. USB3.0 and USB C 2 ports are independent of each other and do not interfere with each other, can be used for both USB and USB C device data transfer or charging. It is designed according to the standard XLR/D type panel mounting size (19mm*24mm), which requires 1 f24mm through-hole and 2 f3.5 fixing holes on the panel surface, and then fixed and mounted by 2 M3 screws and nuts. It can be installed in XLR panel, equipment panel, wiring rack, cabinet, desktop and wall. Extended USB and USB C ports for connecting mobile phones, tablets, digital electronics for data transfer and charging. Zinc alloy die-cast housing provides rugged protection for use in some harsh environments. Connection A: USB 3.0 female to USB 3.0 female Connector B: USB Type C 3.1 Female to USB Type C 3.1 Female USB 3.0 (data transmission: 5Gbps, charging: 5V 1A) USB C 3.1 (Data Transfer: Max 10Gbps, Charging: Max 50V 1.5A) Design: Panel Mount Mounting hole pitch: 19mm*24mm Opening Diameter: f24mm (f0.94in) Case: Zinc Alloy Package: 1*USB3.0 & USB C 3.1 female to female Fixed Mount Feedthrough Bulkhead Connector. 2*M3 screws, 2*M3 nuts

Key Features

• ✅ ?USB3.0 + USB C?USB3.0 & USB C 3.1 Female to Female Panel Mount Charging data adapter. USB3.0 and USB C 2 ports are independent of each other and do not interfere with each other, can be used for USB and USB C device data transfer or charging at the same time.

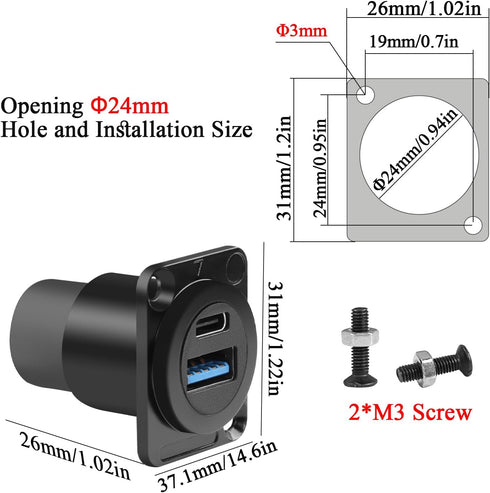

• ✅ ?Panel Mount?USB 3.0 + USB Type C 3.1 Panel Mount adapter socket. Designed according to the mounting dimensions (19mm*24mm) of the standard XLR/ D-type panel, it is necessary to make 1 f24mm through-hole and 2 f3.5 fixing holes on the surface of the panel, and then fix the installation by 2 M3 screws and nuts.
• ✅ ?Charging and Data Transfer?USB 3.0 & USB C 3.1 Female to Female Panel Mount Feedthrough Bulkhead Connector. USB3.0 supports 5Gbps data transfer and 5V/1A charging. USB Type C 3.1 supports up to 10Gbps data transfer and 50V/1.5A high power charging. (USB Type C 3.1 supports up to 10Gbps data transfer and 50V/1.5A high power charging.)

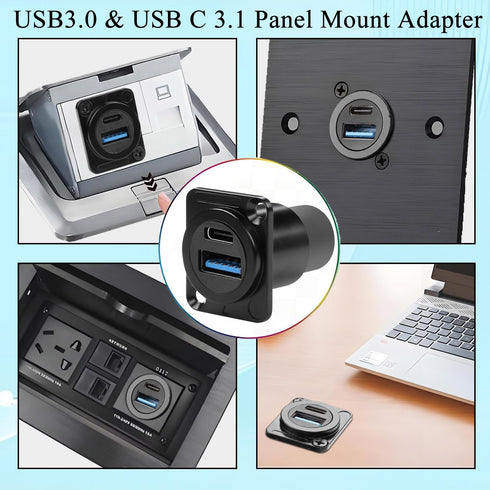

• ✅ ?Application?USB 3.0 & Type C 3.1 Female to Female Panel Mount data charging Connector. Suitable for open or concealed mounting on XLR panels, equipment panels, wiring racks, cabinets, desktops, walls. Extend USB and USB C ports to connect mobile phones, tablets, digital electronic products for data transfer and charging.
• ✅ ?Robust & Durable?USB A & USB C Female to Female panel mount 2-port connector. Zinc alloy die-cast housing provides rugged protection for use in some harsh environments.
