Proxicast 8 inch U.FL to SMA Female Ultra Low-Loss Coaxial Pigtail Jumper Cable for 4G, LTE, 5G, Bluetooth

Proxicast 8 inch U.FL (IPEX / MHF1) to SMA Female Ultra Low-Loss 1.37mm Coaxial Pigtail Jumper Cable for 4G, LTE, 5G, Bluetooth, ZigBee, 900 MHz, LoRa, GPS, Drone, RC Radio Antennas (ANT-105-SMA-2PK)

Proxicast 8 inch U.FL to SMA Female Ultra Low-Loss Coaxial Pigtail Jumper Cable for 4G, LTE, 5G, Bluetooth

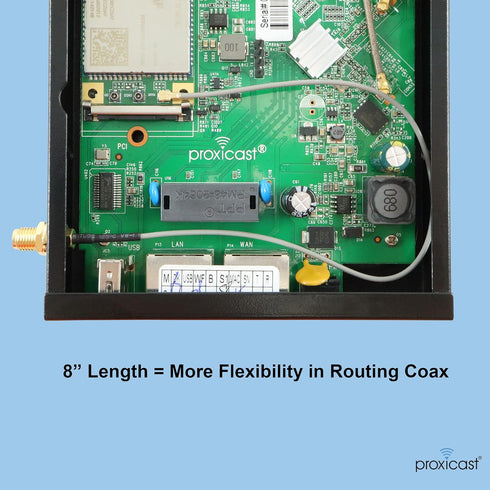

2 pack This short high quality coax jumper cable is used to connect external SMA Male devices such as antennas to RF radio sources which have circuit board-level surface mounted Hirose U.FL (I-PEX MHF1) connection points. Common applications include: - 4G / 5G cellular modems - Routers - MiFi Hotspots - PCI Expansion Cards - Development Boards - Software Defined Radio (SDR) Systems - GPS - Bluetooth - ZigBee - Helium - LoRa - Drones - Radio Controlled (RC) Cars, Boats & Planes - Video Transmission (VTX) This adapter cable is made with RF1.37mm coax which has lower signal loss (attenuation) at high frequencies than most other micro-coaxes, yet is thin and flexible enough for most applications. Its 8 inch length gives you lots of flexibility for routing the cable inside around tight spaces in your chassis without sacrificing performance. NOTE: U.FL connectors are not designed to withstand repeated mating cycles. Specifications Frequency Range: DC to 6 GHz Connector 1: Standard U.FL Connector 2: Standard SMA Female Straight Pins: Gold-Plated Cable Type: RF1.37 mm Cable Length: 8 inches (200 mm) Impedance: 50 Ohm VSWR: <1.5:1 Rated Voltage: AC 60V Withstand Voltage: AC 200V Insulation Resistance: 500M Ohm minimum/DC 100V RoHs Compliaint: YES Operating Temperature: -40? to +85?

Key Features

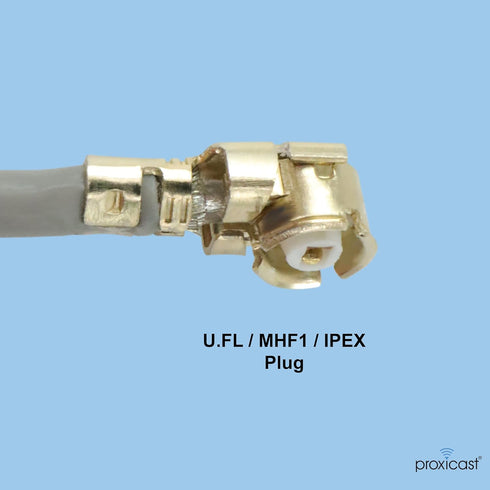

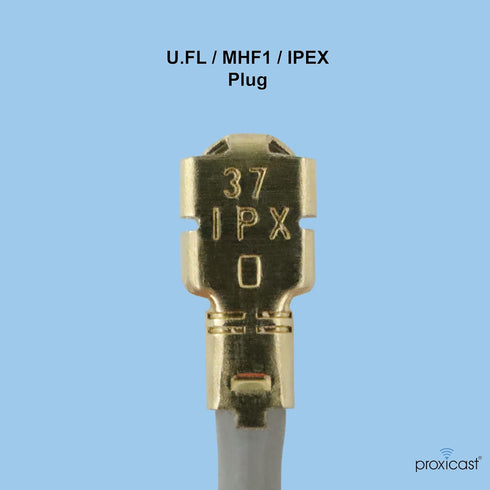

• ✅ U.FL (I-PEX MHF1) MALE for Mating with Female RF Connectors on PCI, PCIe, mPCIe, and other circuit boards

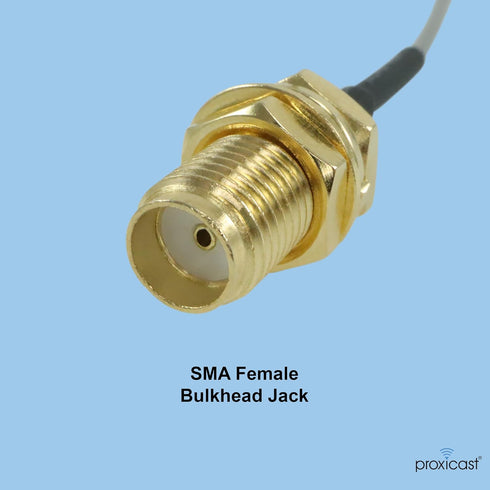

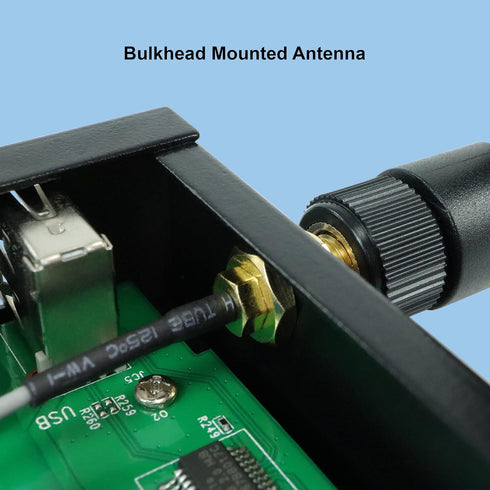

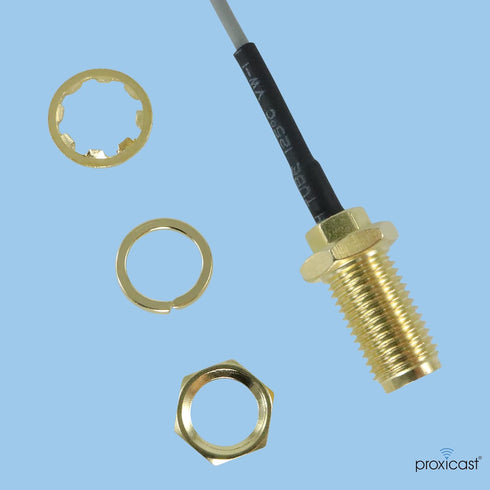

• ✅ SMA FEMALE BULKHEAD JACK for Connection to External Antennas or Other Wireless Equipment

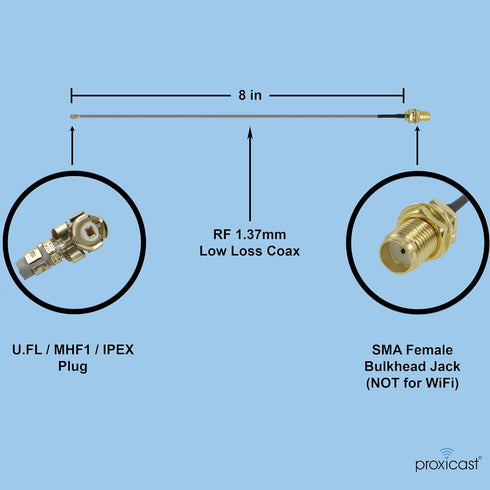

• ✅ ULTRA LOW-LOSS Thin & Flexible RF1.37mm 50 Ohm Coax - 8 inches (20 cm) - Best for High Frequencies
• ✅ SOLID SILVER-PLATED COPPER CORE, GOLD-PLATED PINS and TINNED COPPER SHIELDING Minimize Signal Loss

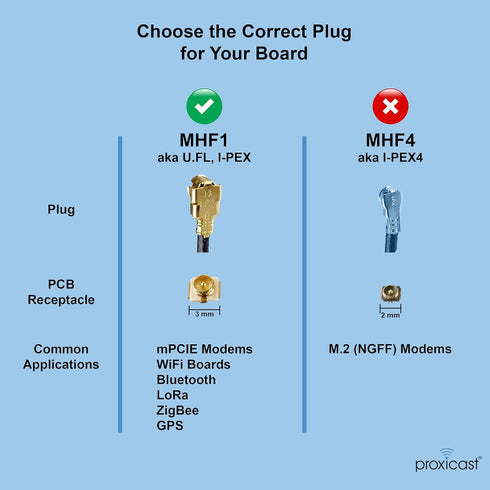

• ✅ Not for use with M.2 (NGFF) sized expansion cards or modems - those typically use the MHF4 connector interface

✅ Color: Grey
