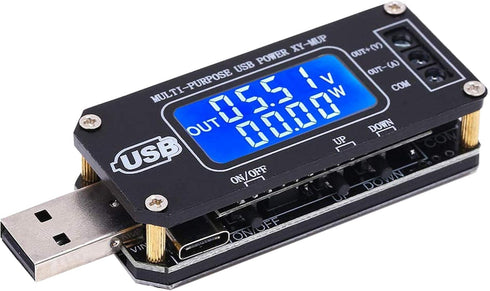

PEMENOL DC-DC CNC USB Step Up/Down Power Supply Regulator Module - Adjustable Voltage Converter with Display

PEMENOL DC-DC CNC USB Step Up/Down Power Supply Regulator Module 3.5V-12V to 1.0V-24V 2-3W, Adjustable Boost Buck Voltage Converter Digital Display Voltmeter Ammeter Battery Capacity Tester

PEMENOL DC-DC CNC USB Step Up/Down Power Supply Regulator Module - Adjustable Voltage Converter with Display

Features: 1>.Dual operating system 2>.Support power supply output function 3>.Support test power function 4>.Support real time temperature display, It can display real-time temperature in both work modes. 5>.Support over power protection 6>.Support under-voltage protection 7>.Support over-current protection 8>.LCD high definition display 9>.Automatic calibration 10>.Multi-parameter simultaneous display 11>.Support power saving mode 12>.Three voltage input methods 13>.Support voltage and current calibration 14>.Anti-extrusion shell,esay to carry The USB Power Supply Module supports over-power protection. It will automatically stop output voltage and the LCD will display ‘OPP’ and flash if the output power is more than 3W. The USB Power Supply Module supports under-voltage protection. It will automatically stop output voltage and the LCD will display ‘LVP’ and flash if the output voltage is less than 0.8V. The USB Power Supply Module supports over-current protection. It will automatically stop output voltage and the LCD will display ‘OCP’ and flash if the output current is more than 2A. 1>. The default is the Power Output Mode(PER) at first 2>. Keep press button ‘ON/OFF’ for 10 second to switch mode 3>. When power is removed, the module can remember the current operating mode. The default work will be the same mode when power on at next time Note: 1>. The module does not support reverse connection protection, please do not short circuit and reverse. 2>. Adjust the working mode before use. 3>. It is a low power supply, please do not exceed the maximum output power. 3W(MAX) 1>.Connect to power supply from input terminal 2>.Set work mode by keep press button ‘ON/OFF’ for 10second 3>.Connect load or Device Voltage 4>.Set required parameters 5>.Test and use Ordinary low power supply Voltmeter Ammeter Battery capacity tester Battery load capacity tester Temperature monitor 1>. Input from standard USB male socket, Micro USB female socket, or Type-C female socket. 2>. The output from ‘OUT+’ and ‘OUT-'. The ‘COM’ terminal can not be used at PER mode. 3>. The LCD display will display the current mode ‘PER’ when startup. 4>. There is a symbol ‘OUT’ when working in PER mode. 5>. Short press the button ‘ON/OFF’ to turn ON or OFF output voltage. At this time, the screen will display 0V. 6>. Keep press the button ‘ON/OFF’ for 2 seconds to switch display output current or output power at the second line. 7>. Keep press the button ‘ON/OFF’ for 5 seconds to turn ON or OFF display screen backlight. But the module can output voltage normally. 8>. Keep press the button ‘ON/OFF’ for 10 seconds to turn switch work mode PER or VAH. 9>. Short press button ‘UP’ and ‘DOWN’ to adjust the output voltage. You also can keep press to adjust the output voltage continuously and greatly. There is a symbol ‘SET’ that will display at the same time. Automatically save the set parameters after 2 seconds. 10>. Short press button ‘UP’ and ‘DOWN’ to switch display current temperature when turning OFF power supply output. Note:The module does not support reverse connection protection, please do not short circuit and reverse. 1>. Module work voltage: Standard USB male socket, Micro USB female socket, and Type-C female socket are used to provide work voltage for XY-MUP. 2>. Measuring voltage: ‘V’ and ‘COM’ terminals are used to measure Measured Device Voltage. 3>. Measuring current: ‘A’ and ‘COM’ terminals are used to measure Measured Device Current. 4>. There is a symbol ‘IN’ when working in PER mode. 5>. Short press button ‘ON/OFF to switch display current temperature or Measured Device Voltage. 6>. Keep press the button ‘ON/OFF’ for 5 seconds to turn ON or OFF display screen backlight. But the module can output voltage normally. 7>. Keep press the button ‘ON/OFF’ for 10 seconds to turn switch work mode PER or VAH. 8>. Short press button ‘UP’ and ‘DOWN’ to switch display Measured Device Power and current. And also can measure Battery capacity, Battery discharging time if connected to the battery. Note:The module does not support reverse connection protection, please do not short circuit and reverse. Work Voltage:DC 3.5V-12V Output Voltage:DC 1.0V-24V Output Power:3W(MAX) Maximum output power within 2W when output DC 1.2V~2V; Maximum output power within 3W when output DC 2V~20V; Maximum output power within 2.5W when output DC 20V~24V; Output voltage accuracy:+/-0.5% Output voltage accuracy:+/-1% Measure voltage range: DC 0~35V Measure current range:0~3A Measure power range:0~110W Measure battery capacity range:0~9999Ah Discharging time:0~100hours Measure temperature:-20?~70? Work Temperature:-40?~85?

Key Features

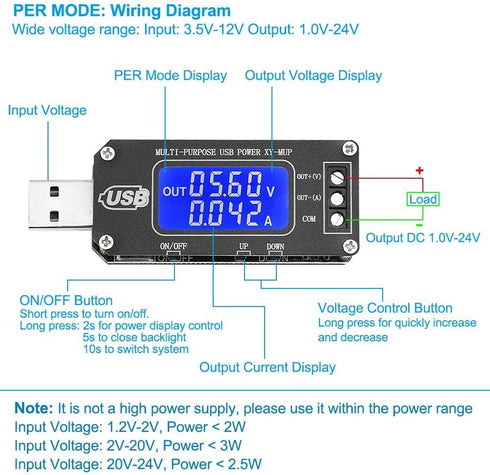

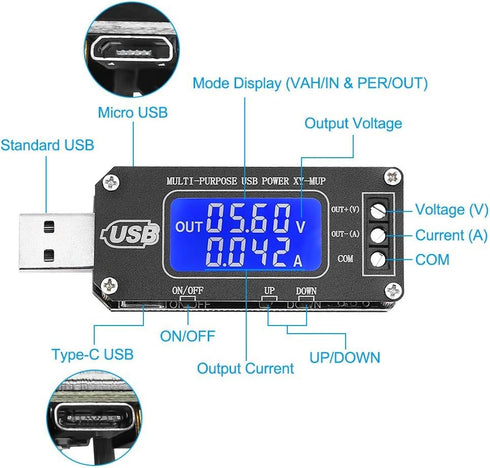

• ✅ ?Power System (PER):There are 3 input interfaces, USB, micro USB, Type-C, input any interface, under the power system (PER), you can output an adjustable voltage from 1.0V to 24V, power 2-3W. Note: It is a low power supply, please do not exceed the maximum output power.

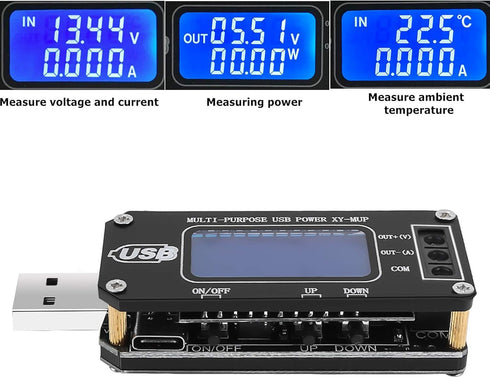

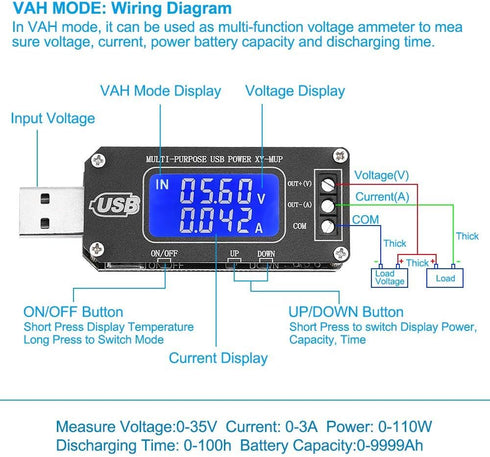

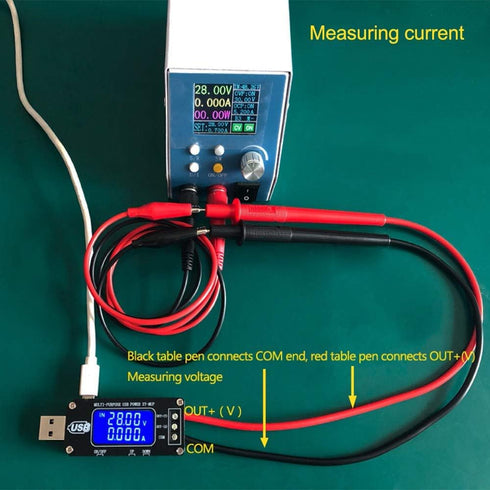

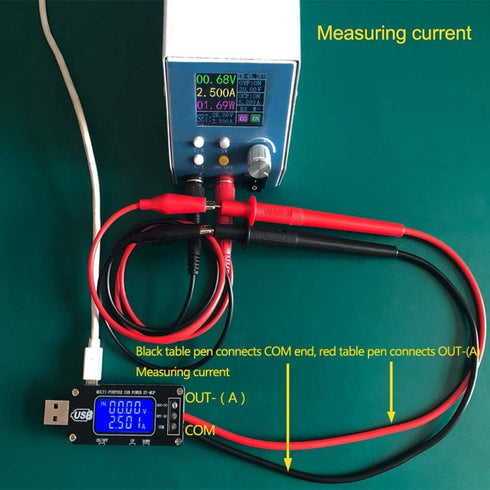

• ✅ ?Multimeter System (VAH): The CNC USB power supply regulator module can measure voltage and current, test power, capacity, and time just like a multimeter. It can also test the current ambient temperature. Temperature range -20?~70?
• ✅ ?With multiple protection functions: When the voltage?0.8V, there will be under-voltage protection(LVP); when the input current?2A, there will be overcurrent protection(OCP); When using over power, there will be over-power protection(OPP). After protection, the output will be automatically turned off, the LCD backlight will flash, and the corresponding protection will be displayed(LVP, OCP, OPP)

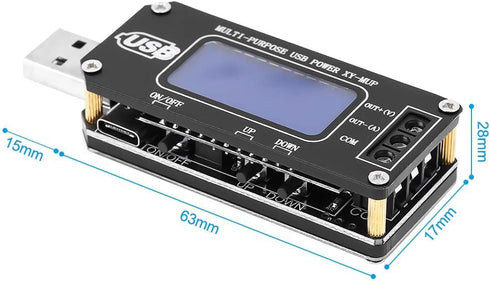

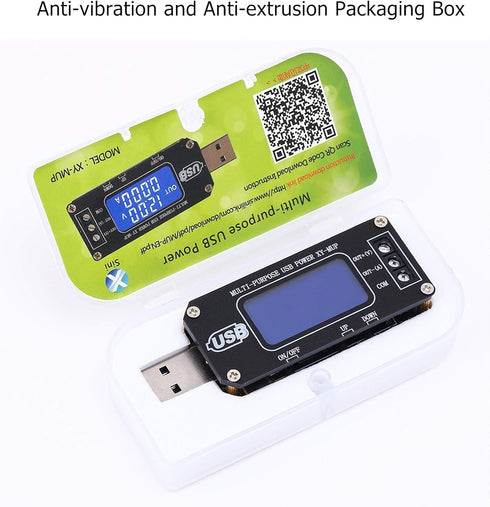

• ✅ ?Small size, easy to carry:small size 78*28*17mm with Anti-extrusion packaging box. Very suitable for use by technical engineers on business trips, maintenance, etc.
• ✅ ?Application: It can measure voltage and current like a multimeter. Can also test power, capacity, time and temperature. For more details and instruction, please read the user manual!!!

✅ Product Dimensions: 3.07 x 1.1 x 0.67 inches
