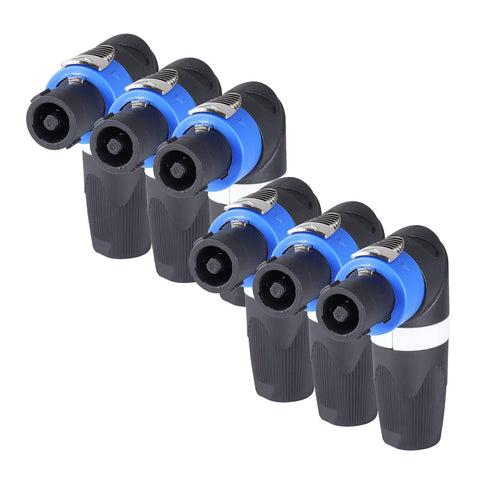

Pack of 6 NL4FRX Speakon Connector, 6 Packs 4 Pole Right Angle NL4FRX SpeakOn Plug, Free up Space Design Adapter with

Pack of 6 NL4FRX Speakon Connector - 6 Packs 4 Pole Right Angle NL4FRX SpeakOn Plug - Free up Space Design Adapter with Twist Lock - Compatible with NL4 Series Speaker Audio Coupler

Pack of 6 NL4FRX Speakon Connector, 6 Packs 4 Pole Right Angle NL4FRX SpeakOn Plug, Free up Space Design Adapter with

The use of nickel-plated needle piece of high-fidelity materials,effective filtering of noise,signal loss is small,compared with the traditional zinc alloy needle piece conductivity is better,restore the sound source more fidelity. Cable O.D.: 7-14.5mm Cable holding force: =220N (depending on cable OD and material) Service life: >5000 times plugging and unplugging Cable size: 12AWG/10AWG (screw type termination or soldering) Wiring: Screw-type termination or soldering Locking device: Quick lock Model: NL4FRX Name:Four-pole right angle speakon cable connector Material: Inner core and shell are made of high density material. Wiring: tighten with a screwdriver Use: Connection between speakers and amplifier equipment Contact resistance: <2mO Insulation strength: 4 kVdc (peak) Insulation resistance: >1GO (after wet heat test) Individual contact current rating: 40 A rms continuous Rated voltage: 250V ac max Note: Speakon cannot be used as an AC power source or power connector. The NL4FRX features an industry-standard loudspeaker connection system that provides extremely reliable and robust cable connectors with a reliable locking system. Rugged contacts with screw-type terminals, including wire protection system with solder terminals as standard. Assembly of the Connector: 1. Place the bushing and chuck over cable. 2. Prepare the cable.Expose cable length of 25mm with rubber and 12mm wire metal part. 3. Insert wires into terminals and secure clamp terminals with screw driver.For 6 mm2(AWG 10) remove screws,clamping sheet and solder. 4. For easy wiring especially on big cables, first screw on the inner contacts 1+ and 2+ and afterwards the outer contacts 1-and 2-! 5. Bend the cable 6. Position the two conversion shells to fit on the connector thread. 7. Press together and fix by screw. 8. Tighten the bushing. 9. Install finished. Widely used for interconnecting audio and video equipment with ohm audio interfaces The products are widely used in: broadcasting and television stations, theater theaters, performance rentals, conference halls, sports venues, exhibition halls, hotel entertainment, home theater etc.

Key Features

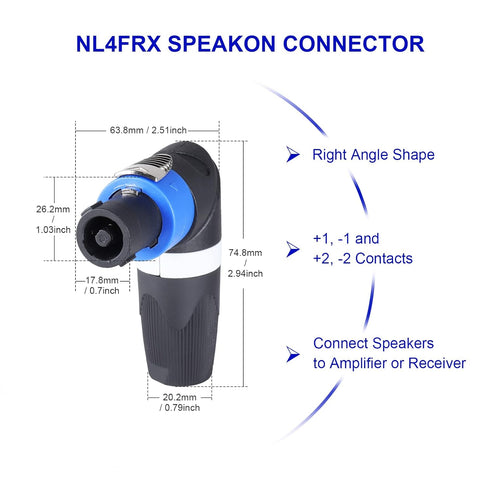

• ✅ ? NL4FRX Speakon Connector ? NL4FC speaker cable connector is a type of connection that is used to connect speakers to amplifier or receiver. 4 Pole means 4 contact terminations within the plug which is labeled +1, -1 and +2, -2. It can be connected 2 conductor or 4 conductor cable.

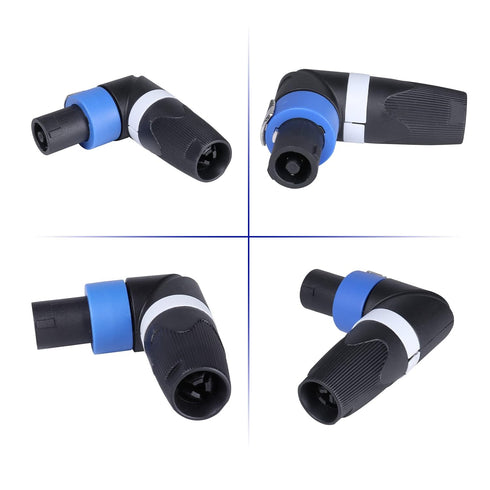

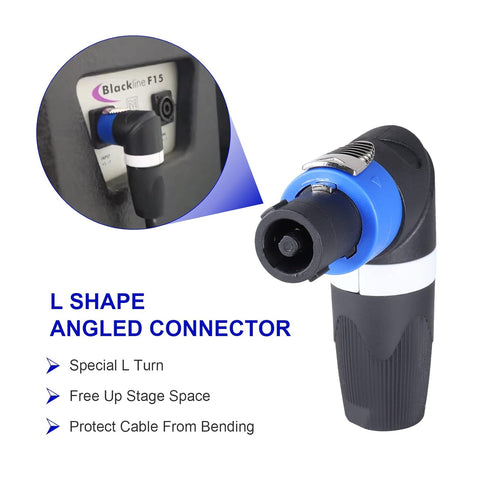

• ✅ ? 90 Degree Angled Adapter ? The right-angle connector on the speaker end is designed as L shape, which makes the cable ideal to use in tight space. 90 degree offers great protection for your cable without harsh bend comparing with straight adapter.

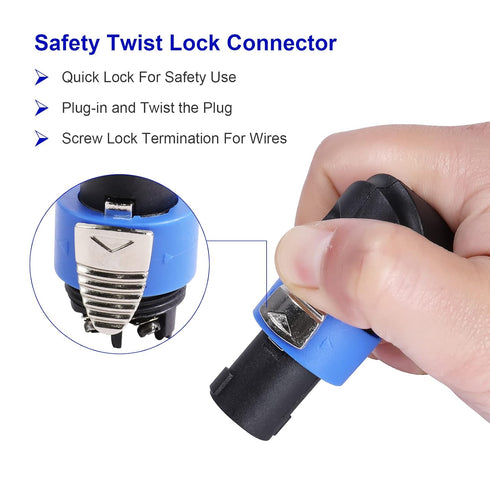

• ✅ ? Twist Lock Safety Design ? The connector features screw lock termination of wires and reliable quick locking design. You have no worries of any sudden music disconnection while trip on them for any gig of outdoor or indoor.

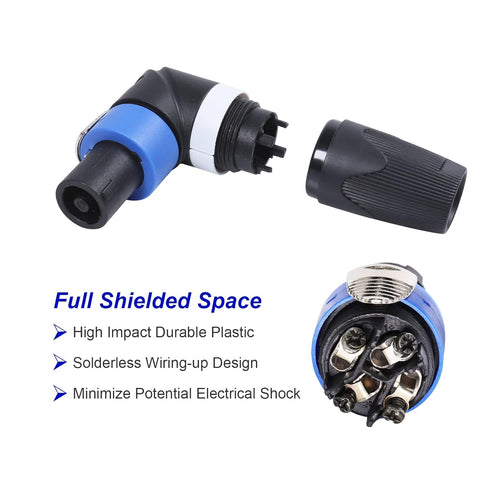

• ✅ ? Full Enclosed Working Space ?High impact material for long-lasting use. The thoroughly enclosed space offers perfect resistance of any interference. That shielded provides stable condition for signal transmission and minimizes the risk of potential electrical shock.

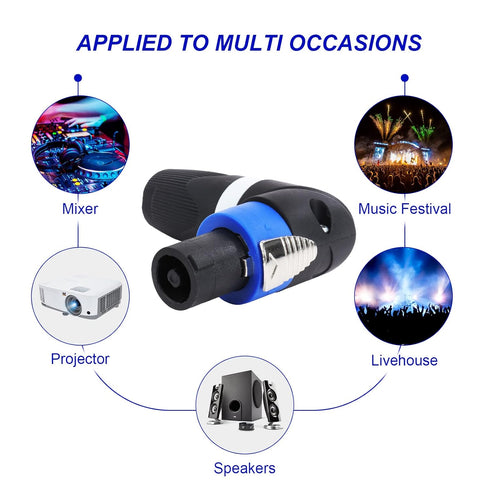

• ✅ ? Amplifier to Speaker Connection ? SpeakOn adapter is commonly used for high current demands of amplifier to loudspeaker to enhance the audio quality. It carries higher capacity of electrical current which is a better experience of audio hitting into the audience's ears.
