Optical Fingerprint Reader Sensor Module Door Lock Access Control Red Light for Arduino Mega2560

Optical Fingerprint Reader Sensor Module Door Lock Access Control Red Light for Arduino Mega2560 UNO R3

Optical Fingerprint Reader Sensor Module Door Lock Access Control Red Light for Arduino Mega2560

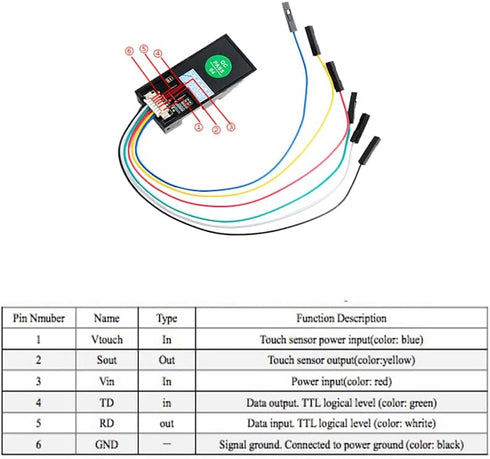

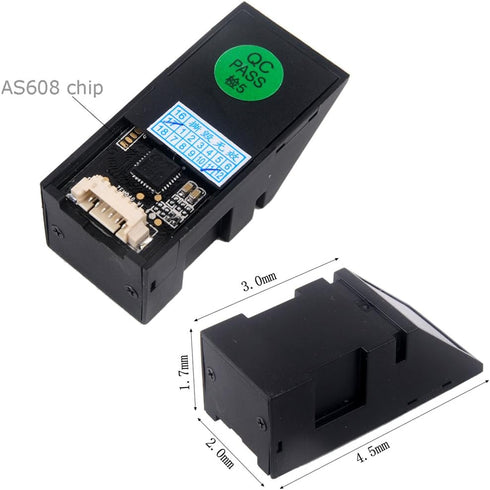

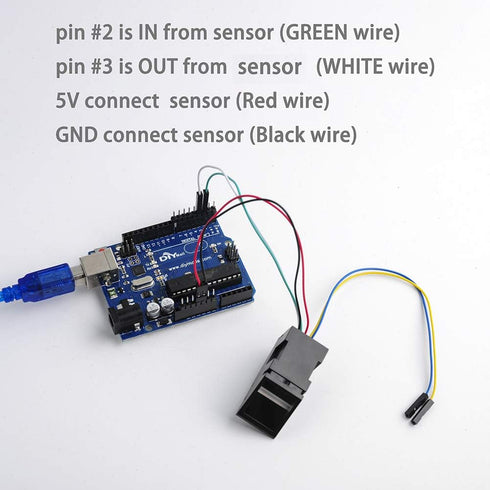

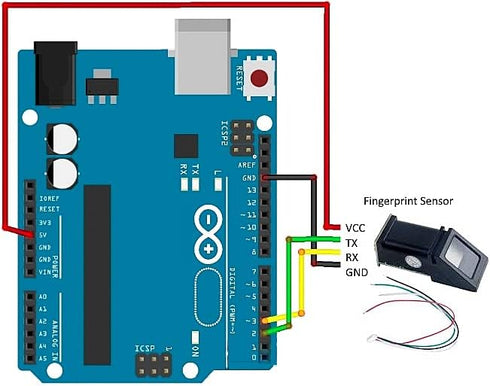

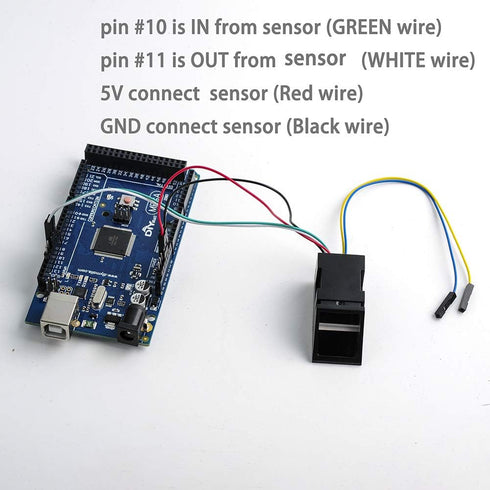

Fingerprint Module works with 2560 Connection: pin #10 is IN from sensor (GREEN wire) pin #11 is OUT from sensor (WHITE wire) 5V connect sensor (Red wire) GND connect sensor (Black wire) Fingerprint Module works with R3 Connection: pin #2 is IN from sensor (GREEN wire) pin #3 is OUT from sensor (WHITE wire) 5V connect sensor (Red wire) GND connect sensor (Black wire) Connection with UNO R3: AS608 Fingerprint Sensor Arduino UNO Red Cable 5V Black Cable GND Green Cable 2 White Cable 3 Connection with 2560 R3 : AS608 Fingerprint Sensor Arduino 2560 Red Cable 5V Black Cable GND Green Cable 10 White Cable 11 Specifications: Model type: O40 Supply voltage: DC 3.8 ~ 7.0V Backlight color: red Light way: long light / flashing Supply current: Operating current: <60mA Peak current: <85mA Fingerprint image input time: <0.5 seconds Window area: 15 × 17mm Matching method: Comparison method (1: 1); Search method (1: N) Characteristic file: 384 bytes Template file: 786 bytes Storage capacity: 240 Security Level: 3 (from low to high: 1,2,3,4,5) False Acceptance Rate (FAR): <0.001% (Security Level 3) Refusal rate (FRR): <1.0% (security level is 3) Search time: <220 ms (1: 240 average) Host interface: UART (TTL logic level) Communication baud rate (UART): (9600 × N) bps Where N = 1 ~ 12 (default N = 6, ie 57600bps) Working temperature: -30 °C to +70 °C Storage Temperature: -40 °C to +85 °C

Key Features

• ✅ Optical fingerprint sensor secure your project with biometrics. This fingerprint module can be used for fingerprint collection, fingerprint registration, fingerprint comparison and fingerprint search, it's easy to use, so its perfect for any project
• ✅ Fingerprint sensor module can work with any microcontroller which with serial port: such as compatible with arduino, 51, avr, stm32, pic, arm, msp430

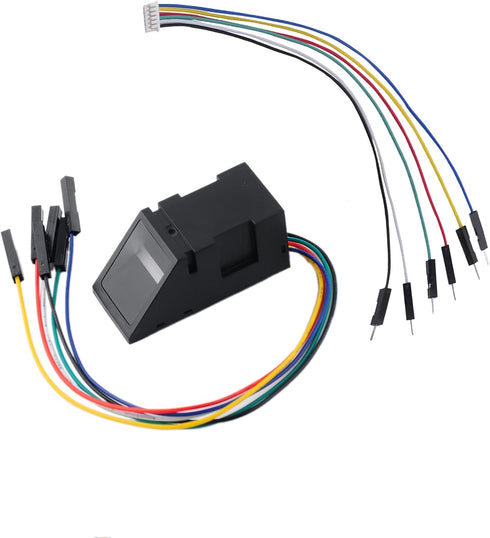

• ✅ Package Includes:1 X Optical Fingerprint Reader Sensor, 2 X Cable. You can enroll new fingers directly - up to 240 finger prints can be stored

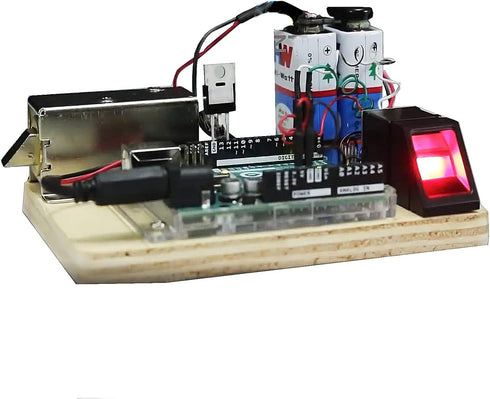

• ✅ Applications: Fingerprint door locks, safes, guns, financial and other security areas; Access control systems, industrial computers, POS machines, driving training, attendance and other areas of identity; fingerprint payment and other financial areas
• ✅ The fingerprint moudle documentation link cannot be displayed. If you need technical documentation, please click “Geekstory” to em-ail us
