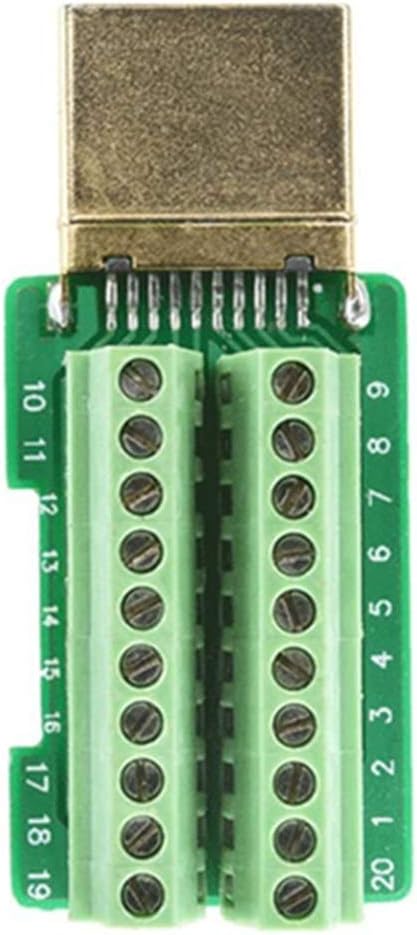

Oiyagai HDMI Solderless Male Quick Connector - Port Terminal Solderfree Breakout Connector Board with Case Accessories

Oiyagai HDMI Solderless Male Quick Connector, Port Terminal Solderfree Breakout Connector Board with Case Accessories

Oiyagai HDMI Solderless Male Quick Connector - Port Terminal Solderfree Breakout Connector Board with Case Accessories

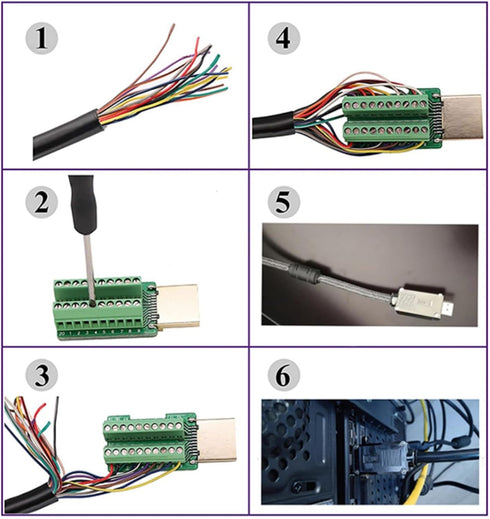

Notice: DIY HDMI Cable Repair Guide: 1. Using a Voltage Tester: - Set the voltage tester to resistance measurement mode, typically denoted by the ohm symbol (O). - Gently touch one probe to the pins of the new HDMI head and the other probe to each wire of the faulty cable. - When the voltage tester jumps or shows a low resistance value (close to zero ohms), you've found the corresponding wire. 2. Marking Wire Functions: - After identifying each wire's function using the voltage tester, mark or note down the corresponding functions for red, green, blue, white, and black. 3. Connecting to the New HDMI Head: - Examine the pins on the new HDMI head, ensuring you know the function of each pin. - Connect the red wire to the pin marked in red on the new head, and so on. - Use insulating tape or heat shrink tubing to insulate and secure each connection point. 4. Testing the Connection: - Insert the repaired HDMI head into the device, ensuring a secure connection. - Power on the device, check for a display, and ensure the signal transmission is normal. Throughout the process, ensure the device is in the off state for safety. Following these steps, you should successfully connect the repaired HDMI cable. 1 x HDMI Adapter (Anti-static bag packaging)

Key Features

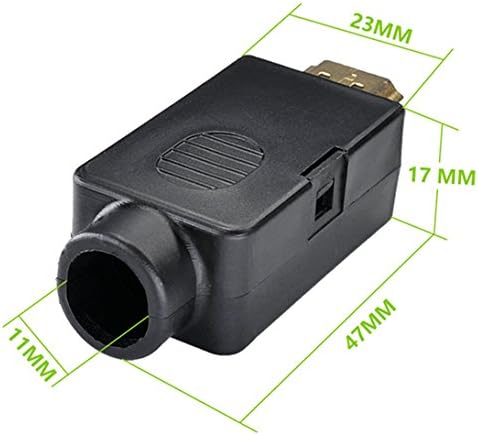

• ✅ Size:47mm*23mm*17mm(L*W*H)
• ✅ The connection method requires professional knowledge, and beginners should be careful to purchase.

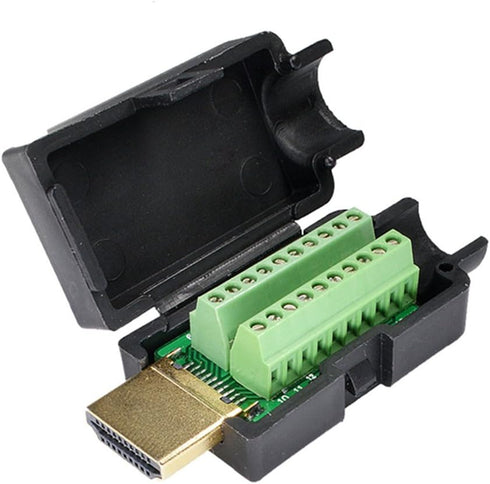

• ✅ Material : Metal, Electric Part;Color : Green/Black;Weight:16g

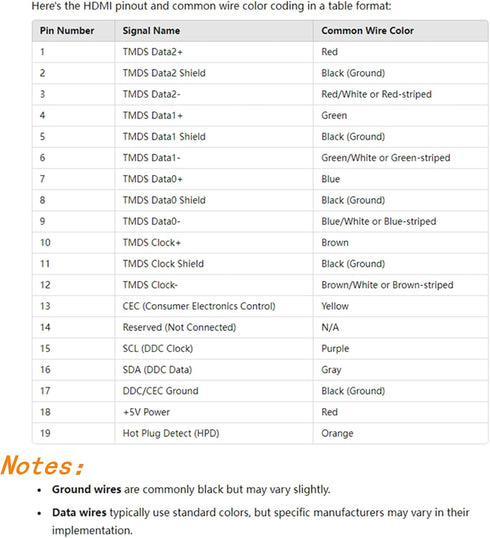

• ✅ Notice:Most HDMI have varying wiring plans. Due to the different manufacturers, the wiring plans is different, so you need to ask the seller of this line. If only one end needs to be changed, please apply the same wiring structure that was in use. While wire colors from different sources may vary, just remember to match both ends with the correct wiring structure.
• ✅ Please be familiar with the HDMI wiring plan before placing an order. Recommend use a multimeter to decipher the colors.
