NOYITO Voltage to Current Module, 0-5V to 0-20mA

NOYITO Voltage to Current Module 0-5V to 0-20mA

NOYITO Voltage to Current Module, 0-5V to 0-20mA

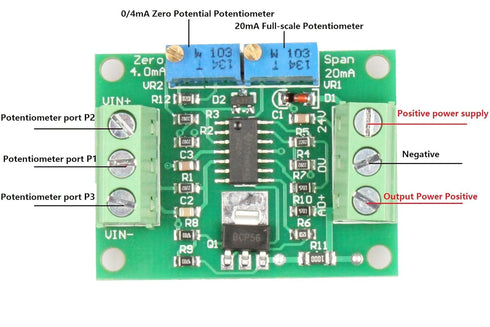

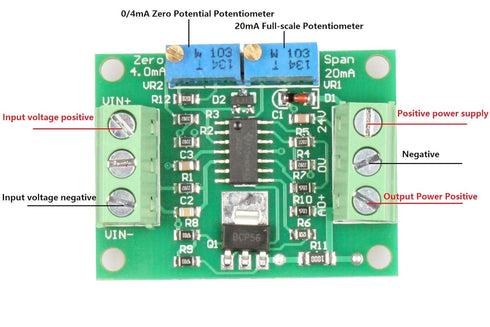

Features: Using single-chip embedded technology. Implement the industry standard voltage (0-5V) into an industry standard current (0-20mA). Linear output, output signal can be directly connected to the AD converter. Can be connected with a microcontroller with AD function. Easy to operate, can be fine-tuned by potentiometer. Module operating voltage: DC12-24V Pin Description: 24V: Operating power supply 24V DC +. GND: 24V DC-. P1: Adjustable potentiometer 1 pin; VIN + (V + / P2): Input voltage 0-3.3V DC- (OR adjustable potentiometer 2 pin). VIN- (V- / P3): INPUT DC- (OR adjustable potentiometer 3 pin) 0V: Output current 0-20mA. Special Instructions: The working voltage connected to V + and V-, can not be reversed, so as not to damage the control panel and components. In the VIN terminal control voltage, the range is 0-5V, there is a corresponding output at the output current. The correspondence between voltage and current can be fine-tuned by adjusting the potentiometer. Package Included: 1 Pcs NOYITO Voltage To Current Module NOYITO brand products have a two-year after-sales warranty. If there is a non-human product failure within two years, please contact us. We will provide you with after-sales service.

Key Features

• ✅ NOYITO Voltage to Current module,0-5Vvoltage signal conversion to 0-20mA current signal output, by adjusting the voltage to adjust the size of the current. Can be used to generate the signal source, valve adjustment, inverter control, PLC debugging, instrumentation test, LED test, analog transmitter.
• ✅ Implement the industry standard voltage (0-5V) into an industry standard current (0-20mA)., linear output, the output signal can be directly connected to the AD converter, with the AD function with the microcontroller connection.
• ✅ Using single-chip embedded technology. The module is small and easy to use in different places.
• ✅ Easy to use, can be fine-tuned by potentiometer.

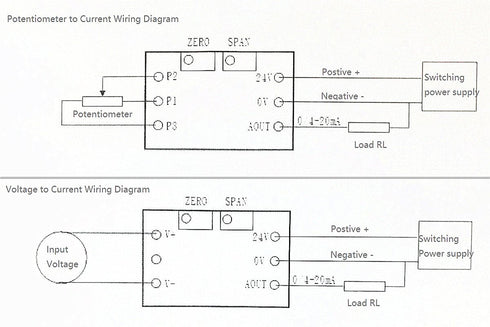

• ✅ Module working voltage: DC12-24V . ?Please read the product pictures on the left side of the page for the wiring diagram of the product.?

✅ Product Dimensions: 1.57 x 1.18 x 0.43 inches; 0.42 ounces
