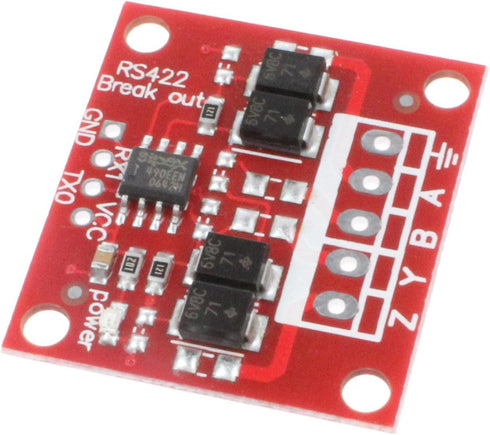

NOYITO RS422 to TTL Signal Module, Bidirectional Mutual Conversion Full-Duplex 422 to MCU UART Serial Level Conversion

NOYITO RS422 to TTL Signal Module RS422 TTL Bidirectional Mutual Conversion Full-Duplex 422 to MCU UART Serial Level Conversion 5V

NOYITO RS422 to TTL Signal Module, Bidirectional Mutual Conversion Full-Duplex 422 to MCU UART Serial Level Conversion

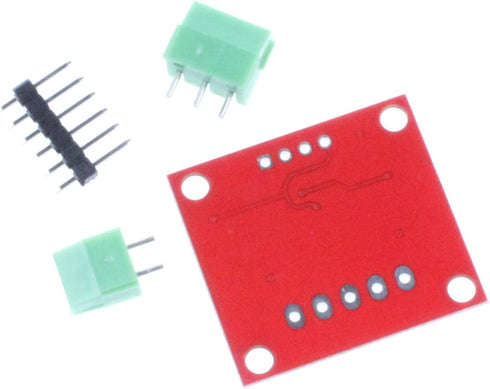

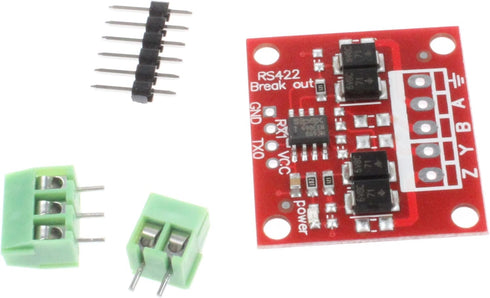

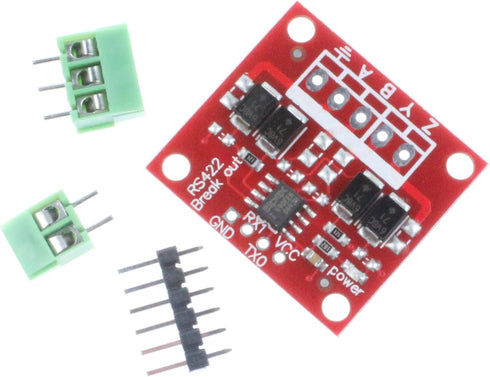

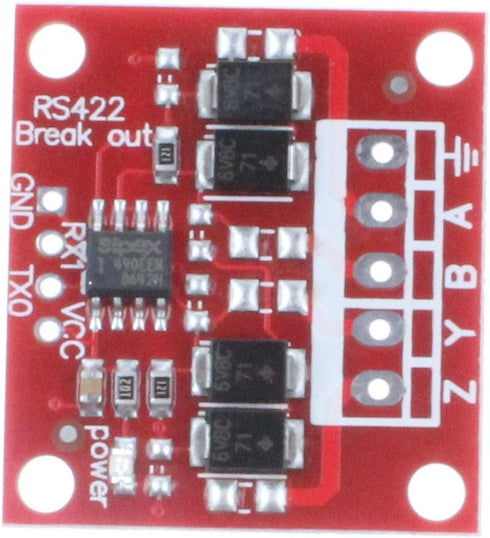

Module features: 1.RS422 interface, two-way communication. 2. A B Y Z GND connector (GND can not be used). Ultra-long transmission 1000 meters 3. With 15KV ESD protection. 4. Increase the power 10 Ohm current limiting over-current protection resistor on the board. 5. TVS diodes, anti-lightning, anti-spike voltage. 6. 120 ohm termination resistance, effectively reduce long-distance communication echo interference. 7. There is a power indicator 8.RS485 interface has 2-wire and 3-wire mode, provides GND, you can choose. 9. The RS485 interface uses the conventional 301 terminal, the wiring is simple, the user can also weld 2.54mm pitch pins. 10. TTL side, use 5V DC power supply RXD TXD compatible 5V logic signal. 11. Communication speed 2.5MBPS Port description: A=R+ B=R- Y=T+ Z=T- Package Included: 1pcs RS422 to TTL Signal Module

Key Features

• ✅ RS422 interface, two-way communication. Ultra-long transmission 1000 meters. With 15KV ESD protection.
• ✅ A high-power 10 Ohm current-limited over-current protection resistor is added to the board. TVS diodes, anti-lightning, anti-spike voltage.
• ✅ There are 120 ohm termination resistors to effectively reduce echo interference in long-distance communication. There is a power indicator.
• ✅ On the TTL side, using a 5V DC power supply, the RXD TXD is compatible with 5V logic signals.
• ✅ Communication speed 2.5MBPS
