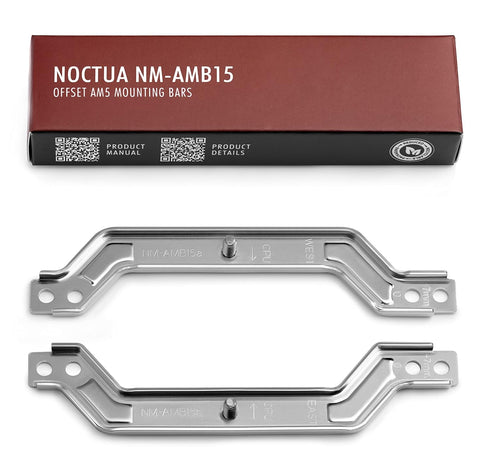

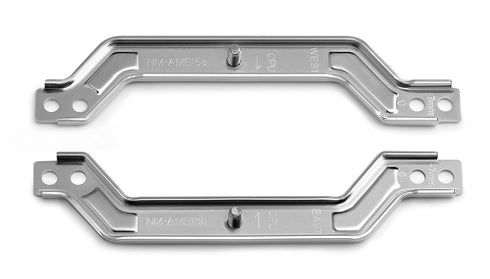

Noctua NM-AMB15, Offset AMD AM5 Mounting Bars for Improved Cooling Performance, Silver

Noctua NM-AMB15, Offset AMD AM5 Mounting Bars for Improved Cooling Performance (Silver)

Noctua NM-AMB15, Offset AMD AM5 Mounting Bars for Improved Cooling Performance, Silver

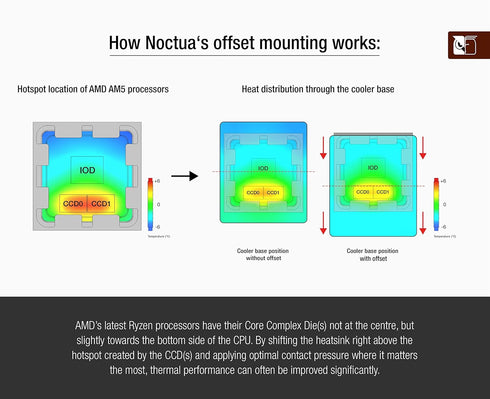

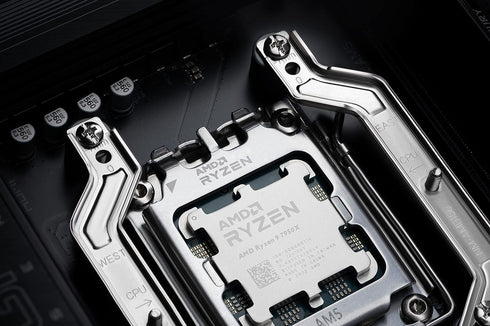

The NM-AMB15 are offset AM5 mounting bars for Noctua CPU coolers with 78mm mounting pitch that require their mounting points at the east and west side of the socket for optimal orientation, such as the popular NH-U14S, NH-U12A, NH-U12S or NH-U9S (see detailed compatibility list). By offsetting the heatsink 7mm towards the south side of the socket, more pressure is applied right above the CPU’s CCD(s). This improved contact exactly at the processor’s hotspot can significantly reduce CPU temperatures with typical improvements in the range of 1-3°C. Replacing the standard mounting bars and re-using the original spacers and screws, the NM-AMB15 are a simple yet highly efficient measure for optimising thermal performance on AM5-based AMD Ryzen CPUs. AMD’s latest Ryzen processors have their Core Complex Die(s) not at the centre, but slightly towards the south side of the CPU. By shifting the heatsink right above the hotspot created by the CCD(s) and applying optimal contact pressure where it matters the most, thermal performance can often be improved significantly. While the results can vary due to different heat flux densities, tolerances of both the CPU and heatsink as well as other factors such as thermal paste application, the offset mounting can yield significant improvements with typical reductions in core temperatures ranging between 1 and 3°C on high-end AM5 processors. These gains can be used to let the CPU run cooler, to achieve higher boost clock frequencies or to reduce fan speeds and noise levels. The offset mounting bars feature two hole sets, one for offsetting the cooler 7mm towards the south side of the socket and one for the standard, non-offset position. The latter can be used in the unlikely case that the offset position causes compatibility issues, such as clearance problems with motherboard heatsinks or PCIe cards. While primarily designed for AM5, the offset mounting bars can also be used on AM4, where they may yield slight improvements on Ryzen 5000 and 3000 series processors. However, the improvements when using the offset mounting position on these CPUs tend to be much smaller, typically <1°C instead of the 1-3°C gains that can be achieved on AM5.

Key Features

• ✅ 7mm offset shifts the heatsink directly over the hotspot of AM5 Ryzen CPUs, better contact over the processor’s CCD(s) typically improves temperatures by 1-3°C
• ✅ For Noctua CPU coolers with 78mm mounting pitch that require mounting bars on the west (left) and east (right) side of the AM5 socket for optimal orientation
• ✅ Compatible with Noctua NH-U12A, NH-U12S, NH-U12S SE-AM4, NH-U12S redux, NH-U14S, NH-U9S
• ✅ Please double check heatsink compatibility before purchasing! NM-AMB15 can only be used for the models mentioned above, please choose NM-AMB12, NM-AMB13 or NM-AMB14 for other models
• ✅ Bars can be installed in standard (0mm) or offset (-7mm) position

✅ Product Dimensions: 4.61 x 1.14 x 0.67 inches; 1.06 ounces
