MTDELE 3 HC-SR501 Pcs PIR Motion Sensor Miniature Human Infrared Sensing Module Compatible with for Raspberry Pi

3 Pcs HC-SR501 PIR Motion Sensor Miniature Human Infrared Sensing Module Compatible with for Raspberry Pi Arduino Sensors

MTDELE 3 HC-SR501 Pcs PIR Motion Sensor Miniature Human Infrared Sensing Module Compatible with for Raspberry Pi

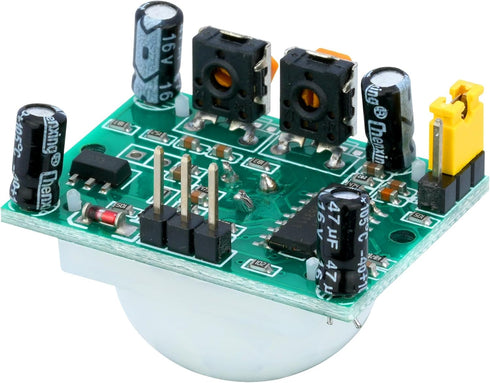

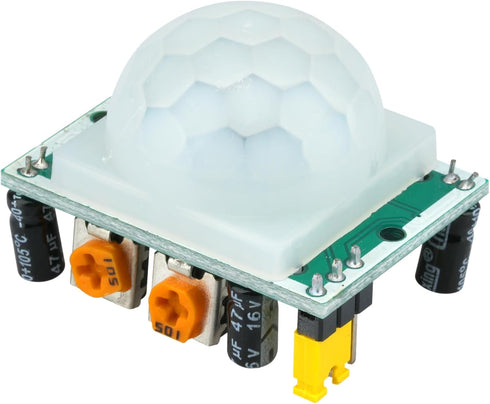

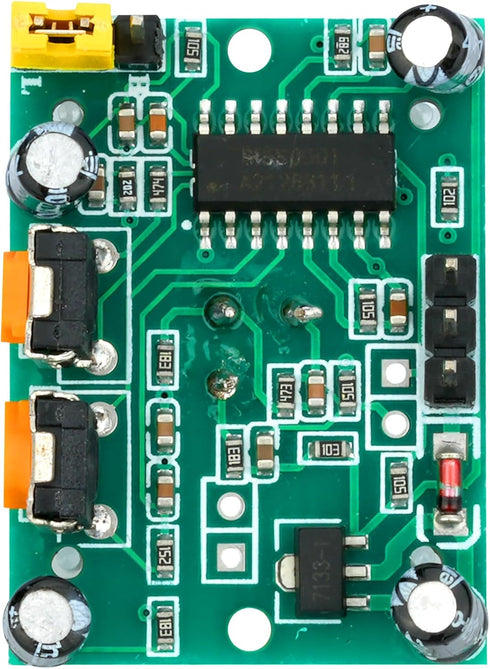

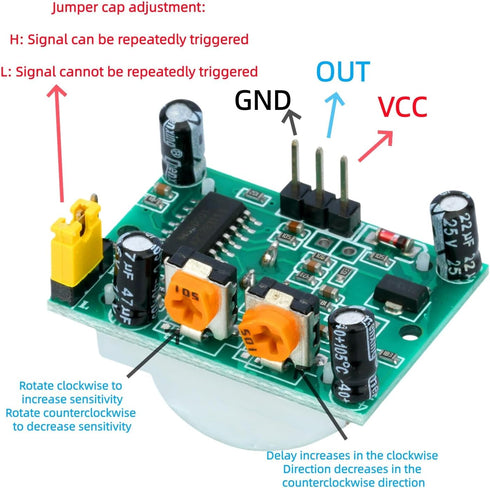

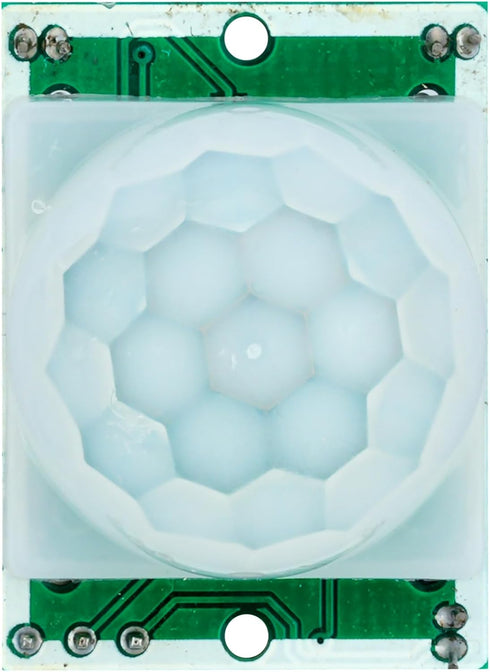

HC-SR50 PIR sensor module Working voltage range: DC 4.5-20V Level OutputHigh 3.3V/Low 0V Sensing RangeLess Than 120 Degrees Cone AngleWithin 3-7 Meters Sensor diameter: 23mm (default) Quiescent current: 50uA Trigger mode: L non-repeatable trigger/H repeatable trigger (default repeat trigger) Delay time: 5-18S (adjustable), range: 0.xx seconds to tens of seconds Blocking time: 2.5S (default), can be set to 0.xx seconds to tens of seconds HC-SR501 human sensing module: can automatically and quickly turn on various incandescent lamps fluorescent lamps buzzers automatic doors electric fans automatic washing machines and other dryers and other equipment Compatible with sensitive areas such as aisles and corridors in enterprises hotels, shopping malls warehouses and homes or automatic lighting and lighting in safe areas Commodities include3Pcs HC-SR501 PIR Motion Sensor3Pcs HC-SR501 Probe Holder12Pcs Screws12Pcs Nuts10Pcs Male and Female Dupont Wire1Pcs Screwdriver Instructions for use: After the induction module is powered on, there is an initialization time of about one minute. During this period, the module will output 0-3 times at intervals and enter the standby state after one minute. 2. Avoid direct interference sources such as light from the lens on the surface of the module at close range to avoid introducing interference signals and causing false operation; avoid flowing wind in the use environment as much as possible, as wind will also interfere with the sensor. 3. The induction module uses a dual-element probe. The window of the probe is rectangular. The dual elements (A element and B element) are located at both ends of the longer direction. When the human body walks from left to right or from right to left,there is a difference in the time and distance of the infrared spectrum reaching the dual element. The larger the difference, the more sensitive the induction When the human body walks from the front to the probe or from top to bottom or from bottom to top, the dual element cannot detect the change in the infrared spectrum distance, so the induction is insensitive or does not work; therefore, when installing the sensor, the direction of the probe dual element should be as parallel as possible to the direction of the most human activity, to ensure that the human body is sensed by the probe dual element one after another when passing by In order to increase the sensing angle range, this module uses a circular lens, which also allows the probe to sense on all four sides. However, the left and right sides still have a larger sensing range and stronger sensitivity than the upper and lower directions. NoticeThe above requirements must still be followed as much as possible during installation Note: Follow the above requirements as much as possible during installation

Brand: MTDELE

miniature, motion, sensors electronics, mtdele, motion sensor, infrared, compatible raspberry, security, human infrared, pir motion, infrared sensing, arduino Electronics Security & Surveillance Motion Detectors

Key Features

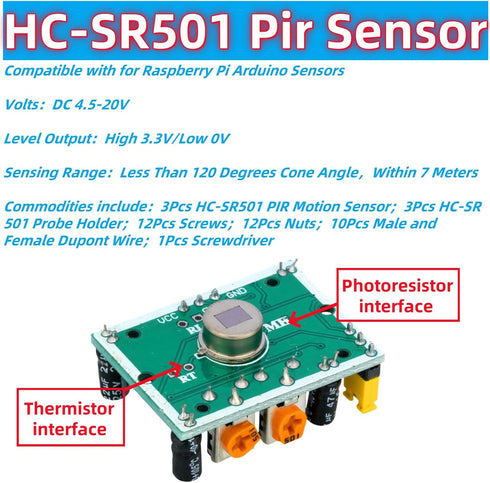

• ✅ PIR sensorCompatible with for Raspberry Pi Arduino Sensors
• ✅ VoltsDC 4.5-20V
• ✅ Level OutputHigh 3.3V/Low 0V
• ✅ Sensing RangeLess Than 120 Degrees Cone AngleWithin 7 Meters

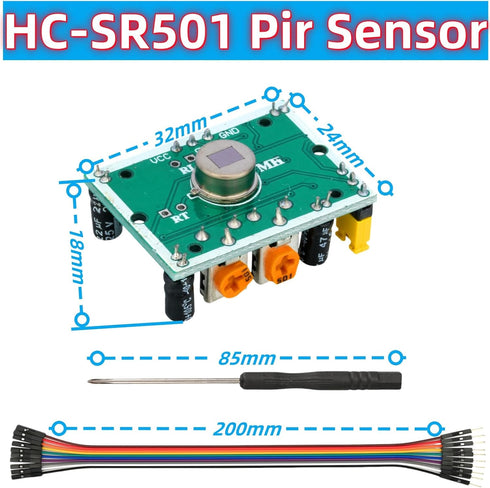

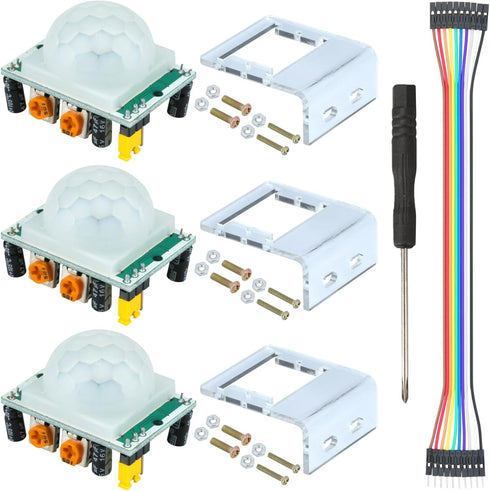

• ✅ Commodities include3Pcs HC-SR501 PIR Motion Sensor3Pcs HC-SR501 Probe Holder12Pcs Screws12Pcs Nuts10Pcs Male and Female Dupont Wire1Pcs Screwdriver

Product Details

• ✅ Color: white
• ✅ Power Source: Corded Electric
