MS3106A18-19 MS3102A18-19 Male and Female 10 Pin Connectors Bayonet Series

MS3106A18-19 MS3102A18-19 Male and Female 10 Pin Connector Connectors Bayonet Series

MS3106A18-19 MS3102A18-19 Male and Female 10 Pin Connectors Bayonet Series

The circular bayonet coupling connector series was designed in accordance with VG95234 specification. This highly reliable connector series is an improvement on the well established MIL-C-5015 type. The series has a proven bayonet coupling design that offers exceptional vibration protected sealing against fluid and easy connection/disconnection.this series designed standard connector for application in ground fighting equipments Connectors in accordance with VG95234 are interchangeable with the corresponding MIL-C-5015 connectors.both connector lines feature the same shell dimensions and contacts layouts.however,due to the different coupling systems (MIL-C-5015 threaded coupling,VG95234 bayonet coupling)they are not intermateable.

Key Features

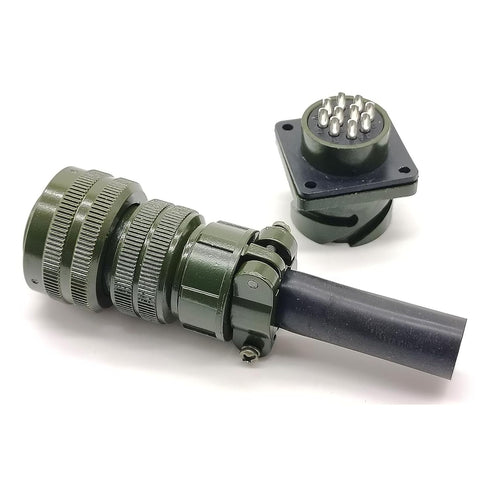

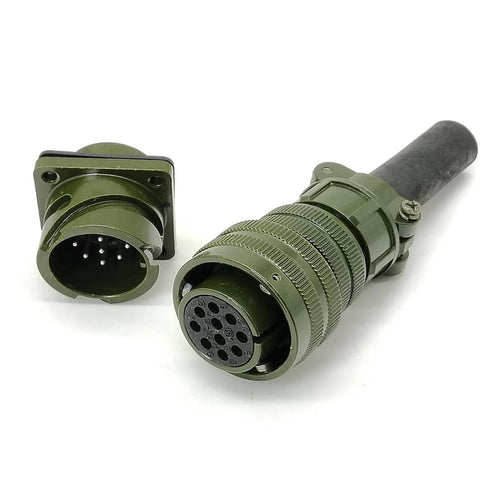

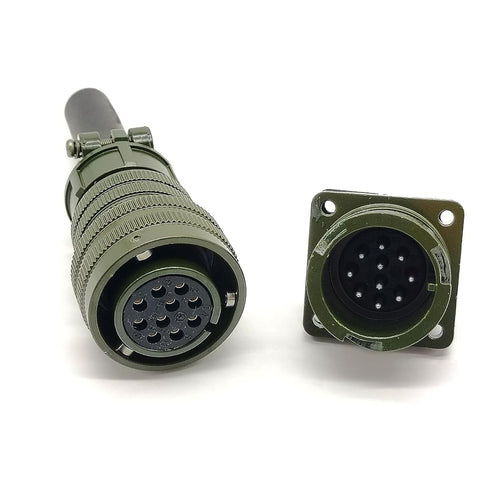

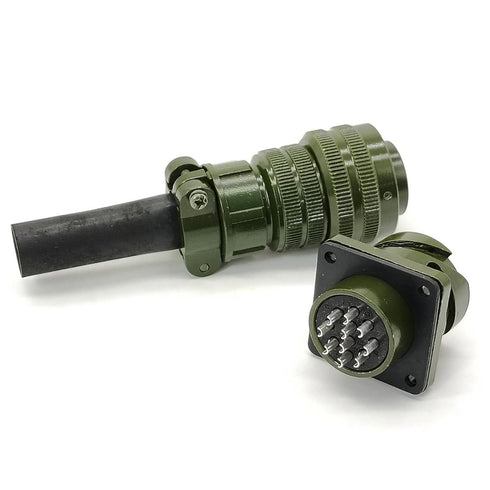

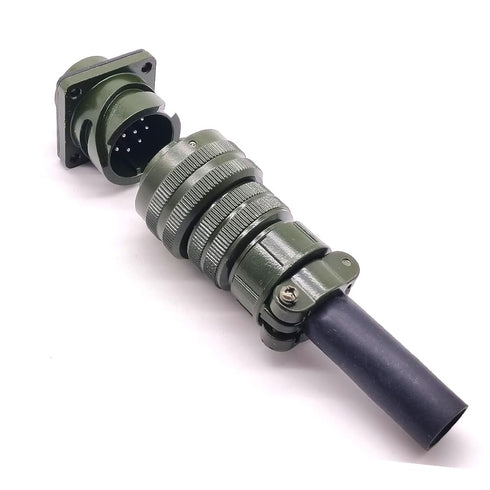

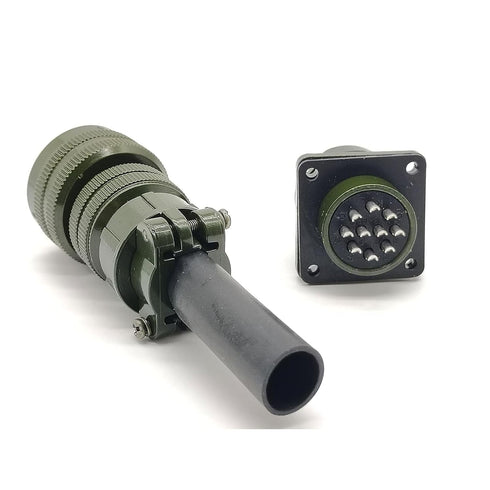

• ✅ MS3106A18-19 plug, MS3102A18-19 socket, straight, Cable plug, Box Mount Receptacle,18 shell, Male and female,10Pin;
• ✅ VG95234 reverse bayonet-lock connector series is based on the MIL-DTL-5015 standard, and shares many of the same insert arrangements, shell dimensions, supported contacts, and electrical performance ratings as MIL-DTL-5015.
• ✅ The VG95234 bayonet coupling mechanism provides easy mating and positive locking resistance to vibration, shock, and other connector decoupling forces in general duty and environmental interconnect systems such as railway cars, locomotives, industrial controls, factory robotics, mil vehicles, and other general electronic applications.
• ✅ Medium to heavy weight cylindrical; Durable,field-proven design; Environmental resistant;Resilient inserts; Bayonet connect;
• ✅ From the OEM Original Factory, the same quality with a much better price.
