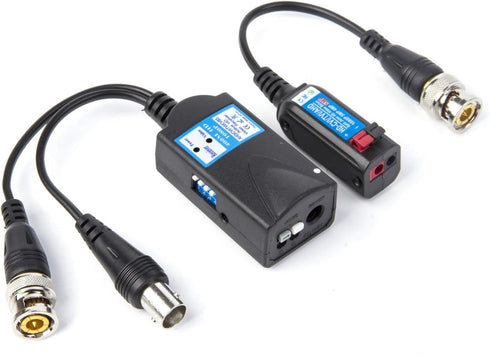

Mini CCTV BNC HD CVI/TVI/AHD/CVBS Active Video Balun Receiver Power Connector (1080P 400M) 5MP HD-CVI/TVI

Mini CCTV BNC HD CVI/TVI/AHD/CVBS HD Active Video Balun Receiver Power Connector (1080P 400M) 5MP HD-CVI/TVI/AHD Video Balun Transmitter 1 Pair

Mini CCTV BNC HD CVI/TVI/AHD/CVBS Active Video Balun Receiver Power Connector (1080P 400M) 5MP HD-CVI/TVI

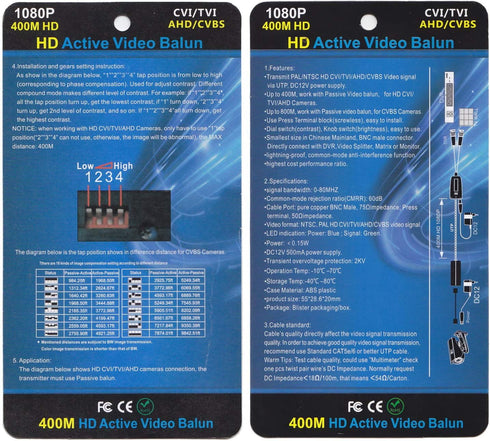

Specification: *Signal bandwidth: 0-80MHZ *Common-mode rejection ratio(CMRR):60dB Cable Port: pure copper BNC Male, 75?impedance: Press terminal, 50?impedance. Video format: NTSC,PAL HD CVI/TVI/AHD/CVBS video signal *LED indication: Power-Blue; Signal-Green *Power: <0.15W *Transient overvoltage protection: 2KV *Operation Temp: -10?-70? *Storage Temp: -40?-80? *Case Material: ABS plastic *Product size: 55x28.6x20mm Cable Standard: Cable’s quality directly affect the video signal transmission quality. In order to achieve good quality signal transmission, recommend use Standard CAT 5e/6 or better UTP cable. Warm Tip: The Cable quality, could use “Multimeter” check one pcs twist pair wire’s DC Impedance. Normally request DC Impedance<18?/100m, that means <54?/Carton. Dial Switch Dial Switch use for adjust contrast. Different compound mode makes different level of contrast. Level 1 (Lowest) : “1” “2” “3” “4” all the tap position turn up Level 2: “1” turn down, “2” “3” “4” turn up. Level 3: “1” “2” turn down, “3” “4” turn up. Level 4: “1” “2” “3” turn down, “4” turn up. Level 5 (Hightest): “1” “2” “3” “4” all the tap position turn down Notic: HD CVI/TVI/AHD Cameras only have to use “1” tap position. (“2” “3” “4” can not use, otherwise , the image will be abnormal), the Max distance: 400M

Key Features

• ✅ ?Video & Power Receiver?: Difference from other kinds of CCTV video balun transceiver, this 1 pair video balun is composed of 1x1080P 400M CCTV BNC HD CVI/TVI/AHD/CVBS HD Active Video Balun& Power Receiver and 1x 5MP HD-CVI/TVI/AHD Video Balun Transmitter. Smallest size in Chinese Mainland, BNC male connector, directly connect with DVR, video splitter, Matrix or Monitor.
• ✅ ?400M-800M Distance? : Up to 400M, work with Passive video balun, for HD CVI/TVI/AHD Cameras. Up to 800M, work with Passive video balun, for CVBS Cameras. In order to achieve high quality video signal transmission, we recommend you use Standard CAT5e/6 or better UTP cable.

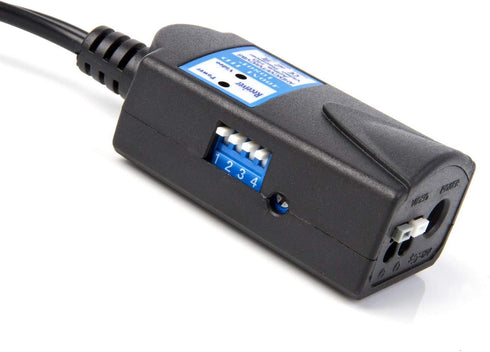

• ✅ ?Dial Switch?: Transmit PAL/NTSC HD CVI/TVI/AHD/CVBS Video signal via UTP, DC 12V power supply. Use Dial Switch to control contrast, use Knob switch to adjust brightness, use press Terminal block (screwless), easy to install.
• ✅ ?Video Format?: These video balun support NTSC, PAL HD CVI/TVI/AHD/CVBS video signal. LED indicate Power (Blue Light), Signal (Green Light). Lightning proof, common-mode anti interference function. High cost performance ratio!

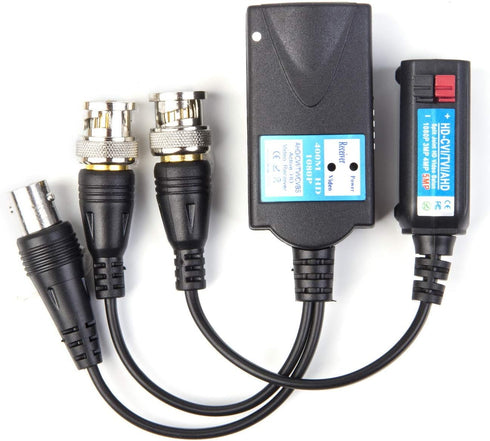

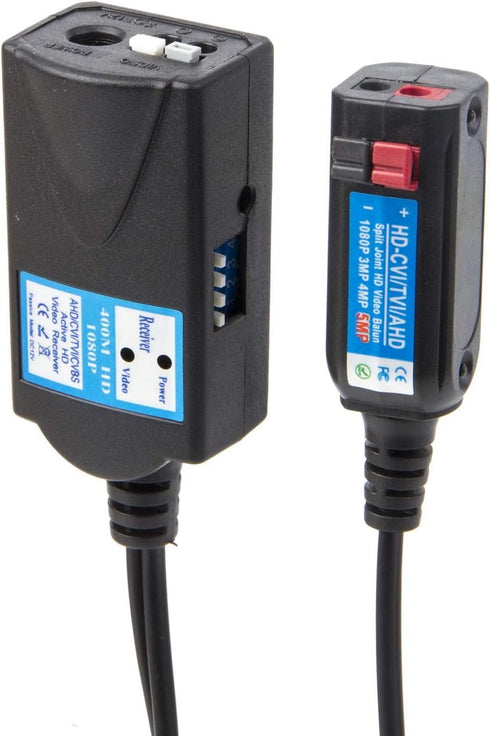

• ✅ ?What You Get?: 1x 1080P 400M CCTV BNC HD CVI/TVI/AHD/CVBS HD Active Video Balun& Power Receiver and 1x 5MP HD-CVI/TVI/AHD Video Balun Transmitter. +Installation Specification+1 Year Friendly of Warranty Service.
