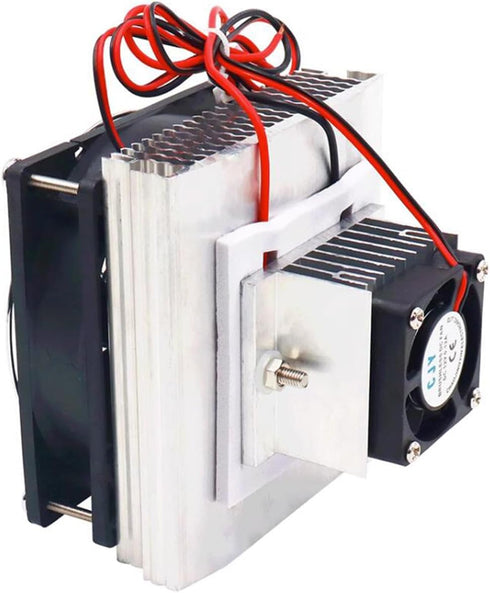

Mini Air Conditioner DC 12V DIY Thermoelectric Peltier Refrigeration Cooling System, Cooling Kit

Mini Air Conditioner DC 12V DIY Thermoelectric Peltier Refrigeration Cooling System Heat Sink Conduction Module Semiconductor Fridge Refrigeration Cooling System DIY Kit

Mini Air Conditioner DC 12V DIY Thermoelectric Peltier Refrigeration Cooling System, Cooling Kit

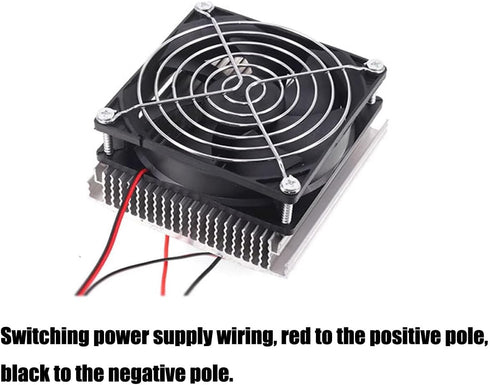

Product Description Feature: 1.Great DIY peltier kit for small space cooling in hot summer,used for plate cooling, test bench, pet bed cooling, such as chicken, little dog. 2.Save space,small size can be installed in anywhere,well made compact structure DIY peltier cooler kit,easy installation,long term use. 3.The DIY thermoelectric cooler with good cooling performance, No noise, no vibration, no refrigerant required. Specification: Material: Aluminum Power Supply: DC 12V Power Cnsumption: 72W(Under the condition of 12V voltage, the power can only reach about 70%.) Maximum Cooling Space:10L (300*180*200mm)volume. Size: Approx. 3.93 * 3.93 * 3.74inch How to install Wire: 1.Our DIY Peltier Cooler Kit Completely assembled. TEC1-12706 semiconductor chilling plate equipped with cool fan for better heat dissipation,so they should "run together". You don't need disassemble the device to sort the wires and don't need separate switch for each fan. 2.There are 6 wires,you can see 3 red wires(two fans+TEC1-12706 chilling plate),you can twist and connect them together,connect the12v battery positive electrode;3 black wires twist together connect the12v battery negative electrode. Note: 1.The cooling space of the DIY Thermoelectric Cooler should not exceed 10L (300*180*200mm) volume.The better the seal, the better the refrigeration effect. 2.The Peltier Cooler can only cooling the cabinet of 10L volume when the refrigerator is empty (the refrigerator does not put anything), and the cooling effect is about 5-6 degrees lower than normal temperature. 3.Under the condition of 12V voltage, the power can only reach about 70%. 4.The reverse connection of positive and negative electrodes will cause the cooling surface to be hot. 5.Please contact us in time if you have any questions, and we will deal with them actively. 6.If you want a good cooling effect, the box must have a good heat preservation effect. It is very important to choose a suitable box. 7.Can't be used as an air conditioner, you should know the conservation of energy. 8.The cooling effect is related to the power supply. Some power supplies are lower than the actual ones. It is suggested to use a larger one, such as 12V 10A. Package Included: One Pcs Peltier Cooler Kit:1: Fan net cover 2: Cooling fan 3: Radiator 4: Semiconductor refrigeration film 5: Thermal insulation gasket 6: Conductive cold film 7: Conductive cooling fan

Key Features

• ✅ ?Easy to install?An excellent DIY kit for electronic enthusiasts in semiconductor refrigeration applications,Completely assembled,you have no need to use your hands,save time. Positive red and negative black,easy to install.

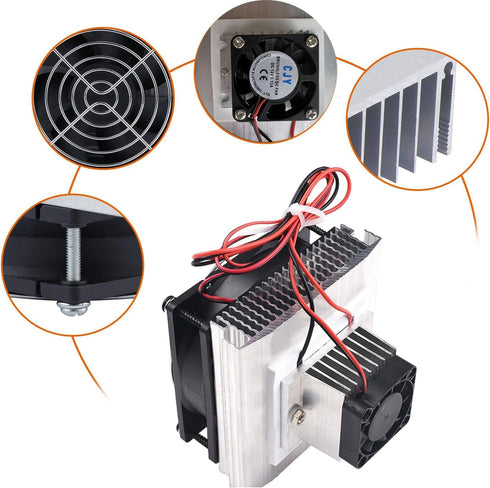

• ✅ ?High quality and Durable?The complete sealing structure isolates the moisture in the air,Using high-quality aluminum + TEC1-12706 semiconductor cooling plate(The gravity of the upgraded heat sink is increased by 20%, which makes the heat dissipation stronger and smaller.)durable.

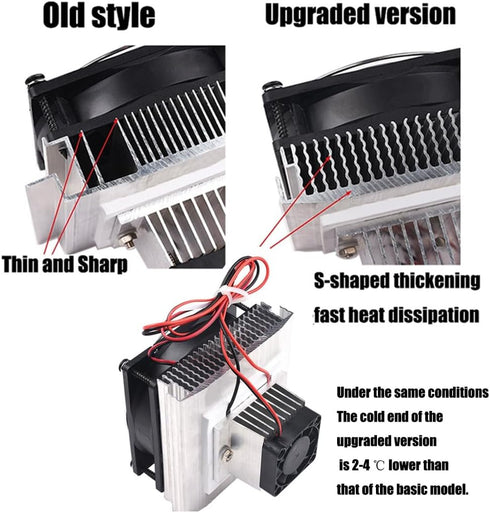

• ✅ ?High cooling efficiency? equipped with cool fan, The upgraded version of S-type thickened heat dissipation is faster,easily cooling down within a few minutes. no noise, no vibration, no refrigerant required.Power Supply: DC 12V.Max Power:72W.
• ✅ ? Best assistant for small space cooling?Suitable for computer heatsink ,small splace cooling. Also used for pet bed cooling,plate cooling,test bench,cardboard box, Pantry,wine cellar,ect

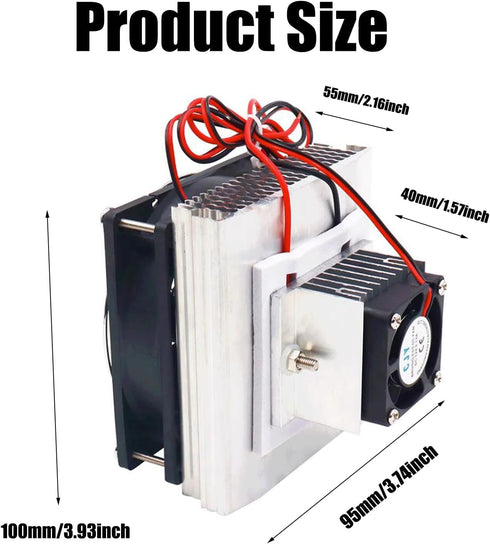

• ✅ ?Mini and Portable?Easy to install,Save space, can be installed anywhere,compact size (100 * 95 * 95mm / 3.93 * 3.74 * 3.74inch) DIY Peltier Kit include TEC1-12706 semiconductor cooler and other accessories.

✅ Product Dimensions: 3.94"L x 3.74"W x 3.74"H

✅ Color: Mini Air Conditioner
