MakerFocus ESP32 Development Board SX1262, 863 928MHz LoRaWAN, WiFi Bluetooth, Dual Core with 0.96" OLED Display

MakerFocus ESP32 Development Board SX1262 863 928MHz LoRaWAN WiFi Bluetooth Dual Core 240MHz Integrated CP2102 with 0.96" OLED Display and Antenna for Ar duino NodeMCU Intelligent Scenes

MakerFocus ESP32 Development Board SX1262, 863 928MHz LoRaWAN, WiFi Bluetooth, Dual Core with 0.96" OLED Display

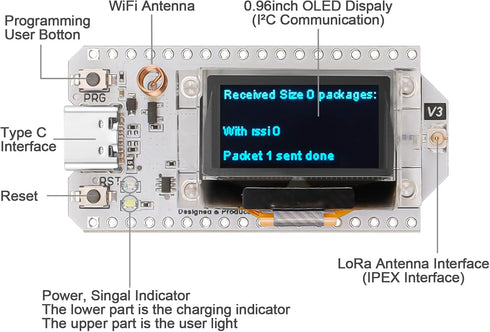

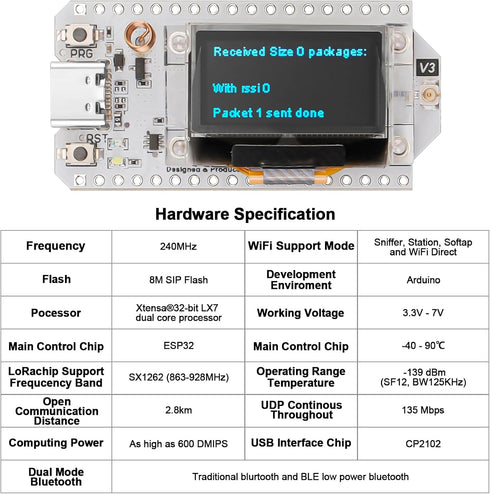

WiFi LoRa 32 (V3) is a classic IoT development board. It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading and IoT developers Features: 1. Microprocessor: ESP32-S3FN8 (Frequency up to 240 MHz) 2. SX1262 LoRa node chip 3. With good RF circuit design and low-power design 4. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding and other protection measures 5. Onboard SH1.25-2 battery interface, integrated lithium battery management system 6. Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use 7. Onboard 0.96-inch 128*64 dot matrix OLED display can be used to display debugging information, battery power and other information 8. Integrated CP2102 USB to serial port chip, convenient for program downloading and debugging information printing 9. Support the Ar duino development environment 10. We provide ESP32 + LoRaWAN protocol Ar duino library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol Parameter: Max. TX Power: 21 ± 1 dBm Max. Receiving sensitivity: -139 dBm Wi-Fi: 802.11 b/g/n, up to 150Mbps Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth mesh Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc. Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash Interface: Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header Pin Battery: 3.7V lithium battery power supply and charging Operating temperature: -20 ~ 70 ? Dimensions: 50.2 * 25.5* 10.2 mm Package Content: 1 * WiFi LoRa 32 1 * Power Cord 2 * Pin Header

Key Features

• ✅ Support Ar duino Development Environment: Support ESP32 + LoRaWAN protocol Ar duino library, this is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol
• ✅ Easy to Use: With good RF circuit design and low-power design, ESP32 development board is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading and IoT developers

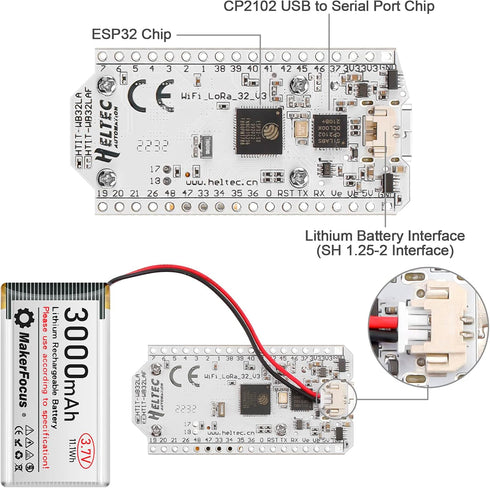

• ✅ Perfect Design: Integrated WiFi, LoRa, Bluetooth three network connections, onboard WiFi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing

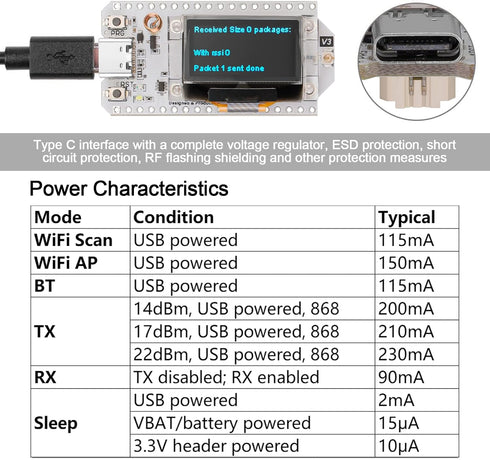

• ✅ Power Supply: Onboard SH1.25 battery interface, integrated lithium battery management system; You can also use the Type-C interface to power the development board, the interface with complete ESD protection, short circuit protection, RF shielding and other protection measures
• ✅ OLED Display: Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power and other information

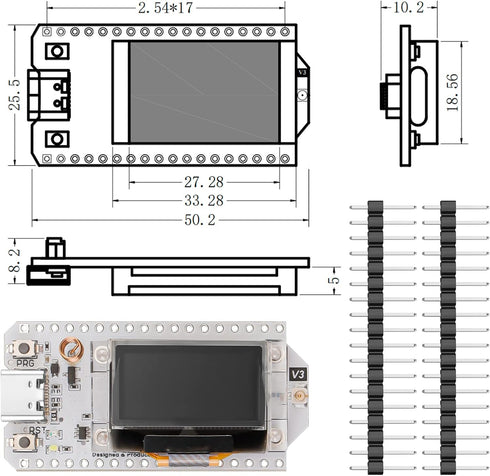

✅ Product Dimensions: 2.05 x 1 x 0.05 inches
