MakerFocus 16 12 I2C 5 4 3B+ 3B PWM Servo Motor Driver IIC Module Channel PWM Outputs Bit Resolution Compatible

MakerFocus PWM Servo Motor Driver IIC Module 16 Channel PWM Outputs 12 Bit Resolution I2C Compatible with Raspberry Pi 5 4 3B+ 3B Zero/Zero W/Zero WH and Jetson Nano

MakerFocus 16 12 I2C 5 4 3B+ 3B PWM Servo Motor Driver IIC Module Channel PWM Outputs Bit Resolution Compatible

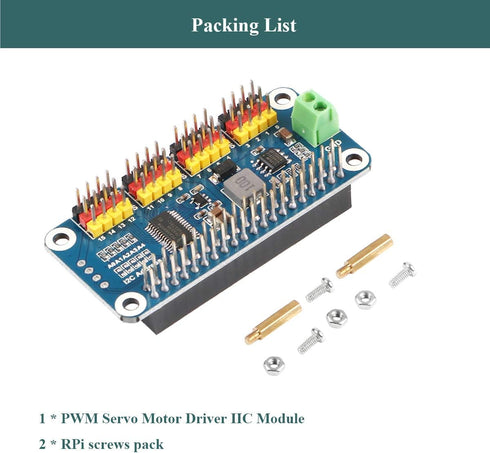

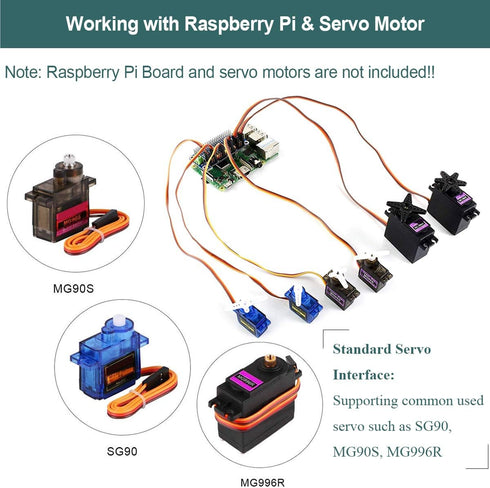

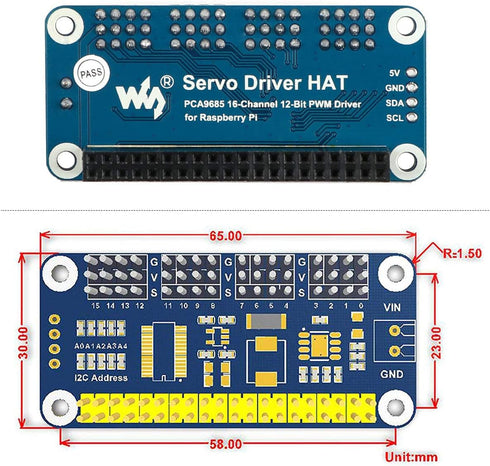

Features: Raspberry Pi connectivity, compatible with Raspberry Pi 4 3B+ 3B 2B+ 2B Zero/Zero W/Zero WH and Jetson Nano I2C controlled, using only 2 pins Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales) Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc Reserved I2C control pins, allows to work with other control boards Specifications: Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal) Servo voltage: 5V Logic voltage: 3.3V Driver: PCA9685 Control interface: I2C Dimension: 65mm x 30mm Mounting hole size: 3.0mm Package Including: 1 * PWM Servo Motor Driver IIC Module 2 * RPI Screws Pack

Brand: MakerFocus

motor, resolution, computers accessories, accessories computer, i2c, driver, pwm servo, pwm, bit, computer, motor driver, pwm outputs Electronics Computers & Accessories Computer Components Single Board Computers

Key Features

• ✓ Servo Motor Driver: You may have tried to control a robotic arm or a hexapod walker by using the Raspberry Pi, but finally get frustrated due to the limited number of PWM outputs and the jittering servo. Now you get a new option to bring your ideas to life, we prepare this useful Servo Driver Board for you

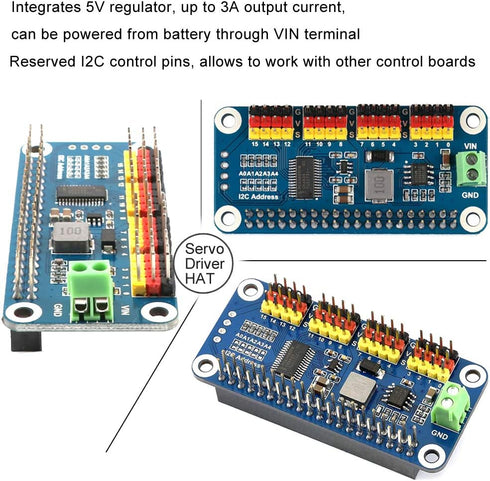

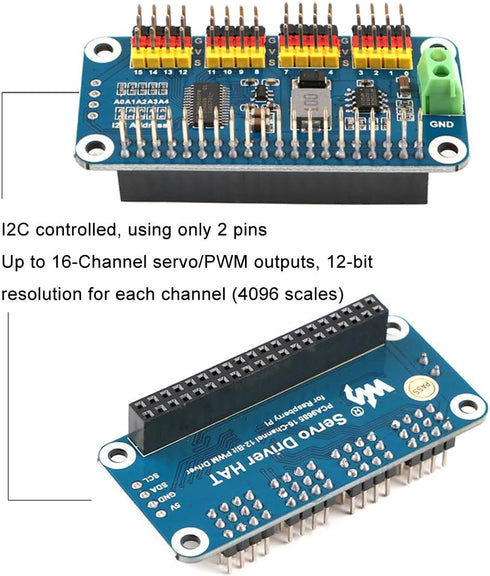

• ✓ I2C controlled, using only 2 pins; Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales); Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal

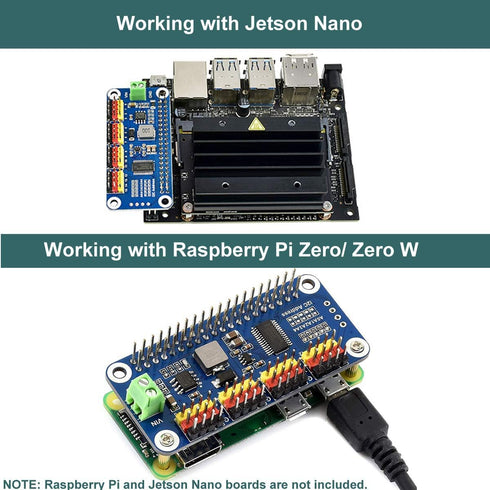

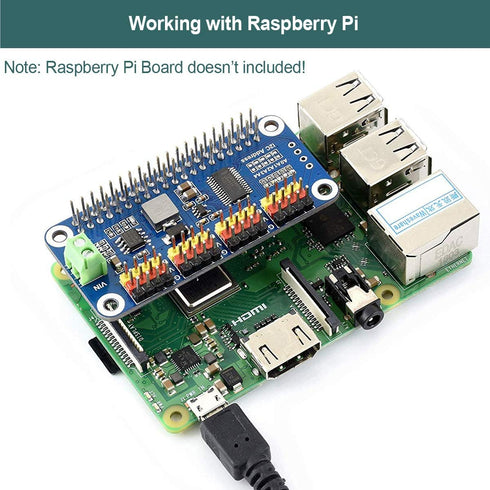

• ✓ Raspberry Pi connectivity, compatible with Raspberry Pi 4 3B+ 3B 2B+ 2B Zero/Zero W/Zero WH and Jetson Nano
• ✓ Reminder: (1)If you only connect 5V power supply to USB interface, servo cannot be driven; (2)You should connect higher power supply for higher-power servo; (3)Make sure servo are connected properly, otherwise they will not move
• ✓ Note: The Raspberry Pi and Servo in the photo are not included

Product Details

• ✓ Item Weight: 18.14 g
• ✓ Model Number: E73431418IB
• ✓ Color: PWM Servo Motor Driver IIC Module
